MSRIX

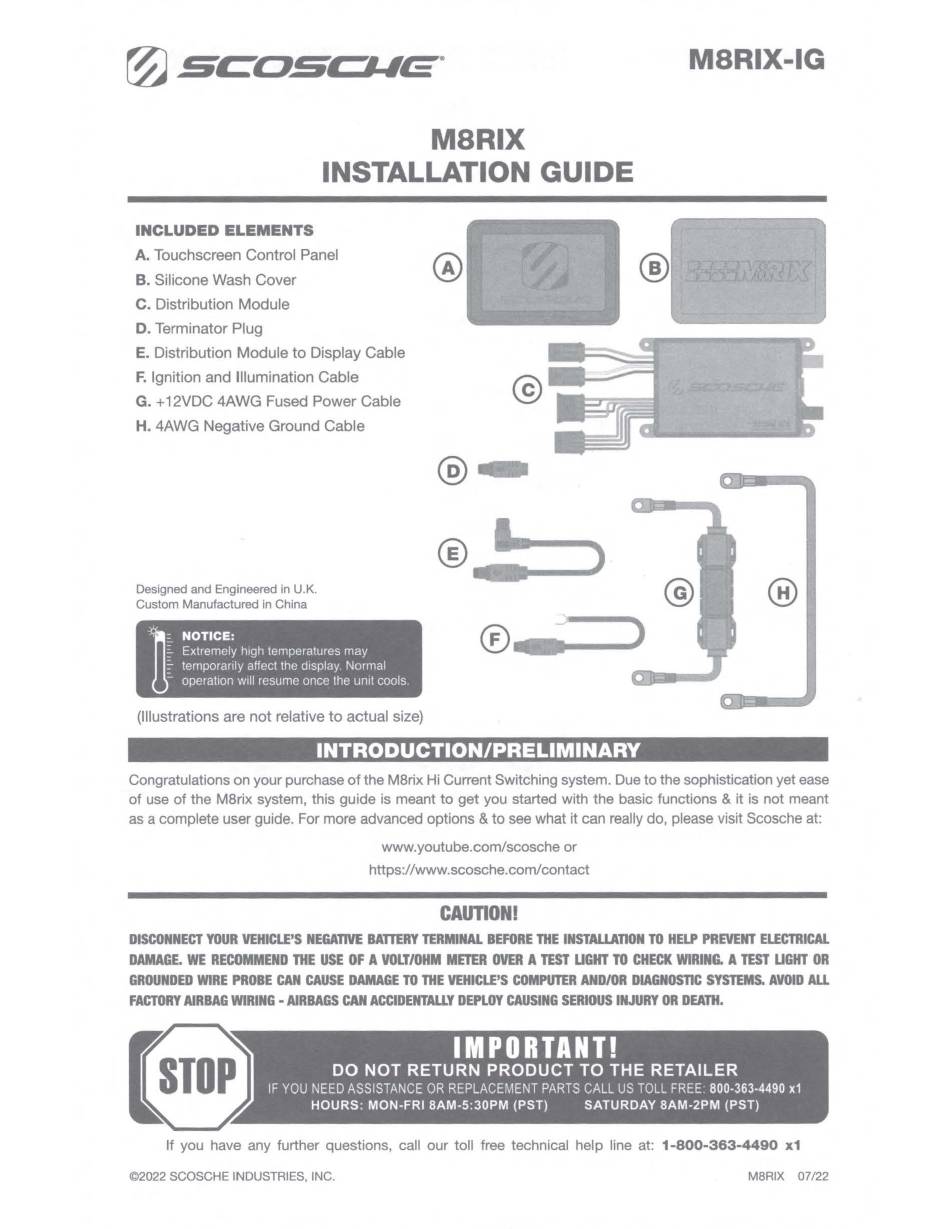

INSTALLATION GUIDE
INCLUDED ELEMENTS
A.
Touchscreen Control Panel
B. Silicone Wash Cover
C. Distribution Module
D.
Terminator Plug
E.
Distribution Module to Display Cable
F. Ignition and Illumination Cable
G.
+
12VDC 4AWG Fused Power Cable
H. 4AWG Negative Ground Cable
Designed and Engineered in U.K.
Custom Manufactured in China
n
=-
NOTICE:
;
Extremely high temperatures may
:- temporarily affect the display Normal
- operation will resume once the unit cools
(Illustrations are not relative to actual size)
©
@
®
~
· ---,
..
INTRODUCTION/PRELIMINARY
MSRIX-IG
@
Congratulations on your purchase of the
MBrix
Hi Current Switching system. Due to the sophistication yet ease
of use of the MBrix system, this guide is meant to get you started with the basic functions & it is not meant
as a complete user
guide.
For more advanced options & to see what it can really do, please visit Scosche at:
www.youtube.com/
scosche or
https://www.scosche.com/contact
CAUTION!
DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE INSTALLATION TO HELP PREVENT ELECTRICAL
DAMAGE. WE RECOMMEND THE USE OF A VOLT/OHM METER OVER A TEST UGHT TO CHECK WIRING. A TEST UGHT OR
GROUNDED WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S COMPUTER AND/OR DIAGNOSTIC SYSTEMS. AVOID ALL
FACTORY AIRBAG WIRING • AIRBAGS CAN ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY OR DEATH.
[s10
If you have any further questions, call our toll free technical help line
at:
1-800-363-4490 x1
©2022 SCOSCHE
INDUSTRIES, INC.
MBRIX
07/22
