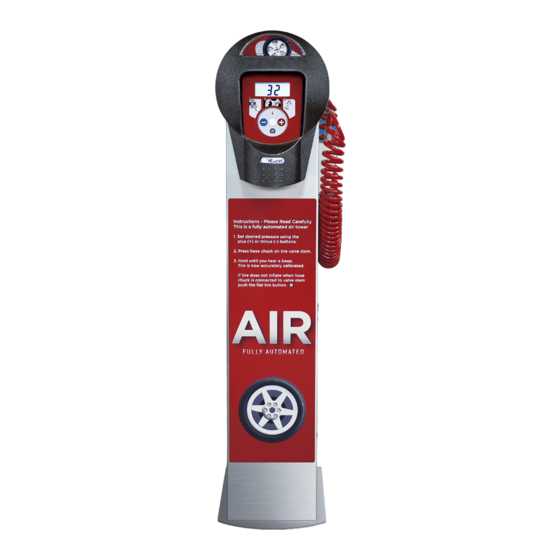

- Page 1 E cel SC05SS/VAC Manual Air/Vac Combo www.exceltiregauge.com (401) 732-8420 (401)384-6157 215 Jefferson Blvd, Warwick, RI 02888...
-
Page 2: Table Of Contents
E cel Table of Contents IMPORTANT SAFETY INFORMATION � � � � � � � � � � � � � � � � � � � �3 DIMENSIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �4 TECHNICAL SPECIFICATIONS �... -
Page 3: Important Safety Information
SC05SS/Vac Manual IMPORTANT SAFETY INFORMATION Read all instructions. Care must be taken as burns can occur from touching hot parts. Do not operate equipment with a damaged cord or if equipment has been dropped or damaged - utility must have been examined by a qualified service person. -
Page 4: Dimensions
E cel DIMENSIONS (401) 732-8420 www.exceltiregauge.com (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888... - Page 5 SC05SS/Vac Manual Air/VAC (401) 732-8420 www.exceltiregauge.com (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888...
-
Page 6: Technical Specifications
E cel TECHNICAL SPECIFICATIONS SC05SS SC05SS SC05SS HIGH FLOW NO COMPRESSOR ZW500D2-30/7Y(3) TRUCK COMPRESSOR Electrical 110 VAC +/- 10% 110 VAC +/- 10% 110 VAC +/- 10% Requirement Electrical 60Hz 60Hz 60Hz Frequency Electrical 3 AMPS 13 AMPS 21 AMPS Consumption Recommended 20 A - Class C... -
Page 7: Site Preparation
- The Excel equipment must be installed to meet all federal and local regulations, inclusive of electrical, zoning, and applicable ADA standards. Excel Tire Gauge, LLC. recommends units to be mounted on a 30” X 30” X 6” concrete pad constructed to not create a trip hazard and in compliance with ADA standards. - Page 8 E cel UNPACKING Immediately inspect your unit for concealed loss or damage, which occurred in transit. If any such condition is found contact the carrier’s agent and file a claim immediately. There is a specific time limit for requesting a claim. Excel strongly recommends that you save the original factory packaging.
- Page 9 SC05SS/Vac Manual ELECTRICAL CONNECTIONS & GROUNDING This product should be connected to a grounded, metallic, permanent wiring system or an equipment grounding terminal lead on the product. Each air tower should have a dedicated GFCI protected branch circuit as below. Improperly sized circuits risk compressor damage.
- Page 10 E cel BASE PLATE DIMENSIONS SECURING THE CABINET The construction of a concrete base is recommended whenever possible. The following schematic drawing shows the correct position of the bolt holes and the distance between them. Water Option: Water ball valve must be installed. Use 1/4” water pipe/tubing. (401) 732-8420 www.exceltiregauge.com 10 10...
- Page 11 SC05SS/Vac Manual SC05SS BASE PLATE PREFERRED ANCHORS: 1/2” WEDGE ANCHOR BOLTS RECOMMENDED ANCHORS: Red Head Model # 11020 Internet # 100151116 Store Sku # 703131 1/2 in. x 4-1/4 in. Steel Hex-Nut-Head Concrete Wedge Anchors (10-Pack) Red Head Model # 11020 10-Pack 1/2 in.
-
Page 12: Installation
E cel INSTALLATION WEDGE ANCHOR INSTALLATION INSTRUCTIONS (401) 732-8420 www.exceltiregauge.com 12 12 (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888... - Page 13 SC05SS/Vac Manual TYPICAL INSTALLATION Remove lower side access panel with a T27 Tamperproof security bit. If unit is equipped with a vault, remove coin box and vault base plate to expose the two front 3/4” mounting holes. Place unit of template in its intended location. Mark the locations of the four 3/4”...
-
Page 14: Components
E cel COMPONENTS 50000372 Digital Control Gauge IASSET P100 SR50 I20A Quick Connect Electronic Solid State Relay 20amp Terminal Block Set Relief Valve BREAKER 1 HP unit I32A 32amp BREAKER HO unit (Truck) (401) 732-8420 www.exceltiregauge.com 14 14 (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888... - Page 15 SC05SS/Vac Manual 02-90515 29050900 3CC12 GSE Compressor Excel Compressor Compressor Start Capacitor Isolation Mount (401) 732-8420 www.exceltiregauge.com 15 15 (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888...
- Page 16 E cel OSF 1310 Heater 400152 SCXFAN Heater Heater Thermostat (401) 732-8420 www.exceltiregauge.com 16 16 (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888...
- Page 17 SC05SS/Vac Manual EXHAUST FAN OPTION UF80A12-BWHR 6UED4 Exhaust Fan Fan Switch (401) 732-8420 www.exceltiregauge.com 17 17 (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888...
- Page 18 E cel VAL6336 Excel Vac Motor VAC10HOSE156 15 FT Vacuum Hose VAC10CLAW Vac Claw with Adapter VAC FILTER KIT Cloth Filter, Sping and Mold Housing (401) 732-8420 www.exceltiregauge.com 18 18 (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888...
-
Page 19: Zw500D2 Specifications
SC05SS/Vac Manual ZW500D2 SPECIFICATIONS High Flow Compressor Open Flow 4.4 CFM (125 LPM) Max. Pressure 100 PSI (7 bar) Input Power/Current <600 W / <5.4A Voltage/Frequency 115V / 60 HZ Sound Level 68< dbA (@ 1met) Termal Protection 257<5% °F / (125<5% °C) -
Page 20: Hi Flow Truck Compressor
E cel HI FLOW TRUCK COMPRESSOR SPECIFICATION 6.40 CFM @ 40 PSI 5.30 CFM @ 90 PSI - Ultra Quiet & Oil-Free Air Compressor Pump/Motor is designed to be one of the quietest in the industry having only 70 decibels of sound. - The Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. - Page 21 SC05SS/Vac Manual High Flow Truck Compressor (401) 732-8420 www.exceltiregauge.com 21 21 (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888...
-
Page 22: Electronic Head
E cel ELECTRONIC HEAD Exploded View Cast Steel Face Plate Description Part Number Digital Control Gauge 50000372 Keypad 5000210 Buzzer 5000324 Solenoid Valve 5000380 Brass Pneumatic Fittings – UNF UBF 5/8 Head Transformer 1300011 Electronic Board 5000201 Glass LCD Window 110421 SC05 Cast Steel Face Plate 00401181... -
Page 23: Operating Instructions
Using the “+” or “-“button, preset desired pressure. Connect hose chuck to the tire stem. If tire pressure is greater than 3 PSI the Excel Tire Gauge will read and display the actual tire pressure, turn on compressor, inflate or deflate tire for a few seconds, close valves, read again, and display actual tire pressure, inflate and deflate for a few seconds, repeating this procedure until the preset pressure is reached. -
Page 24: Wiring Diagrams
E cel WIRING DIAGRAMS (401) 732-8420 www.exceltiregauge.com (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888... - Page 25 SC05SS/Vac Manual BOARD FIRMWARE VERSION 5.0.4 AND ABOVE BOARD WIRE CONNECTOR NUMBER Red - Buzzer - Positive Black - Buzzer - Negative Red - Transformer CN10 Red - Transformer CN10 Blue - Valve - Common Gray - Valve - Relief...
-
Page 26: Troubleshooting
E cel TROUBLESHOOTING No Display Check Power Check power Replace (breaker) in the in the unit Transformer store Breaker Err1 Replace Board Err2 Replace Replace Solenoid Valve Board Err3 Check for leaks Replace Hose Replace Replace Replace Replace or it takes too and replace Filters Check Valve... -
Page 27: Warranty
SC05SS/Vac Manual WARRANTY All parts, excluding hose and hose chucks, have one year limited warranty from date of purchase (Outside labor is not covered). Excel requires that the customer calls into our Technical Support Dept. to toubleshoot the problem first before shipping any parts back to us under warranty. -
Page 28: Appendix A - Credit Card Only Vacuum
E cel APPENDIX A CREDIT CARD ONLY VACUUM ATTACHMENT (401) 732-8420 www.exceltiregauge.com (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888... - Page 29 SC05SS/Vac Manual DIMENSIONS (401) 732-8420 www.exceltiregauge.com (401) 384-6157 215 Jefferson Blvd, Warwick, RI 02888...
- Page 30 E cel CREDIT CARD OPERATING INSTRUCTIONS If the unit requires payment, swipe or insert credit card before selecting desired product. For free SC05SS air and pay vacuum, the vacuum will automatically activate upon swipe or insertion of a credit card. (401) 732-8420 www.exceltiregauge.com (401) 384-6157...
