Summary of Contents for Ascentic AH4

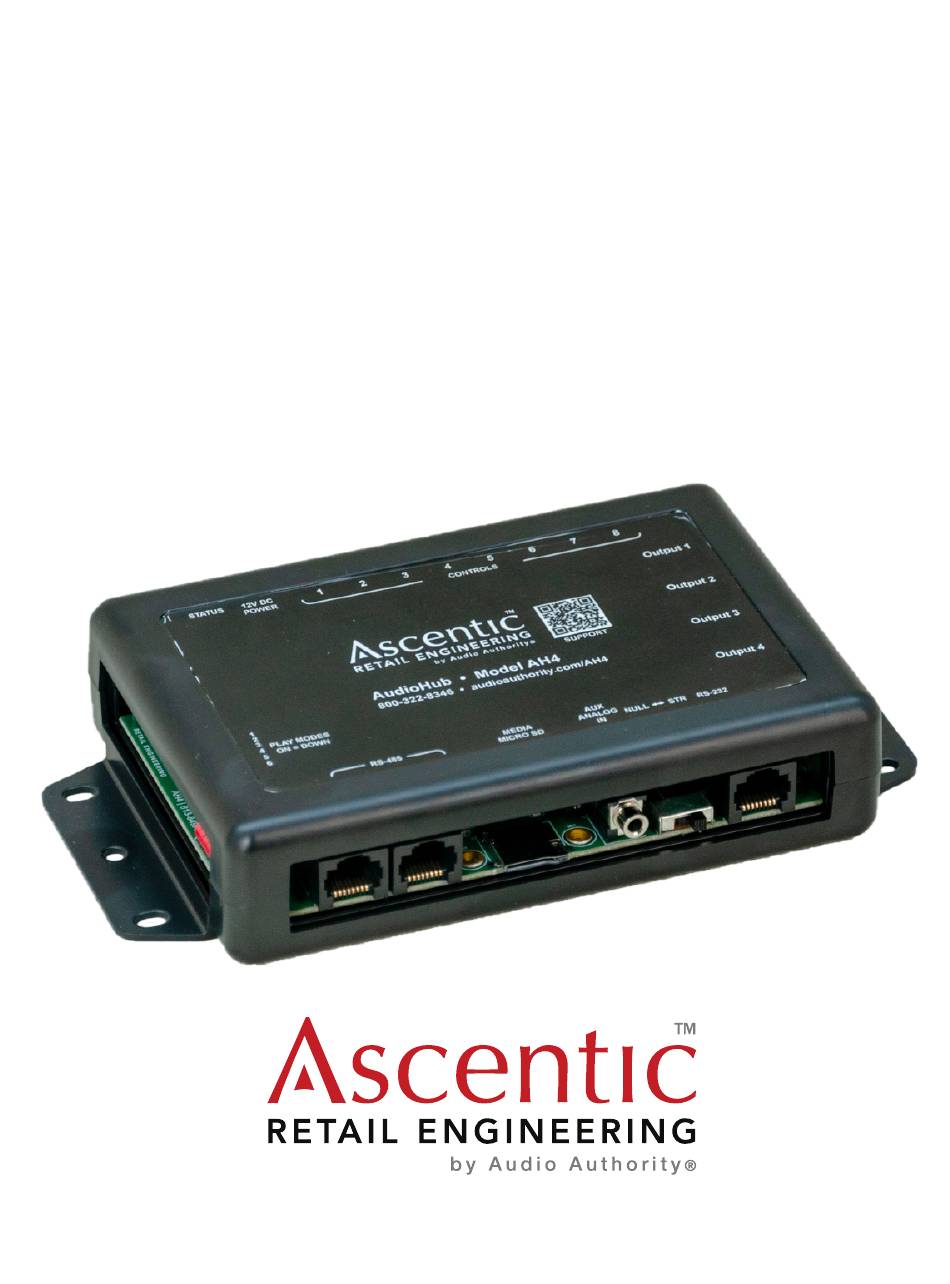

- Page 1 User Manual Model AH4 AudioHub Player and Controller Image Angle 1 View: Centered...
- Page 2 Introduction The AH4 plays MP3, FLAC, OGG, and WAV files for high fidelity audio demonstrations of headphones, speaker docks, and sound bars. Four audio outputs may be played and adjusted individually or together (Toslink® digital, analog, and HDMI-ARC outputs). Front View Image:...
- Page 3 Communication The Model AH4 AudioHub Player and Controller has the default device ID 252. It can send and receive serial commands via RS-485 at 57600 Baud, 8-N-1, and half-duplex; and via RS-232 at 115200 Baud, 8-N-1, and full-duplex. Both configuration ports utilize a modular RJ-45 jack with the following pinouts:...
- Page 4 Model AH4 with Subwoofers and Speakers This display uses high fidelity sound to attract and entertain customers. It leverages the Model AH4 module’s four audio output options to demonstrate different products. All high fidelity sound outputs can play digital, analog, and/or Dolby...
- Page 5 MicroSD is removed. Firmware Update Process The Model AH4 is updatable through the MicroSD port. Below are the steps outlining the firmware update process: Copy new firmware “.FWU” file onto a blank MicroSD Card (FAT) 2.
- Page 6 Maximum Load Current: 110 mA Maximum Current Output: 1.5 A @ 12.0VDC Mechanical Details Case Type: Ascentic universal case, molded ABS Case Dimensions: W x L x H 7.5 x 4.1 x 1.5 in 190 x 104 x 38 mm Mounting Locations: molded flanges Centerline Holes: 2x 0.165”...
- Page 7 752-228 20220124 2048 Mercer Road, Lexington, KY 40511-1071 USA 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 SUPPORT support@audioauthority.com • www.audioauthority.com...
