Wellav CMP310HC User Manual

Media platform
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

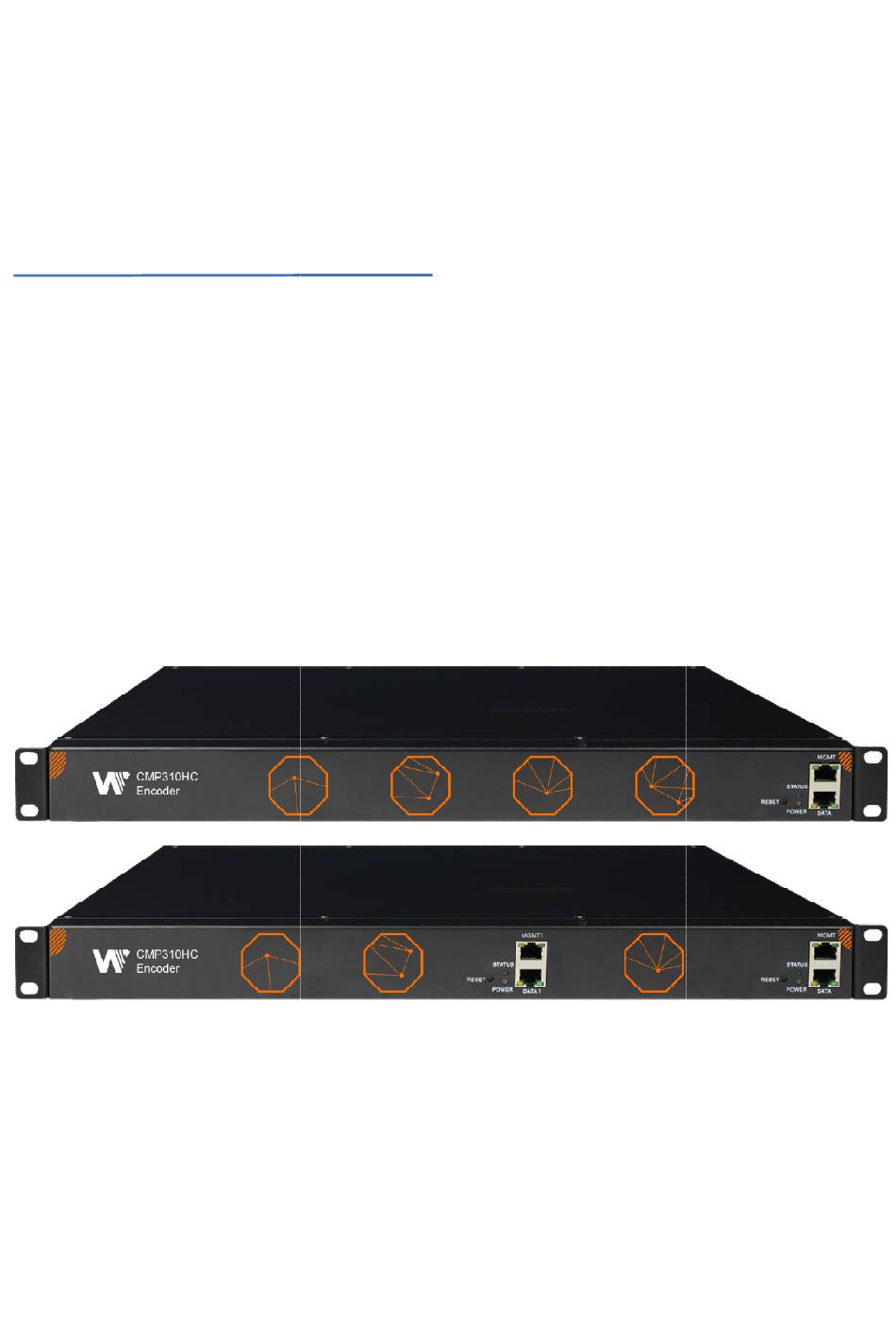

CMP310HC
CMP310HC
Media Platform
User Guide
V1.0-W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMP310HC and is the answer not in the manual?

Questions and answers

Related Manuals for Wellav CMP310HC

Summary of Contents for Wellav CMP310HC

  • Page 1 CMP310HC CMP310HC Media Platform User Guide V1.0-W...
  • Page 2 CMP310HC User Guide Revision History Date Version Description Author 2019-09-02 First Draft This guide contains some symbols to call your attention. The DANGER symbol calls your attention to a situation that, if ignored, may cause DANGER physical harm to the user.
  • Page 3 CMP310HC User Guide Safety Instructions  Read these instructions Keep these instructions   Follow all instructions  Heed all warnings  Do not use this unit near water.  Only use a damp cloth to clean chassis  Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat ...

  • Page 4: Table Of Contents

    CMP310HC User Guide Content 1 Chassis Overview .......................... 6 1.1 Front Panel .......................... 6 1.2 Back Panel .......................... 6 2 Installation ............................. 7 2.1 Rack Installation ........................7 2.2 AC Power Connection ......................8 3 Web GUI ............................8 3.1 Web GUI Overview ......................8 3.1.1 Connect the Management Port ..................
  • Page 5 CMP310HC User Guide Appendix A - Abbreviations ...................... 21 Appendix B- Warranty ......................22 Appendix C- After-Sales Support ..................... 23...

  • Page 6: Chassis Overview

    1 Chassis 1 Chassis Overview 1.1 Front Panel CMP310HC series is a brand of is a brand of multi-channel HD encoder which is specially designed for Hotel specially designed for Hotel television system with its high integration and cost effective.

  • Page 7: Installation

    2 Installation 2.1 Rack Installation The CMP310HC is designed to be mounted in a standard 19” rack. It takes 1RU of rack space. To install it into a rack, please use the following steps: 1. Determine the desired position in the rack for the CMP310HC. Make sure that the air intake on the top of the unit and the exhausts on the back of the unit will not be blocked.

  • Page 8: Ac Power Connection

    Please only use the supplied 3-prong power connector or one with equal specifications. NEVER tamper with or remove the grounding pin. This could cause damage to CMP310HC, personnel, or property. Make sure the power outlet is switched off before plug or unplug the power cable from the panel of CMP310HC.

  • Page 9: Log Into The Web Gui

    CMP310HC User Guide 3.1.2 Log into the Web GUI Enter the CMP310HC baseboard IP address into the URL field of any recommended Web browsers (IE8 or above, Firefox, and Google Chrome) to access the login page. The default user name and...

  • Page 10: Status

    CMP310HC User Guide 3.2 Status 3.2.1 Device Status After a successful login, we will always enter the status overview page, where we can check the device status of: a) Module list: shows the embedded encode module. b) Device host operating status in Device status options and the Device information option.

  • Page 11: Device Information

    CMP310HC User Guide We use only IE, Firefox and Chrome for testing procedures. If use other browsers, like Microsoft Edge, you may encounter incomplete UI layouts, and configure setting in these browsers may lead to errors. 3.2.2 Device Information Device Information page shows the firmware version, software version, and hardware version of baseboard.
  • Page 12 CMP310HC User Guide To manage Log, click Open. Turn on Enable Real-time Log switch to see the real-time log message and message level below.  Click to clear all log messages on the screen.  Click to delete all log information.

  • Page 13: Password

    CMP310HC User Guide  Click to filter desired log message. 3.3.3 Password Reset the login password in this page. Enter the original password first to reset your password. After reset, need to login again. 3.4 Admin Click admin to change password or log out.

  • Page 14: Module List

    CMP310HC User Guide 3.5 Module List CE-HDMI-R01 is a 4-channel HDMI input encoder which support H.264 SD/HD encoding. The module supports MPEG1-L2, AAC and AC3 audio encoding. 3.5.1 Status Choose the module, it will automatically show the module’s status, including total bitrate, effective bitrate, input/output video resolution, signal status and encryption status.

  • Page 15: Settings

    CMP310HC User Guide 3.5.2 Settings Enable HDCP Test Mode if the video content was protected by HDCP. Click All Configurable Parameters to see all parameters you can modify and check what specific parameters you want to set and see. Click the Apply button in the right side to make the change take effect.
  • Page 16 CMP310HC User Guide 320,160 the input resolution 1080,720,576,480, Vertical Pixels 288,240,180,120 The output framerate cannot be set higher than Framerate 60,50,30,25,24 the input framerate, and the highest output framerate is 30. Scan Type Progressive Video 600~12000 Bitrate(Kbps) GOP Size 1~60...

  • Page 17: Osd Settings

    CMP310HC User Guide Program Name Length is 1~31 Provider Name Length is 1~31 Video PID 32~8190 Audio PID 32~8190 PCR PID 32~8190 PMT PID 32~8190 Shelter Parameters Range Shelter Enable/Disable 0~1920 (Dual) 0~1080 (Dual) Width 2~1920 (Dual) Height 2~1080 (Dual)
  • Page 18 CMP310HC User Guide Enable Switch to set logo parameters. LOGO Parameter Range LOGO Parameter Range Position X 0~1920 (Dual) Position Y 0~1080 (Dual) Size width 2~1920 (Dual) Size Height 2~1080 (Dual)  Subtitle setting: enable Switch to set logo parameters.
  • Page 19 CMP310HC User Guide Subtitle Parameter Range Subtitle Parameter Range Bottom/Top/Middle -200~200(dual) Position Position Offset Size 10~1920 (Dual) Front Size 0~100 Display Interval 1~30 Subtitle Length is 0~512  QR Code setting: QR Code setting is the same with LOGO setting.

  • Page 20: Ip Output

    CMP310HC User Guide 3.5.4 IP Output Configure IP output parameters on this page. After setting, click Apply to make changes take effect.  Enable: enable this channel.  Destination IP Address and Destination Port: Using for multicast IP addresses or unicast IP addresses and ports.

  • Page 21: Appendices

    CMP310HC User Guide 4 Appendices Appendix A - Abbreviations Advanced Audio Coding Also known as Dolby Digital AC-3 Audio Video Bouquet Association Table Bit Error Ratio Bit Rate The rate at which the compressed bit stream is delivered British Naval Connector...
  • Page 22 CMP310HC User Guide MPTS Multi-program Transport Stream Network Information Table Orthogonal Frequency-Division Multiplexing OFDM Program Association Table Program Clock Reference Packet Identifier Program Map Table Program Specific Information Power Supply Unit Quadrature Amplitude Modulation QPSK Quadrature Phase-Shift Keying Standard Definition...
  • Page 23 Please contact our sales/regional representatives for any help, product information, and troubleshooting. Returning Products for Service The CMP310HC is a delicate piece of equipment and needs to be serviced and repaired by the manufacturer. In order to expedite this process please carefully read the following items. ...

This manual is also suitable for:

Cmp310hc-4v1Cmp310hc-8v1Cmp310hc-8Cmp310hc-16Cmp310hc-24
