Summary of Contents for SUTO A699 3302

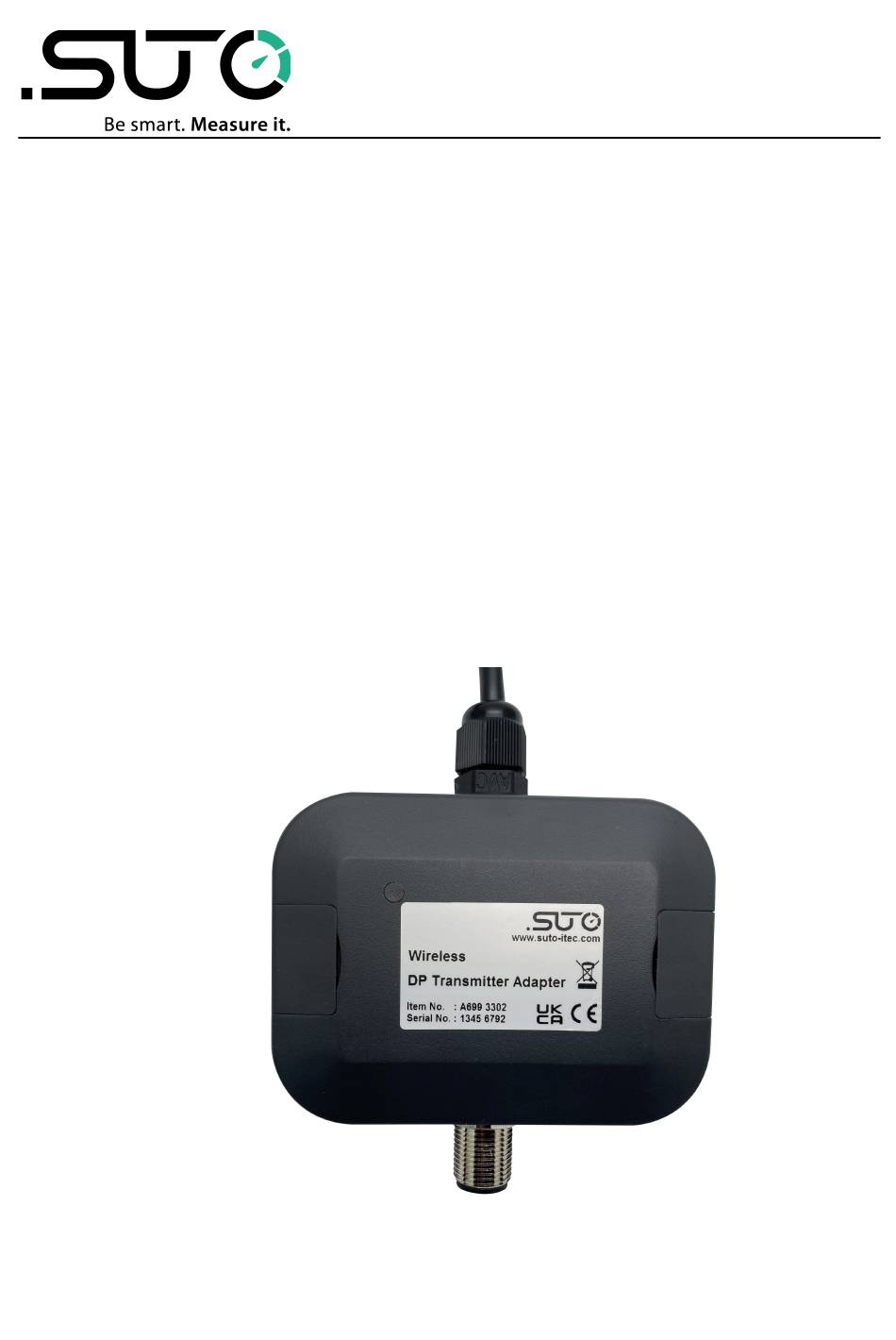

- Page 1 English Instruction and Operation Manual Wireless DP Transmitter Adapter...
- Page 2 The device is designed exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
Table of Contents 1 Safety instructions..............4 2 Registered trademarks..............5 3 RF Exposure Information and Statement........6 4 Application.................7 5 Features..................7 6 Technical Data ................7 7 Contents of Package..............8 8 Installation.................9 8.1 Add the DP Adapter to Existing System........10 8.2 Connect the DP Adapter to External Power Supply....10 9 Use the S4C-DP App..............11 9.1 Download and Install............11 9.2 Get Service Partner Permission..........11... -
Page 4: Safety Instructions
1 Safety instructions 1 Safety instructions Please check if this instruction manual accords with the product type. Please observe all notes and instructions indicated in this manual. It contains essential information which have to be observed before and during installation, operation and maintenance. -
Page 5: Registered Trademarks
• Avoid direct UV and solar radiation during storage. • For the storage the humidity must be <90%, no condensation. 2 Registered trademarks SUTO ® Registered trademark of SUTO iTEC MODBUS ® Registered trademark of the Modbus Organization, Hopkinton, USA Android™,... -
Page 6: Rf Exposure Information And Statement
3 RF Exposure Information and Statement 3 RF Exposure Information and Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. -
Page 7: Application
4 Application The Wireless DP Transmitter Adapter provides a wireless interface between the mobile phone App S4C-DP and the SUTO Dew Point Transmitters of the S211, S215, and S220. With this DP Adapter, you can manage the Dew Point Transmitter settings through the free mobile phone App S4C-DP, including: •... -
Page 8: Contents Of Package
Qty Description Ordering No. Wireless DP Transmitter Adapter with M12 connection cable, and a 100...240 VAC/24 VDC A699 3302 power supply (including 3 plug adapters of US, EU and UK types) with 1.5 m cable Instruction manual No P/N... -
Page 9: Installation
8 Installation 8 Installation The DP Adapter supports all models of the S211, S215, and S220, as shown in the table below. Dew Point Ordering No. Model Transmitter S699 1211 2-wire analog + SDI S699 2211 3-wire analog + SDI S211 S699 3211 3-wire analog + Modbus/RTU... -
Page 10: Add The Dp Adapter To Existing System
8 Installation 8.1 Add the DP Adapter to Existing System 1. Connect the dew point transmitter with the M12 connector on the DP Adapter. 2. Connect the DP Adapter to your existing power supply by the M12 cable. 8.2 Connect the DP Adapter to External Power Supply 1. -
Page 11: Use The S4C-Dp App
Dew Point Transmitters easily on site. 9.1 Download and Install The Android version App is available on SUTO website, and it is free for downloading and using. Give all permissions required by the App during the installation. -
Page 12: Enable The Configuration
9 Use the S4C-DP App ATTENTION! After scanning the QR code or entering the license key, you can obtain the operation rights of all models of S211, S215 and S220 Dew Point Transmitters. When configuring subsequent Dew Point Transmitters, you do not need to scan codes or enter keys. - Page 13 9 Use the S4C-DP App Wireless DP Transmitter Adapter...
-
Page 14: S4C-Dp App Instructions
10 S4C-DP App Instructions 10 S4C-DP App Instructions 10.1 Features • Supports Android 7.0 or above versions. • Designed for service people to check sensor readings and change settings. • Multiple languages supported: English, German, Chinese, and French. 10.2 Menus On the startup page of S4C-DP App, click on a certain dew point transmitter to enter the main screen. -
Page 15: Online
10 S4C-DP App Instructions 10.3 Online The Online menu enables you to view the online measurement values, including dew point, humidity, temperature, and pressure. 10.4 Settings The Settings menu enables you to change settings of the connected dew point transmitter. Be careful when you change the settings because they might affect the accuracy or the overall performance of the dew point transmitter. -
Page 16: Sensor Display Channel
10 S4C-DP App Instructions - ppmv - g/kg ℃ ℉ Td atm. / Td atm. (depends on the temperature unit) Reference pressure When no pressure sensor is integrated, it is 1013 hPa by default in the dew point transmitter. The unit hPa is unable to change. When the pressure sensor is integrated, the field is grey and unable to change. -
Page 17: Output Settings
10 S4C-DP App Instructions 10.4.3 Output Settings Scaling Settings Select Channel - Dew point - Alternative moisture unit 4 mA Set a value corresponding to the 4 mA. 20 mA Set a value corresponding to the 20 mA. Modbus/RTU Settings (Optional) Device Address Last two digits of serial number Baud Rate... -
Page 18: One-Point Calibration Dew Point
10 S4C-DP App Instructions 10.5.2 One-point Calibration Dew Point The dew point unit here is related to the temperature unit settings in section 10.4.1. Parameter Explanation Measured Dew Point The measurement dew point value. Reference Dew Point Enter the reference dew point value to calibrate the measured dew point. -
Page 19: Language
10 S4C-DP App Instructions 10.6.2 Language Click Language to select the language that the App shows. 10.6.3 App Version Show the current S4C-DP App version. 11 Maintenance To clean the DP Adapter, wipe the outer surface only with a wet cloth. ATTENTION! Do not use isopropyl alcohol to clean the service kit! 12 Disposal or Waste... - Page 20 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Grißheimer Weg 21 Room 10, 6/F, Block B, Cambridge Plaza D-79423 Heitersheim 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7634 50488 00 Tel: +852 2328 9782 Email: sales@suto-itec.com...
