FrSky FLVS ADV Instruction Manual

Introduction

Thank you for purchasing FrSky Li-Po Voltage Sensor. It is designed for FrSky Smart Port enabled system, and can
measure cell Voltages as connected. There're two versions, one with a screen and the other without it. In order to
fully enjoy the benefit of it, please read the instruction manual carefully and set up the device as described below.
Note: All instructions, warranties and other collateral documents are subject to change at the sole
discretion of FrSky Electronic Co., Ltd. For further information, please visit www.frsky-rc.com and
click the support tab for this product.

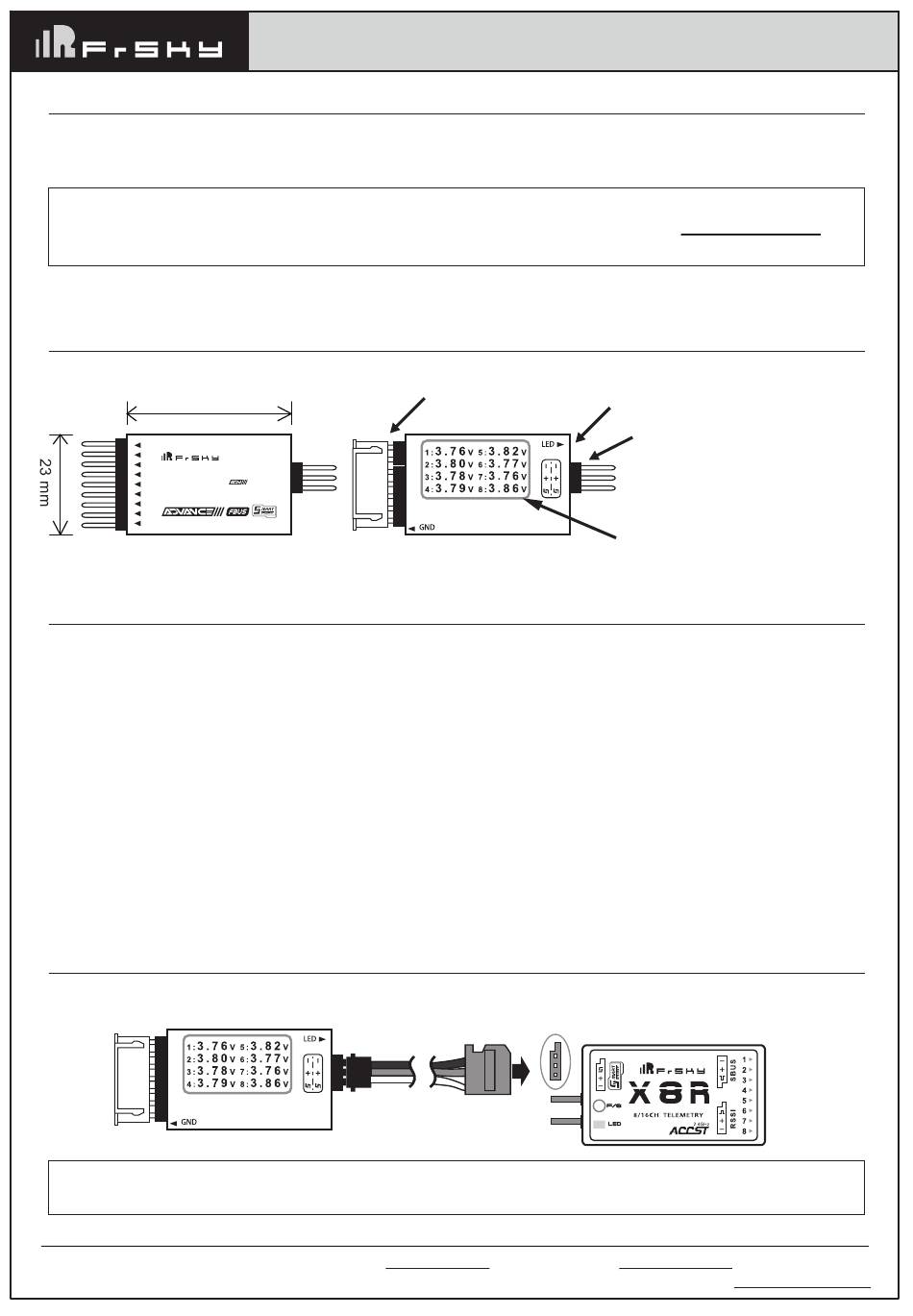

Overview

35 mm
P-
1S
2S
3S FLVS
4S
LI-PO VOLTAGE SENSOR
5S
6S
7S
8S

Specifications

• Dimension (L*W*H) :
- 52*23.5*9.5mm (with screen)
- 52*23.5*5.7mm (without screen)
• Weight:
- 7.5g (with screen)
- 5.3g (without screen)
• Measurement range: 2S~8S
• Power consumption (S.Port): 10mA@5V
Power consumption (battery): 10mA
• Voltage display resolution: 0.01V (Only for FLVS with screen)
• Voltage detection precision: 0.05V
• Operating temperature: -20~60℃
• 128*64 OLED Screen (Only for FLVS with screen)
• Compatible with FBUS/S.Port protocol

Set Up

FrSky Li-Po Voltage Sensor is only compatible with FrSky Smart Port enabled receivers. Here we take the setup
together with X8R receiver for example. For more details, please refer to corresponding receiver instruction manual.
Warning: Install FrSky Li-Po Voltage Sensor on any appropriate surface of the airframe that stays away
from water, vibration, or fuel.
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FLVS ADV Li-Po Voltage Sensor
Battery Port
Connect to the LiPo battery
www.frsky-rc.com
LED
Smart Port
To the S.Port of the
other FrSky Sensors / Recievers
OLED Display
