SYARIKAT JUN CHONG E-Dream Instruction Manual

E
- Dream

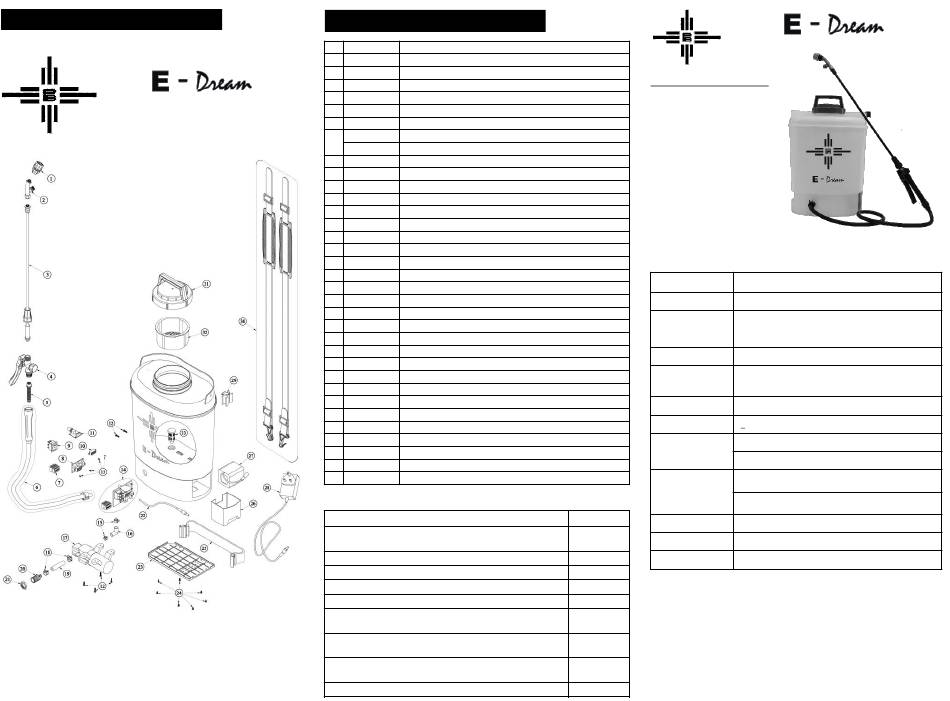

Diagram of Parts Assembling for
LI – ION CELL OPERATED SPRAYER
Made in Malaysia
Manufacturer reserve the right to do any technical changes as needed
Parts List for E
- Dream
No. Sales Code No. Description
1 SCA/4 (LG) SOLID CONE ADJUSTABLE NOZZLE
2 TE/2A (P1) TWIN ELBOW
3 331 (F) SPRAYING LANCE
4 321 (P1) P1 AUTOMATIC RELEASE COMPLETE
5 322 (P1) FILTER FOR CLEANING CHAMBER
6 346 (P2) P2 SPRAYING HOSE C/W CHAMBER & UNION
EPB-EC07-R UNIVERSAL CABLE WIRE CONNECTOR (RED)
7
EPB-EC07-B UNIVERSAL CABLE WIRE CONNECTOR (BLUE)
8 EPB-EC04 VOLTAGE MODULE
9 EPB-EC02 ROCKET SWITCH
10 EPB-EC05 VOLMETER
11 EPB-EC03 GOVENOR SWITCH
12 EPB-EC04S SCREW FOR ELECTRONICS BOARD COMPLETE & WATER PUMP (M4 X 16MM)
13 EPB-EC03S SCREW FOR VOLMETER & VOLTAGE MODULE (4 X1/4")
14 EPB-TK02CPT ELECTRONICS BOARD COMPLETE (ITEM NO. 7, 8, 9, 10, 11, 12 & 13)
15 EPB-EC10C HOSE CLIP (12MM)
16 EPB-EC10 L-SHAPE HOSE FOR WATER PUMP
17 EPB-WP-2.6L WATER PUMP
18 EPB-WPC HOSE CLIP (14MM)
19 EPB-TK03 HOSE FOR WATER PUMP TO HOSE UNION
20 EPB-TK04 HOSE UNION
21 EPB-TK05 SCREW FOR HOSE UNION
22 EPB-EC01 BATTERY WIRE CABLE CONNECTOR (MALE)
23 EPB-TK06 BASE COVER
24 EPB-TK06S SCREW FOR BASE COVER (6 X 3/8")
25 304 STAND GUARD
26 EPB-TK07 BATTERY CASING
27 EPB-BT-6.6AH LI-ION BATTERY PACK (11.1V, 6600MAH)
28 EPB-CG-UK LI-ION BATTERY CHARGER
29 EPB-TK08 HOLDER FOR LANCE & HOSE
30 337/CPT SHOULDER STRAP C/W PAD & HOOK (PER PAIR)
31 301 COVER OF TANK C/W RING
32 303 STRAINER
33 IEM-DC9 SUCTION FILTER
Standard Parts
Li – ion Battery Pack (EPB-BT-6.6AH)
(11.1V, 6600mAh)
Li – ion Battery Charger (EPB-CG-UK)
Spraying Lance (331F)
Twin Elbow [TE/2A(P1)]
Filter [IEM-DC(9)]
Liquid Spraying Adjustable Nozzle [SCA/4(LG)]
Flow Rate: (1.30 – 1.45) L/Min at pressure 2.8 bar
Liquid Spraying Adjustable Nozzle Cap [SCA/4/1(R)]
Flow Rate: (0.70 – 0.85) L/Min at pressure 2.8 bar
Rubber Hose Complete With Automatic Release and Filter
Washer Set
LI – ION CELL OPERATED SPRAYER
OUTSTANDING FEATURES
* Li – ion Powerful Battery
* High Performance Water Pump
* Lightweight & Durable
* Safety and Easy Operation
* Good & Constant Pressure
* Easy D.I.Y. Maintenance
* Portable Battery
* Spare Parts Available
General Specification
Model
Tank Capacity 16.00 Litres
Diaphragm Pump 12V, 2.1 Amps
Water Pump Type - Cut-off pressure: 4.8Bar
- Max. flow discharge: 2.60 L/Min
Li – ion Battery Pack, 11.1V, 6600mAh
Battery Type
Input: 100 – 240V, 1.0A, 50 – 60 Hz
Charger (AC/DC)
Output: 12.6V, 2.0A
Charging Time 3 - 4 Hours
Rechargeable > 500 Times
Approx. 3.0 hours for Nozzle SCA/4(LG)
Working Hour
Approx. 5.0 Hours for Nozzle SCA/4(R) ( fixed at 2.0 Bar )
Nozzle SCA/4(LG): Approx. 1.30 – 1.45 L/Min at pressure
2.8 Bar
Flow Rate
Nozzle SCA/4(R): Approx. 0.70 – 0.85 L/Min at pressure 2.8
Bar
Quantity
Measurement 380 mm x 251 mm x 510 mm
1
Net Weight 4.20 Kg
1
Gross Weight 5.00 Kg
1
1
1
SYARIKAT JUN CHONG SDN. BHD.
1
(Company No. 11881-U)
CROSS MARK® SPRAYER MANUFACTURER
18, Jalan Lambak, P.O.Box 51, 86000 Kluang, Johor, Malaysia
1
TEL: (6)07-7725188 FAX: (6)07-7724490
Email: sales@junchong.com.my
1 set
Website: www.junchong.com.my
1 set
Syarikat Jun Chong Sdn Bhd ©
E - Dream
