PROGRAMMABLE ROOM THERMOSTAT
What is a Programmable Room Thermostat?
A Programmable Room Thermostat combines a timer and thermostat in one unit by allowing you to set your desired comfort temperature at different times during the day.
The ThermaQ programmable SmartStat can operate as a 7 day, 5/2 day or 24 hour Programmable Room Thermostat with either 4 or 6 time and temperature events per day.
The ThermaQ programmable SmartStat also includes energy saving technology, TPI and Delayed Start as well as the safety feature of Landlord Service. All of these options can be turned
on or off depedning on user preference.
Displays the operating mode
(Auto, Manual All Day, Off )
Cancels and returns to the
previous menu
Factory Set Programme
The ThermaQ programmable SmartStat has a pre-set programme which
suits most people.
If the unit is installed as a 7 day thermostat, the pre-set settings are the
same as the 5/2 day programme. If the unit is set as a 24 hour thermostat,
the pre-set settings are the same as Mon-Fri of the 5/2 day programme.
QUICK HOMEOWNER GUIDE TO THE CONTROLS PACK : TQX0070
SINGLE ZONE THERMAQ CONTROLS SYSTEM
Either confirms and saves the setting,
or moves you to next option within a
function.
Room Temperature
Dial to adjust temperature and parameters.
Temporary Overrides (adjust the set
temperature up or down until the next
programmed event).
Flame symbol indicates the
system is calling for heat
Pre-set Temperatures:
Event
Time
Temp
Event
Time
1
06:00
20°C
1
07:30
2
08:00
15°C
2
09:30
3
12:00
15°C
3
11:30
4
14:00
15°C
4
13:30
5
17:00
21°C
5
16:30
6
22:00
15°C
6
22:30
N.B: If 4 Events is chosen then events 3&4 are skipped
Temp
20°C
20°C
20°C
20°C
21°C
15°C
Advertisement
Table of Contents
Related Manuals for ThermaQ TQX0070
Summary of Contents for ThermaQ TQX0070
- Page 1 A Programmable Room Thermostat combines a timer and thermostat in one unit by allowing you to set your desired comfort temperature at different times during the day. The ThermaQ programmable SmartStat can operate as a 7 day, 5/2 day or 24 hour Programmable Room Thermostat with either 4 or 6 time and temperature events per day.
- Page 2 QUICK HOMEOWNER GUIDE TO THE CONTROLS PACK : TQX0070 SINGLE ZONE THERMAQ CONTROLS SYSTEM COMMAND TREE Press > Auto When in Press < for 3 sec Holiday Mode No. Days Temp Home Auto Mode Press < All Day Mode Temp Press >...
Need help?
Do you have a question about the TQX0070 and is the answer not in the manual?
Questions and answers
I have an LED P5 (TQX0073) Therma room thermostat. When operating the wheel to adjust the required temperature the readings jump all over the place making it difficult to set. Please advise. The house is only three years old
Temperature readings on the ThermaQ TQX0070 thermostat may fluctuate when adjusting the temperature due to the use of Temporary Overrides, which change the set temperature until the next programmed event. Additionally, features like TPI (Time Proportional and Integral) control and Delayed Start may also cause slight fluctuations as they adjust heating patterns for energy efficiency.
This answer is automatically generated
Thermostat shows flame symbol which means it should ask for heat but it does not fire up and heat radiators. I have 2 zones in the house with 2 such thermostats. The other one works fine so it is not a problem with boiled. Can you suggest what I can try?
If the ThermaQ TQX0070 thermostat shows a flame symbol but the radiators are not heating, the following troubleshooting steps can be taken:
1. Check the Boiler: Ensure the boiler is powered on and functioning properly. The thermostat may be calling for heat, but the boiler might not be responding.
2. Verify Heating System: Make sure the heating system valves are open and the pressure is within the recommended range.
3. Inspect Radiators: Check if radiator valves are open and not blocked by air. Bleed the radiators if necessary to release trapped air.
4. Review Settings: Confirm the thermostat is not in “Off” or “Manual All Day” mode that may restrict operation.
5. Override Settings: Try using a temporary override to increase the temperature and see if the system responds.
6. Check for Errors: Look for any error messages or unusual behavior on the thermostat that may indicate a fault.
7. Power Cycle: Try turning the thermostat and boiler off and on to reset the system.
If the issue persists, professional servicing may be required.
This answer is automatically generated

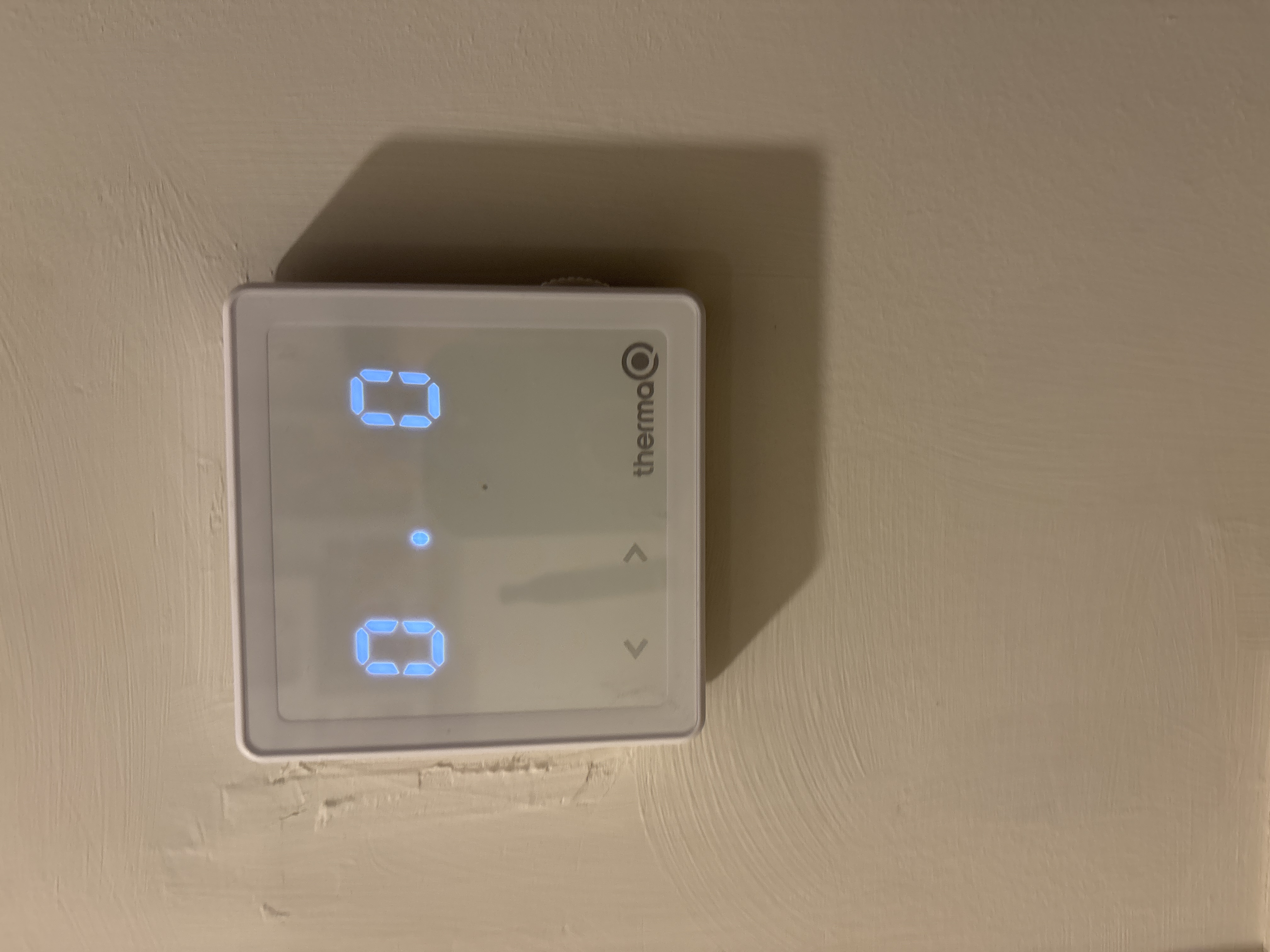

We had a power cut and the touch screen and dial are now not working. Any help appreciated! I’ve had this system for 4 years and have never known how to work them. I literally turn my heating on at the boiler….. they are the most complicated thermostat I’ve ever come across.
