Summary of Contents for ledlenser XP30R

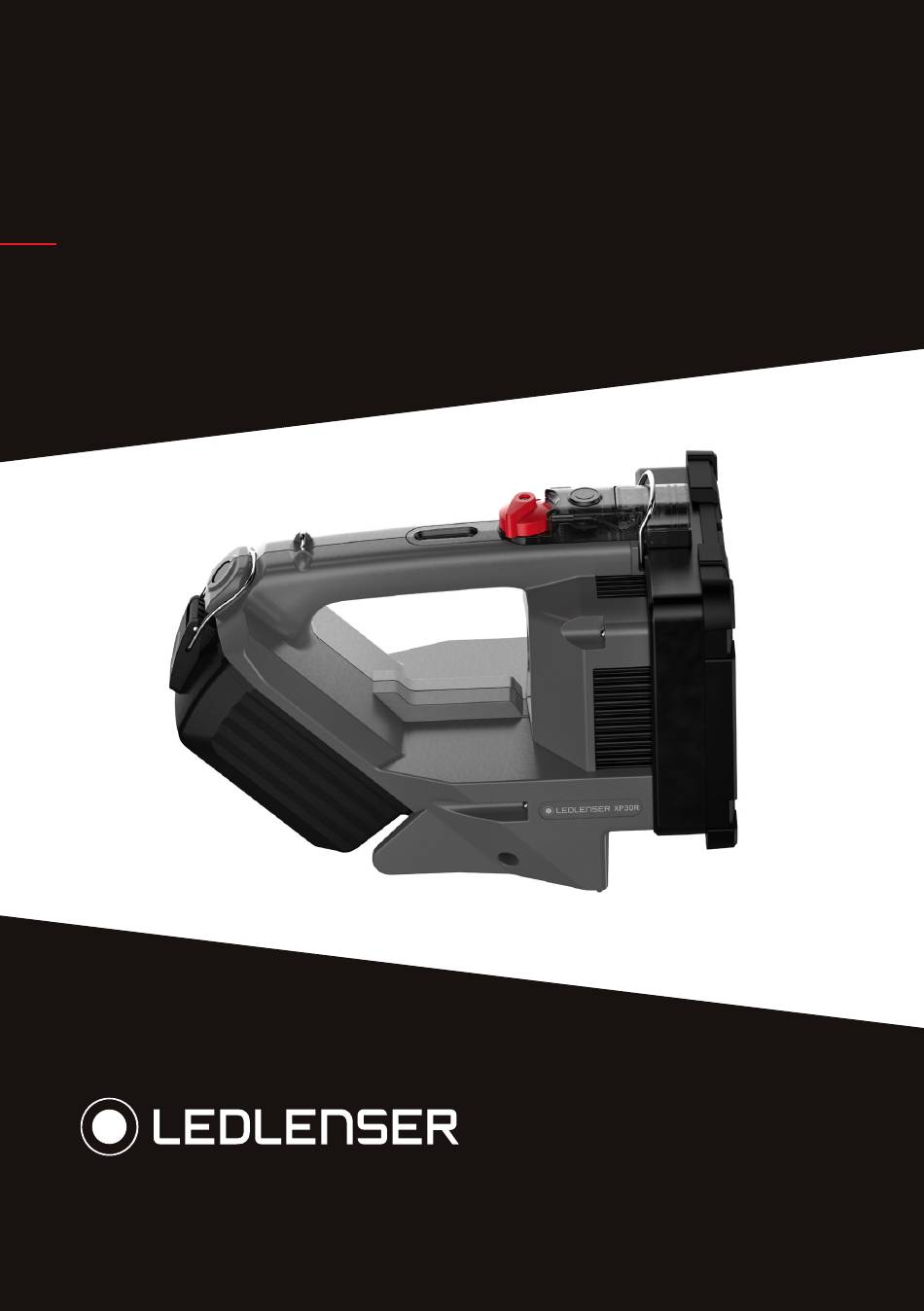

- Page 1 XP30R MANUAL...
- Page 2 Therefore, please particularly follow the warnings and safety instructions and dispose of the lamps, batteries as well as packaging material properly. XP30R manual V.01_01.2023...
-
Page 3: Table Of Contents
Table of contents 1. General information Product information General information The Ledlenser XP30R is a searchlight and may Delivery scope be used only for the purposes of illumination. The lamp is also equipped with a light source that Safety instructions cannot be replaced by the user. -
Page 4: Delivery Scope
• Registration card The lamp may be used only with the following rechargeable batteries (battery pack). • Compatible rechargeable batteries supplied by or officially acquired from Ledlenser General safety instructions Carefully read the following safety instructions before using the product. - Page 5 ‣ do not open, damage, or short circuit. ‣ If not in use for a long time, remove the batter- ies from the lamp and charge regularly only in the charging station supplied (every 3 months). XP30R manual V.01_01.2023...
-
Page 6: Changing Batteries And Charging
In order to get more information regarding the operation and safety of the battery and the charging station, please scan the following QR code or visit www.ledlenser.com: Click Hold XP30R manual V.01_01.2023... -
Page 7: Basic Functions
(Fig. 5c) goes out. Close the safety cover. Hold> 2s Fixing the carry strap Attach the two hooks of the carry strap (Fig. 5f) on the two mounting brackets located on the upper side of the product (Fig. 5e). XP30R manual V.01_01.2023... - Page 8 Battery capacity display If the lamp is switched on, the remaining battery capacity is displayed via a 10-step LED bar display (1 bar = 10%) on the upper side of the device (Fig. 5g). 100% XP30R manual V.01_01.2023...
- Page 9 Details for coupling with remote control and the operating functions provided can be found in Brightness setting Chapter 8. Mode 0 Remote-Mode Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 XP30R manual V.01_01.2023...
-
Page 10: Boost Function
Within the next 10 sec, keep the + and – buttons of the remote control simultaneously pressed for 2 sec (Fig. 8d). Pos. 1 ⇢ Upon successful connection, the blue status LED remains lit up. XP30R manual V.01_01.2023... - Page 11 = 2sec Standby mode ON (Fig. 8b). The remote control has a display of the battery status (Fig. 8 m). Replace the battery (1x lithium CR2032, 3 V) if needed. <1 sec 2x Click Standby mode OFF XP30R manual V.01_01.2023...
-
Page 12: Temperature Monitoring
(Fig. 8q). Screw in the 2 screws again. Temperature monitoring The XP30R is equipped with a temperature mon- itoring system and active cooling system, which permanently monitors the temperature of the lamp as well as the battery. -
Page 13: Stand-Mounting
Make sure that you are using the battery within the external temperature limits of -20°C - 40°C. Please note that the battery additionally heats up during operation. ‣ Restart the lamp after a waiting period of approx. 10 min. XP30R manual V.01_01.2023... -
Page 14: Technical Data Of The Lamp
‣ Restart the lamp after a waiting period of approx. 10 min. If the fault should continue, contact Ledlenser customer support. 13 Technical data of the lamp Technical data of the lamp Light mode Boost Luminous flux >32.000... -
Page 15: Instructions Regarding Disposal
Provided it can be done non-destructively, remove the discharged batteries carefully, following the usage instructions and dispose of them separately. For further information, see www.ledlenser.com. * In case of sale using remote means of com- munication, the storage and dispatch areas are considered as retail space... - Page 16 Ledlenser GmbH & Co. KG Kronenstr. 5-7, 42699 Solingen, Deutschland (Germany) Phone +49 212/5948-0 Fax +49 212/5948-200 info@ledlenser.com XP30R manual V.01_01.2023...
