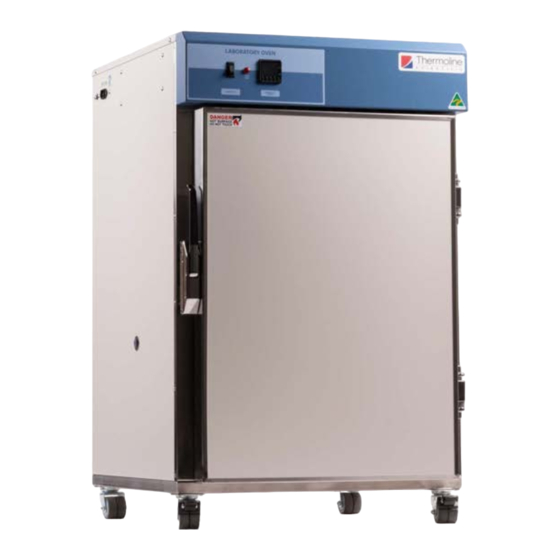

- Page 1 Laboratory Ovens User Manual & Setup Guide TO/TOH RANGE Omron E5CC Thermoline Scienti c Equipment Pty. Ltd. ABN 80 000 859 129 10-12 Ross Place Wetherill Park, NSW 2164. Australia. Phone: +61 2 9604 3911 email: hello@thermoline.com.au www.thermoline.com.au...
-
Page 2: Table Of Contents
Contents Laboratory Oven User Manual By Thermoline Scientific General Information Product Speci cations Technical Speci cations Operating Environment Laboratory Oven Operating Environment Bench Top Location Electrical Connections Setup Unpacking Moving Castors Laboratory Oven Location Shelves Exhaust Cleaning Door Gasket Port Hole... - Page 3 Symbols Laboratory Oven User Manual By Thermoline Scientific Warning sign: signi es a general warning, and indicates a risk to people speci ed by the supplementary sign that if not avoided, may result in death or serious injury. General Warning Sign Warning;...
-
Page 4: General Information
General Information Laboratory Oven User Manual By Thermoline Scientific This user manual is intended for Thermoline's laboratory oven range. We recommend that you read this user manual the whole way through before you start using the cabinet. Consider this manual as a part of the cabinet and an integral part to its function. -
Page 5: Product Speci Cations
Product Specifications Dimensions External TO-30G TO-150G TOH-150F WxDxH (mm) 430x400x730 630x660x1010 630x660x1010 Internal WxDxH (mm) 300x280x440 500x510x600 500x510x600 Clearance TO-30G TO-150G/ TOH-150F Front (mm) Back (mm) Sides (mm) -
Page 6: Technical Speci Cations
Technical Specifications Technical TO-30G TO-150G Specifications Temperature Range Ambient +10°C to 200°C Ambient +10°C to 300°C Temperature Uniformity +/-2°C @ 100°C +/-4°C @ 100°C +/-4°C @ 200°C Heater Power 500 watts 900 watts 1500 watts Electrical 2.5A/230V 4A/230V 6.5/230V Nominal Capacity 150L 150L Porthole Diameter... -
Page 7: Operating Environment
Operating Environment Laboratory Oven User Manual By Thermoline Scientific Laboratory Oven Operating Environment Bench Top Location Ensure that the laboratory oven is placed in the correct Bench Top Requirements: environment, away from direct sunlight or direct heat sources • Under no circumstances should any ovens be stacked such as heaters (Fig 1). -
Page 8: Electrical Connections
Operating Environment Electrical Connections Laboratory ovens require a 10amp 230V 50hz power supply. A dedicated outlet should be used for all ovens. Do not use power boards or the like. A 3-pin moulded plug is supplied as standard. Electrical requirements Fig 2. - Page 9 Operating Environment Warnings Laboratory ovens should be stored inside at all times. Failure to adhere to this could cause signi cant drops in cabinet performance and damage to items stored inside. Laboratory ovens are not suitable for use with ammable solvents! They are tted with components that may be the source of ignition.
-
Page 10: Setup
Setup Laboratory Oven User Manual By Thermoline Scientific Unpacking Moving Unpacking process for foam wrapped or boxed Moving the laboratory oven on castors: • Ensure that the oven is rolled on an even and at • The TOH-150F and TO-150G can be delivered foam surface. -
Page 11: Castors
Setup Castors The TO-150G and TOH-150F both are equipped with lockable castors to prevent cabinet movement as standard. Castor Setup: • Ensure that the laboartory oven is placed on an even and at surface. Uneven surfaces can cause issues within the cabinet. Uneven surfaces can cause the cabinet to fall over or roll away with unlocked castors. -
Page 12: Laboratory Oven Location
Setup Laboratory Oven Location Location Requirements: • The laboratory oven requires a level surface to operate correctly. (Fig 1) • Do not store items on top of the laboratory oven (Fig 2). Space is required to accommodate the inlet and outlet vents. •... -
Page 13: Shelves
Setup Shelves All ovens comes equipped with shelves used for holding items while the oven is in operation. They allow for more than one item to be conditioned at a time. The shelves can be adjusted to different heights to accommodate different size items. To adjust the shelf clips you must: Shelving: •... -
Page 14: Exhaust
Setup Exhaust The TOH-150F high-temperature laboratory oven and TO-150G laboratory oven both feature an exhaust port on top of the cabinet. Exhaust Requirements: • The top covers of the inlet and exhaust can be rotated either way to open up the exhaust and allow air ow (Fig 2). -
Page 15: Cleaning
Setup Cleaning The interior, exterior, and door gasket can be cleaned as often as required using a soft cloth and soapy water. Never use abrasive cleaners or scouring pads as these will scratch the surface and may result in corrosion. Never use caustic type cleaning agents. All cabinets have electrical components. -
Page 16: Port Hole
Setup Port Hole The port hole can be found on the left side of the laboratory oven. The cabinet comes equipped with a plug that may be removed by simply pulling it out. Keep the plug safe in case the port hole needs to be closed again. Setup Warnings Ensure when placing the cabinet into place that the castors can be accessed so they can be locked and unlocked. -
Page 17: Start Up Procedure
Start Up Procedure Laboratory Oven User Manual By Thermoline Scientific Start Up Procedure Start Up process: • Before proceeding, please make sure that all internal and external packaging has been removed from the appliance and that all tape, plastic bags and foam pieces have been removed. -
Page 18: Loading
Start Up Procedure Loading Laboratory ovens require constant air ow throughout the cabinet to maintain the desired temperature. Correct loading of the shelves must be considered for e cient cabinet performance. Loading Requirements: • Distribute the load evenly over all the shelves rather than stacking everything on one shelf. -
Page 19: Omron User Guide
Omron User Guide Laboratory Oven User Manual By Thermoline Scientific The controller is an Omron E5CC microprocessor based instrument with digital indication of set temperature and operating temperature. The instrument has been factory con gured for range, sensor type, and engineering parameters for optimum control. -
Page 20: Temperature Control
General Controls Temperature Control Sensor Calibration There are a number of factors that will affect the accuracy of How to the temperature displayed in relation to the actual temperature Use the “ <<PF “ button to move the cursor. The digits in SV will inside the Oven. -
Page 21: Bms Output
General Controls BMS Output The oven can be tted with an optional 3-pin socket to allow for connection to a building monitoring system or phone dialler. A plug is also supplied separately to connect the socket to your system. The alarm contacts have no voltage present but we recommend that the wiring is connected by a suitably quali ed technician. - Page 22 General Controls Manual Reset Safety Thermostat The over-temperature safety thermostat is not operator adjustable. It will electrically isolate the heating elements in the event of an over-temperature situation. The main aim of this safety is to protect from overheating in the event that there is no air ow through the cabinet.
-
Page 23: Troubleshooting
Troubleshooting Laboratory Oven User Manual By Thermoline Scientific Problem Part Number Oven Temperature does Sensor Issue 40716- PT100 Sensor not match the controller There could be a few reasons why the oven temperature is read out. not matching the controller readout. One possibility is that the temperature sensor inside the oven is not properly calibrated or functioning correctly. -
Page 24: Technical And Repair Support
Troubleshooting Problem Part Number Lever latch door Adjustable strike will not close If the latch feels overly tight or will not completely close the strike will likely (latch too tight) or need to be brought forward (away from the cabinet). Alternatively, if the latch does not close feels loose when closed and it doesn't hold the door rmly closed the strike rmly (latch too... -
Page 25: Warranty
Warranty Laboratory Oven User Manual By Thermoline Scientific Have the following information available when you contact the service department. Model number and serial number. This is generally found on the exterior of the cabinet in the form of a stick-on label. The company name, address, contact name, contact phone number. - Page 26 Doc ID: TM-017-V1...
