Summary of Contents for Thermoline Scientific TD Series

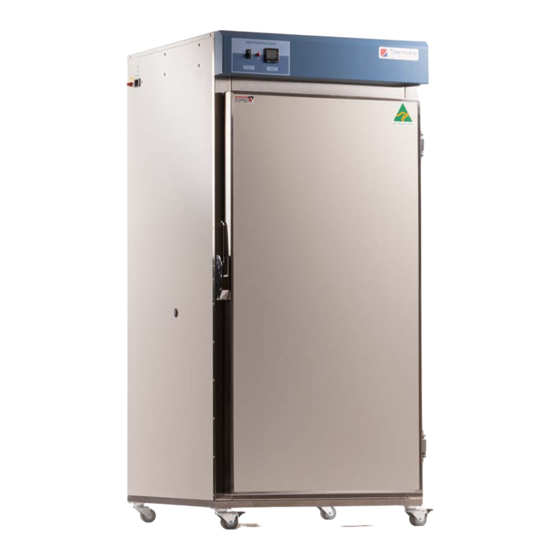

- Page 1 Ovens User Manual & Setup Guide TD & TD-FM RANGE Omron E5CC Thermoline Scienti c Equipment Pty. Ltd. ABN 80 000 859 129 10-12 Ross Place Wetherill Park, NSW 2164. Australia. Phone: +61 2 9604 3911 email: hello@thermoline.com.au www.thermoline.com.au...
-
Page 2: Table Of Contents
Contents General Information Product Speci cations Operating Environment Drying Oven Operating Environment Bench Top Location Electrical Connections Operating Environment Warnings Setup Unpacking Moving Castors Drying Oven Location Shelves Inlet and Exhaust Cleaning Door Gasket Port Hole Start Up Procedure Start Up Procedure Loading Omron User Guide Display Symbols... - Page 3 Symbols Drying Oven User Manual By Thermoline Scientific Warning sign: signi es a general warning, and indicates a risk to people speci ed by the supplementary sign that if not avoided, may result in death or serious injury. General Warning Sign Warning;...
-
Page 4: General Information
General Information Drying Oven User Manual By Thermoline Scientific This user manual is intended for Thermoline's drying oven range. We recommend that you read this user manual the whole way through before you start using the cabinet. Consider this manual as a part of the cabinet and an integral part to its function. -
Page 5: Product Speci Cations
Product Specifications Drying Oven User Manual By Thermoline Scientific Dimensions External TD-80F TD-150F TD-250F TD-500F TD-700F TD-630F WxDxH (mm) 520x560x800 630x660x1010 630x660x1360 780x810x1680 780x810x1980 1450x860x1100 Note: Inlet and Exhaust ports extend the overall height of the ovens by approximately 40mm. - Page 6 Technical Specifications Dimensions External TD-500FM TD-700FM WxDxH (mm) 780x810x1680 780x810x1980 Note: Inlet and Exhaust ports extend the overall height of the ovens by approximately 40mm. Internal WxDxH (mm) 650x650x1200 650x650x1500 Clearance TD-500FM TD-700FM Front (mm) Back (mm) Sides (mm)
- Page 7 Technical Specifications Technical TD-80F TD-150F TD-250F TD-500F TD-700F TD-630F Specification Temperature Ambient +10°C to 200°C Range Temperature +/- 0.1°C Control Stability Temperature +/-2°C @ 100°C +/-4°C @ 100°C Uniformity Heater Power 1500 watts 3000 watts Electrical 7A/230V 13A/230V (requires 15A supply) Nominal Capacity 150L 250L...
- Page 8 Technical Specifications Features TD-80F TD-150F TD-250F TD-500F TD-700F TD-630F Shelves (max @100mm 2 (max 3) 3 (max 4) 4 (max 6) 5 (max 9) 6 (max 11) 3 levels spacing) (max 4) ✔ ✔ ✔ ✔ ✔ Lockable Castors Optional Internal Fan ✔...
- Page 9 Technical Specifications Features TD-500FM TD-700FM Shelves Lockable Castors ✔ ✔ ✔ ✔ Internal Fan Omron E5CC-T ✔ ✔ Solid Door ✔ ✔ ✔ ✔ Fibreglass Insulation Safety ✔ ✔ Over Temperature Safety Over Current Protection ✔ ✔ Options BMS Plug No volt contact closure plug and socket connection to a Building Management System Door Locks Key lockable door locks...
-
Page 10: Operating Environment
Operating Environment Drying Oven User Manual By Thermoline Scientific Drying Oven Operating Environment Bench Top Location Ensure that the drying oven is placed in the correct Bench Top Requirements: environment, away from direct sunlight or direct heat sources • Under no circumstances should any ovens be stacked such as heaters (Fig 1). -
Page 11: Electrical Connections
Operating Environment Electrical Connections Depending on the model the drying ovens either require a require a 15amp, 230V, 50hz power supply or a 10amp 230V 50hz power supply. Requirements are shown in the below table. A dedicated outlet should be used for all ovens. Do not use power boards or the like. -
Page 12: Operating Environment Warnings
Operating Environment Warnings Do not store items on top of the cabinet as this will also affect ventilation! CAUTION: When installing more than one cabinet in the same location ensure that they are positioned in such a way that warm air exhausted from one cabinet, is not drawn directly into the other cabinet. -
Page 13: Setup
Setup Drying Oven User Manual By Thermoline Scientific Unpacking Moving Unpacking process for foam wrapped or boxed Moving the drying oven: • Ensure that the oven is rolled on an even and at • The drying oven will be delivered foam wrapped and surface. -
Page 14: Castors
Setup Castors The drying ovens are equipped with lockable castors to prevent cabinet movement. Castor Setup: • Ensure that the drying oven is placed on an even and at surface. Uneven surfaces can cause issues within the cabinet. Uneven surfaces can cause the cabinet to fall over or roll away with unlocked castors. -
Page 15: Drying Oven Location
Setup Drying Oven Location Location Requirements: • The drying oven requires a level surface to operate correctly. (Fig 1) • Do not store items on top of the drying oven (Fig 2). Space is required to accommodate the inlet and outlet vents. -
Page 16: Shelves
Setup Shelves All ovens comes equipped with shelves used for holding items while the oven is in operation. They allow for more than one item to be conditioned at a time. The shelves can be adjusted to different heights to accommodate different size items. To adjust the shelf clips you must: Shelving: •... -
Page 17: Inlet And Exhaust
Setup Inlet and Exhaust All drying ovens feature an inlet and an exhaust port on top of the cabinet. The inlet regulates the amount of fresh (dry air) that enters the cabinet and the outlet regulates the amount of exhaust air that can exit the cabinet. In combination, this regulates the rate of drying. -
Page 18: Cleaning
Setup Cleaning The interior, exterior, and door gasket can be cleaned as often as required using a soft cloth and soapy water. Never use abrasive cleaners or scouring pads as these will scratch the surface and may result in corrosion. Never use caustic type cleaning agents. All cabinets have electrical components. -
Page 19: Port Hole
Setup Port Hole The port hole can be found on the left side of the drying oven. The cabinet comes equipped with a plug that may be removed by simply pulling it out. Keep the plug safe in case the port hole needs to be closed again. Setup Warnings Ensure when placing the cabinet into place that the castors can be accessed so they can be locked and unlocked. -
Page 20: Start Up Procedure
Start Up Procedure Drying Oven User Manual By Thermoline Scientific Start Up Procedure Start Up process: • Before proceeding, please make sure that all internal and external packaging has been removed from the appliance and that all tape, plastic bags and foam pieces have been removed. -
Page 21: Loading
Start Up Procedure Loading Drying ovens require constant air ow throughout the cabinet to maintain the desired temperature. Correct loading of the shelves must be considered for e cient cabinet performance. Loading Requirements: • Distribute the load evenly over all the shelves rather than stacking everything on one shelf. -
Page 22: Omron User Guide
Omron User Guide Drying Oven User Manual By Thermoline Scientific The controller is an Omron E5CC microprocessor based instrument with digital indication of set temperature and operating temperature. The instrument has been factory con gured for range, sensor type, and engineering parameters for optimum control. -
Page 23: Temperature Control
General Controls Temperature Control Sensor Calibration There are a number of factors that will affect the accuracy of How to the temperature displayed in relation to the actual temperature Use the “ <<PF “ button to move the cursor. The digits in SV will inside the Oven. -
Page 24: Bms Output
General Controls BMS Output The drying oven can be tted with an optional 3-pin socket to allow for connection to a building monitoring system or phone dialler. A plug is also supplied separately to connect the socket to your system. The alarm contacts have no voltage present but we recommend that the wiring is connected by a suitably quali ed technician. -
Page 25: Manual Reset Safety Thermostat
General Controls Manual Reset Safety Thermostat The over-temperature safety thermostat is not operator adjustable. It will electrically isolate the heating elements in the event of an over-temperature situation. The main aim of this safety is to protect from overheating in the event that there is no air ow through the cabinet. -
Page 26: Troubleshooting
Troubleshooting Drying Oven User Manual By Thermoline Scientific Problem Part Number Oven Temperature does Sensor Issue 40716- PT100 Sensor not match the controller There could be a few reasons why the oven temperature is read out. not matching the controller readout. One possibility is that the temperature sensor inside the oven is not properly calibrated or functioning correctly. -
Page 27: Technical And Repair Support
Troubleshooting Problem Part Number Lever latch door Adjustable strike will not close If the latch feels overly tight or will not completely close the strike will likely (latch too tight) or need to be brought forward (away from the cabinet). Alternatively, if the latch does not close feels loose when closed and it doesn't hold the door rmly closed the strike rmly (latch too... -
Page 28: Warranty
Warranty Drying Oven User Manual By Thermoline Scientific Have the following information available when you contact the service department. Model number and serial number. This is generally found on the exterior of the cabinet in the form of a stick-on label. The company name, address, contact name, contact phone number. - Page 29 Doc ID: TM-016-V1...
