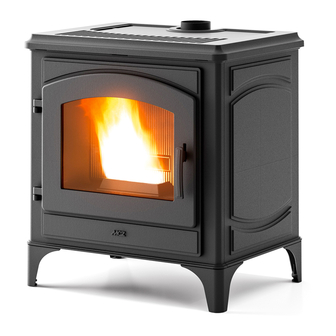

Sealed pellet stove
Hide thumbs Also See for DECO AIR 8 M1:
Table of Contents

Advertisement

Quick Links

Download this manual
USE AND INSTALLATION MANUAL
GB
SEALED PELLET STOVE
DECO' AIR 8 M1
PART 1 - REGULATIONS AND ASSEMBLY
Instructions in English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DECO AIR 8 M1 and is the answer not in the manual?

Questions and answers

Related Manuals for MCZ DECO AIR 8 M1

Summary of Contents for MCZ DECO AIR 8 M1

  • Page 1 USE AND INSTALLATION MANUAL SEALED PELLET STOVE DECO’ AIR 8 M1 PART 1 - REGULATIONS AND ASSEMBLY Instructions in English...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ....................II INTRODUCTION ......................1 1-WARNINGS AND WARRANTY CONDITIONS ..............2 2-INSTALLATION ......................8 3-DRAWINGS AND TECHNICAL FEATURES ..............17 4-UNPACKING ......................19 5- SMOKE OUTLET .....................21 6-INSTALLATION AND ASSEMBLY ................25 7-DOOR OPENING .....................30 8-USB SOCKET ......................31 9-ELECTRICAL CONNECTION..................32 10-LOADING THE PELLETS ..................33...

  • Page 3: Introduction

    No part of this manual may be translated into other languages, adapted and/or reproduced, even in part, in other mechanical and/or electronic form or media, for photocopies, recordings or other, without the prior written authorisation of MCZ Group Spa. The company reserves the right to make changes to the product at any time without prior notice. The owner company reserves its rights according to law.

  • Page 4: 1-Warnings And Warranty Conditions

    1-WARNINGS AND WARRANTY CONDITIONS SAFETY PRECAUTIONS • Installation, electrical connection, operating check and maintenance must only be carried out by authorised and qualified personnel. • Install the product in accordance with all local and national legislation and regulations in force in the region or state. • Only use the fuel recommended by the manufacturer.
  • Page 5 1-WARNINGS AND WARRANTY CONDITIONS • Do not dry laundry on the product. Any drying racks or the like must be kept at a safe distance from the product. Fire hazard. • All liability for improper use of the product is entirely borne by the user and relieves the manufacturer of any civil and criminal liability.
  • Page 6 1-WARNINGS AND WARRANTY CONDITIONS exposed to weathering. • It is recommended not to remove the feet that support the product in order to ensure adequate insulation, especially if the flooring is made of flammable materials. • In the event of a malfunction of the ignition system, do not force it on by using flammable materials.
  • Page 7 1-WARNINGS AND WARRANTY CONDITIONS INFORMATION: Please contact the retailer or qualified personnel authorised by the company to resolve a problem. • Only use the fuel specified by the manufacturer. • When the product is switched on for the first time, it is normal for it to emit smoke due to the paint heating up for the first time. Therefore make sure the room it is installed in is well-ventilated.
  • Page 8 1-WARNINGS AND WARRANTY CONDITIONS WARRANTY CONDITIONS The company guarantees the product, with the exception of parts subject to normal wear (listed on the following page), for a period of 2 (two) years from the date of purchase attested by: • a document that serves as proof of purchase (invoice and/or receipt) that shows the name of the vendor and the date that the purchase was made on;...
  • Page 9 1-WARNINGS AND WARRANTY CONDITIONS The company declines all liability for any damage which may be caused, directly or indirectly, to persons, animals or objects as a consequence of non compliance with any provision specified in the manual, especially warnings regarding installation, use and maintenance of the appliance.

  • Page 10: 2-Installation

    2-INSTALLATION The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the regulations in force in the country of installation. PELLETS Wood pellets are manufactured by extruding sawdust which is produced during the processing of natural dried wood (without paint). The compactness of the material is guaranteed by the lignin contained in the wood itself and allows the pellets to be produced without glue or binders.
  • Page 11 2-INSTALLATION FOREWORD The installation position must be chosen according to the room, smoke extraction system and flue. Check with local authorities whether there are any restrictive regulations in force regarding the combustion air inlet, the smoke outlet system, the flue or the chimneypot. The manufacturer declines all responsibility in the event of installations that do not comply with the laws in force, incorrect room air exchange, electrical connection non-compliant with the standards and inappropriate use of the appliance.
  • Page 12 2-INSTALLATION FOREWORD This Flue chapter has been drawn up with reference to the provisions of European Standards (EN13384 - EN1443 - EN1856 - EN1457). The chapter provides indications for installing an efficient and correct flue but is under no circumstances to substitute the regulations in force, which the qualified manufacturer must be in possession of.
  • Page 13 2-INSTALLATION TECHNICAL SPECIFICATIONS Have the efficiency of the flue checked by an authorised technician. The flue must be sealed against flue gases, in a vertical direction without narrowing, be made with materials impermeable to smoke, condensation, thermally insulated and suitable to resist normal mechanical stress over time (we recommend fireplaces made of A/316 or refractory material with insulated round section double chamber).
  • Page 14 2-INSTALLATION ROOF AT 60° ROOF AT 45° 45° 60° A = MIN. 2.60 metres A = MIN. 2.00 metres FIGURE 5 FIGURE 6 B = DISTANCE > 1.20 metres B = DISTANCE > 1.30 metres C = DISTANCE < 1.20 metres C = DISTANCE <...
  • Page 15 2-INSTALLATION MAINTENANCE The flue must be kept clean, since the deposit of soot or unburnt oils reduces the cross-section, blocking the draught and thus compromising the efficient operation of the stove and, if large build-ups accumulate, can catch fire. The flue and chimneypot must be cleaned and checked by a qualified chimney sweep at least once a year.
  • Page 16 2-INSTALLATION EXTERNAL AIR INLET It is mandatory to provide an adequate external air inlet that supplies the combustion air required for the product to work properly. The flow of air between the outside and the installation room may be direct, through an inlet in an external wall of the room (preferable solution see Figure 9 a), or indirect, via air intake from adjoining rooms and connecting permanently with the installation room (see Figure 9 b).
  • Page 17 2-INSTALLATION DISTANCE (metres) The air inlet must be at a distance of: 1.5 m BELOW Doors, windows, smoke outlets, gaps, ..1.5 m HORIZONTALLY Doors, windows, smoke outlets, gaps, ..0.3 m ABOVE Doors, windows, smoke outlets, gaps, ..1.5 m AT A DISTANCE from smoke outlet CONNECTION TO THE FLUE...
  • Page 18 2-INSTALLATION EXAMPLES OF CORRECT INSTALLATION 1. Installation of Ø120mm flue with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non- flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by plate data) if next to flammable parts such as wood etc.

  • Page 19: 3-Drawings And Technical Features

    3-DRAWINGS AND TECHNICAL FEATURES DRAWINGS AND CHARACTERISTICS DECO’ AIR 8 M1 STOVE DIMENSIONS Ø50 Ø100 Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 20 3-DRAWINGS AND TECHNICAL FEATURES TECHNICAL SPECIFICATIONS DECO’ AIR 8 M1 Energy Efficiency Class Nominal output power 8.0 kW (6880 kcal/h) Minimum output power 2.4 kW (2064 kcal/h) Efficiency at Max 92.7% Efficiency at Min 94.3% Temperature of exhaust smoke at Max 135 °C Temperature of exhaust smoke at Min 73°C...

  • Page 21: 4-Unpacking

    4-UNPACKING PREPARATION AND UNPACKING The packaging consists of a recyclable cardboard box in line with RESY standards and a wooden pallet. All packaging materials can be reused for similar use or eventually disposed of as urban solid waste, in compliance with the regulations in force. After having removed the packaging make sure the product is intact.
  • Page 22 4-UNPACKING Position the stove and connect it to the flue. Use the 4 adjustable feet (J) to get the stove correctly levelled so that the smoke outlet is lined up with the connecting pipe. If the stove needs to be connected to an outlet pipe which goes through the rear wall (to connect to the flue), take utmost care to make sure that the joint is not forced.

  • Page 23: 5- Smoke Outlet

    5- SMOKE OUTLET SMOKE OUTLET As per standard the stove is designed for upper smoke outlet (UP!). With a few easy manoeuvres the smoke outlet can be brought to the back. The installer must carry out the following steps: • eliminate the adapter 80/100 (part “1”) •...
  • Page 24 5- SMOKE OUTLET • disassemble female pipe-diameter 80 (part “4”) • remove lid “5”...
  • Page 25 5- SMOKE OUTLET • mount the female pipe diameter 80 (part “4”) at the back where the lid “5” was mounted • mount lid “5” at the top where the female pipe diameter 80 was mounted “4” Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 26 5- SMOKE OUTLET • mount the filler “6” (supplied) At this point install the pipes for the rear outlet...

  • Page 27: 6-Installation And Assembly

    6-INSTALLATION AND ASSEMBLY TOP OPENING Grab the top into the special slot (under the top) with the glove provided and pull towards you to slide it. Attention! Ensure you fully close the top to ensure the air tightness of the stove. Technical Dept.
  • Page 28 6-INSTALLATION AND ASSEMBLY DISASSEMBLING THE SIDE PANELS To remove the side panels “L” you have to open the top “H” to access the brackets “T” and “J” which lock the panel.
  • Page 29 6-INSTALLATION AND ASSEMBLY To remove the side panels proceed as follows: • remove the screw “V” from the plate “T” • remove the screw “G” from the plate “J” • remove the plates “T” and “J” Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 30 6-INSTALLATION AND ASSEMBLY • Raise the panel “L” so that the two studs “E” come out from the holes “F” on the structure (see also the following page) • tilt the panel “L” at the bottom • lower the panel“L” towards the floor and extract it from its original position • Tilt the panel “L”...
  • Page 31 6-INSTALLATION AND ASSEMBLY Technical Dept. - All rights reserved - Reproduction prohibited...

  • Page 32: 7-Door Opening

    7-DOOR OPENING OPENING THE DOOR OF THE FIREBOX To open the firebox door “P” take the handle “M” and pull it towards you. Attention! Only open the door when the stove is off and cold.

  • Page 33: 8-Usb Socket

    8-USB SOCKET USB SOCKET There is a USB socket on the bottom of the stove, near the control panel, if a software update is required; the cladding parts do not have to be removed to reach the socket directly in the circuit board (pos. 2 in the PCB). Attention! The USB socket must be used by skilled technicians.

  • Page 34: 9-Electrical Connection

    9-ELECTRICAL CONNECTION ELECTRICAL CONNECTION First connect the power cable to the back of the stove and then to a wall socket. It is recommended to disconnect the power cable when the stove is not used. The cable must never come into contact with the smoke exhaust pipe or any other part of the stove. ELECTRICAL STOVE CONNECTION STOVE POWER SUPPLY Connect the power cable to the back of the stove and then to a wall socket.

  • Page 35: 10-Loading The Pellets

    10-LOADING THE PELLETS LOADING THE PELLETS Fuel is loaded through the upper part of the stove. Take the top “H” and pull it towards you using the glove supplied. Once the top has been extracted, you can pour the pellets in slowly so that it is deposited at the bottom of the tank. If loading pellets when the stove is running, open the door of the hopper using the stove mitten that comes with the stove itself.
  • Page 36 MCZ GROUP S.p.A. Via La Croce n°8 33074 Vigonovo di Fontanafredda (PN) – ITALY Telephone: 0434/599599 a.s. Fax: 0434/599598 Internet: www.mcz.it e-mail: mcz@mcz.it 8901941500 REV.1 14/11/2019...
