Baird PM-STRLNK Instructions

B
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BAIRD SUPPORTING SYSTEMS. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF BAIRD SUPPORTING SYSTEMS IS
PROHIBITED.
WWW.BAIRDMOUNTS.COM

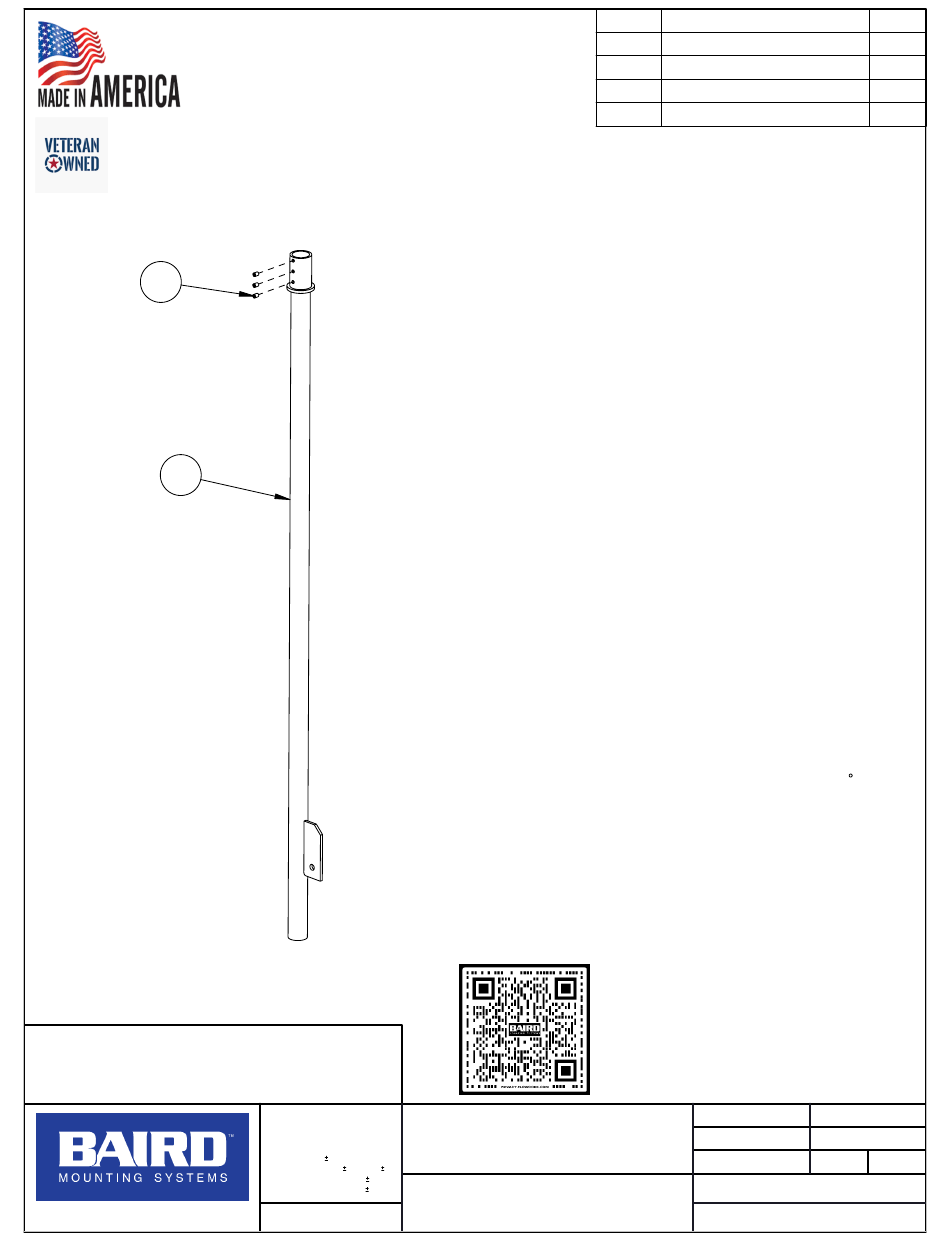

ANCHOR THE POLE IN THE GROUND WITH A METHOD SUITABLE
FOR YOUR LOCATION AND SOIL CONDITIONS. (CALL 811 BEFORE
YOU DIG TO LOCATE UNDERGROUND UTILITIES)
PUT A DROP OF THREADLOCKER ON THE THREADS OF THE
BOTTOM SET SCREW AND DRIVE IT IN FLUSH WITH THE OUTSIDE OF
THE SLEEVE. (DRIVE THE SET SCREWS WITH THE INCLUDED 5/32"
ALLEN KEY)
SET THE STARLINK MAST IN THE SLEEVE(MAST SLOT ROTATED 90
FROM THE SET SCREWS). PUT A DROP OF THREADLOCKER ON THE
THREADS OF THE TWO UPPER SET SCREWS. EVENLY TIGHTEN DOWN
THE TWO SET SCREWS TO CLAMP THE STARLINK MAST .
BAIRD MOUNTING SYSTEMS
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
TITLE:
THREE PLACE DECIMAL
PM-STRLNK INSTRUCTIONS
DO NOT SCALE DRAWING
ITEM
A
B
C
D
SCAN QR CODE FOR
INSTRUCTIONAL VIDEO
CEDAR FALLS, IA 50613
PHONE: 319-233-3561
SALES@BAIRDMOUNTS.COM
DESCRIPTION
INGROUND POLE MOUNT
5/16"x1/2" LONG SET SCREW
ALLEN WRENCH 5/32" HEX
THREAD LOCKER
DRAWN BY DATE
11/15/23
-
MATERIAL FINISH
STEEL HDG
DWG. PURPOSE SHEET
CUSTOMER 1OF2
PART. NO.
PM-STRLNK
DWG. NO.
PM-STRLNK INSTRUCTIONS
QTY
1
3
1
1
SCALE
-
