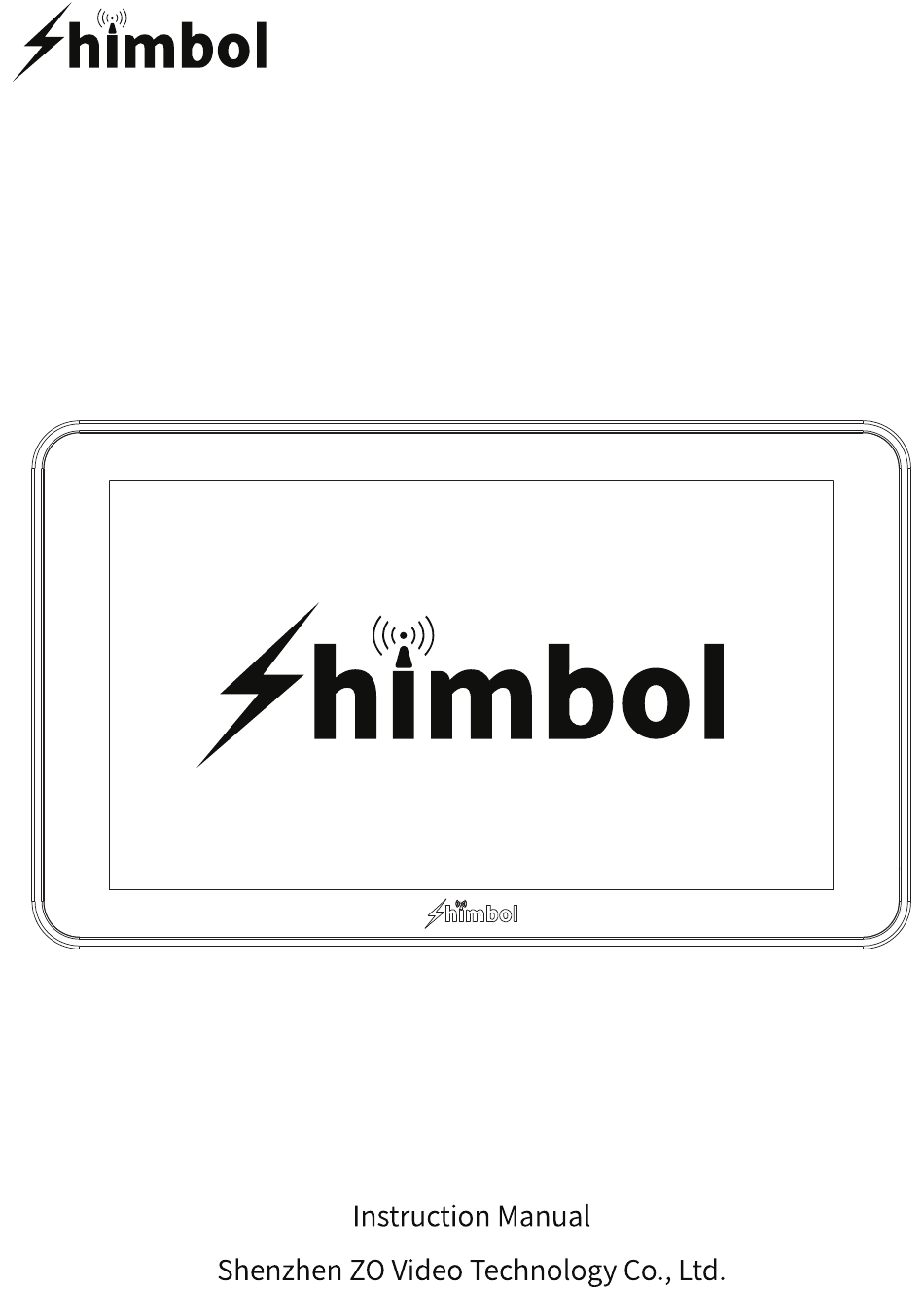

- Page 1 Video Recording Monitor MEMORY Ⅰ PRO...
- Page 2 Packing list SD card Monitor Tempered Screen Protector User Manual HDMI Cable Cable Hot Shoe Mount Monitor*1 HDMI Cable*1 SD Card*1 Tempered Screen Protector*1 Hot Shoe Mount*1 User Manual*1 I Cable*1...
- Page 3 Buttons and Ports HDMI Interfaces 1/4"-20 Debug Port Thread Hole NP-F Battery Plate SDI Interfaces...
-
Page 4: Table Of Contents
Catalog 1. Monitors Assist Icons------------------------------------- 4 2. User Interface ---------------------------------------------- 6 3. Operation Guide ------------------------------------------ 8 ------------------------------------------------ 8 3.1 Boot Method ---------------------------- 8 3.2 HDMI-SDI Interface Description ---------------------------------------- 8 3.3 RGB Gain and Offset ----------------------------------- 9 3. 4 Recording And Playback ------------------------------------------- 10 3. -
Page 5: Monitors Assist Icons
Switching Signal HDMI-SDI Scope Menu Marker Menu Matte... - Page 6 Focus Menu Exposure Menu Color Menu Lock Screen Main Meun...
-
Page 7: User Interface
User Interface 3840*2160 30p IN > HDMI 7.6V Video Input Resolution Zoom SD Card 3D-LUT Power Indication Switching Signal Waveform Menu 8 8 9 Marker Menu Focus Menu Exposure Menu Color Menu System Settings Playback Button Audio Meter REC Button... - Page 8 User Interface 3840*2160 30p IN > HDMI 3840*2160 30p 7.6V IN > HDMI 7.6V Scope menu Marker menu Waveform RGB-paral Histogram Vector Safe area Grip Anamorphic Next Opacity Safe area Color Width Ratio Scope Menu Marker Menu 3840*2160 30p IN > HDMI 7.6V 3840*2160 30p 7.6V...
-
Page 9: Operation Guide
Operation Guide 3.1.Boot Method Short press the power on/off button to turn on the monitor, long press 3 seconds to turn it off. 3.2.HDMI-SDI Interface Description SDI interface is located on the back of the host, HDMI interface is located on the side of the host, with a dedicated HDMI/SDI cable for close-up real-time monitoring. -
Page 10: Recording And Playback
Operation Guide 3.4.Recording Playback a. Custom File Name 3840*2160 30p 7.6V IN > HDMI Recording and Playback Menu 显示 Display Mode Trigger User Timecode Recording Definition Recording 设置 File Naming & Playback -SCE-001 Setting 功能 Function 系统 System Trigger/TimeCode camera synchronization recording function This position represents the camera position, click up and down to adjust This position represents the shooting site, click up and down to adjust This position represents the number of cameras, it is not adjustable and... -
Page 11: Format Sd Card
Operation Guide 3.5.Format SD Card 3840*2160 30p IN > HDMI 7.6V Display Scan Normal Underscan Backlight Recording & Playback Volume Setting SD card format Function Fan status: Automatic Off Slow Fast System 3.6.Shortcut Key Preset There are two shortcut keys, F1 and F2, on the top of the host, and you can choose function presets. -
Page 12: High Precision Waveform
3.7.High Precision Waveform 3840*2160 30p 7.6V IN > HDMI Scope menu Waveform RGB-paral Histogram Vector Opacity 3.8.Matte 3840*2160 30p IN > HDMI 7.6V Safe area Grip Matte Next Matte 100% Mode... -
Page 13: Lut Input Method
Operation Guide 3.9. 3D-LUT Input Method 3840*2160 30p 7.6V IN > HDMI Color menu 3D-LUT Gamma ColorTemp Preset User LUT Selection LUT file XXXXXXXXXX HDMI-LUT Output SDI-LUT Output Import Delete Place the LUT file in the LUT folder on the SD card and insert the SD card into the monitor Click the Color Menu-3D-LUT, turn on , and then selecting... -
Page 14: Lut Output Method
Operation Guide 3.10 3D-LUT Output Method 3840*2160 30p IN > HDMI 7.6V Color menu 3D-LUT Gamma ColorTemp Preset User LUT Selection LUT file XXXXXXXXXX HDMI-LUT Output SDI-LUT Output Import Delete Click the color management-3D-LUT icon, after opening select the corresponding SDI-LUT output and HDMI-LUT output functions, click the The LUT for HDMI/SDI output is the same as the LUT that is turned on. -
Page 15: Notes
Notes 1.Exceptions in Connection Zoom, Anamorphic, Waveform, these three functions can only be opened one at a time. Such as when the Anamorphic function is open, has opened the Zoom or Waveform will be forced to close 2.SD Card Description： SD Card Identification and Use Problems 2.1 The SD card of this product does not support hot-swapping, if the SD card is inserted and removed during use, causing abnormalities such as the card cannot be recognized and the screen interface cannot be operated, please... -
Page 16: Technical Parameters
Technical Parameters Model No.: MEMORYⅠPRO Screen Size 5.5''TP Screen Resolution 1920*1080 2000cd/m² Brightness Interface: Viewing Angle： < 12W 178° （H/V） DC In , HDMI input, SDI input, HDMI output, SDI output， 3.5mm Interface: Headphone out, SD card Unit Size 147.8*88.8*26.5mm Contrast Ratio 1200：...
