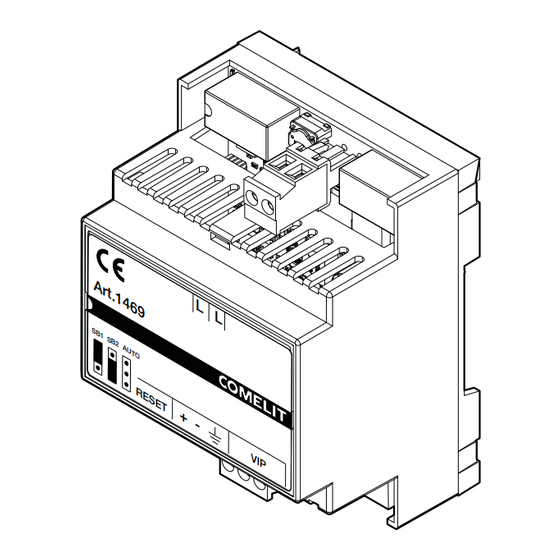

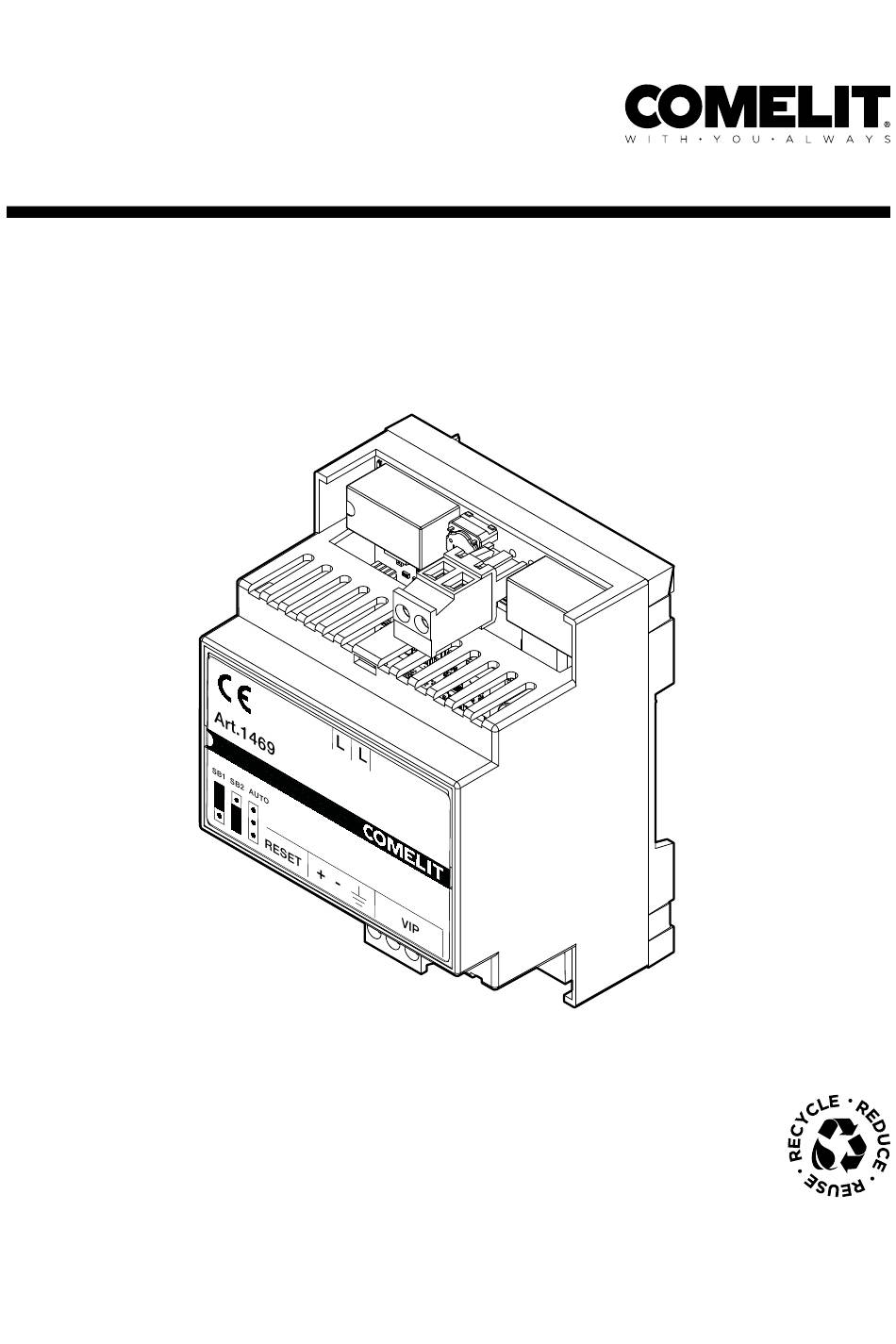

1469 P R O G R A M M I N G M A N U A L Join us in taking care of our planet...
Page 2
| Table of contents | Simplebus interface for ViP system base Interface for the management of hybrid video entry phone system configurations with door-entry phones and door entry monitors using 2-wire technology (SimpleBus and SimpleBus 2) and devices using IP technology for the basic system structure (external units, switchboards, actuator modules, call logs).
| Table of contents | Table of contents Installing software and connecting to modules Searching for devices to configure Device parameters Information Addressing Directories Lock-release functions Maintenance Restarting the device Resetting the device Updating device firmware Saving the configuration Resetting the configuration...
| Table of contents | Installing software and connecting to modules • System requirements: Min. operating system Windows 7-64bit, min. NET Framework: 4.7.2, min. CPU 2GHz Dual Core, min. RAM 4GB; min. free memory 200MB • Download the ViP Manager software from the website pro.comelitgroup.com and run the installation file, following the on-screen instructions.
Page 5
| Table of contents | f Art. 1469 has an Ethernet port configured by default in Auto IP; press Auto IP [4] to assign an IP address to your PC (the IP Address, Subnet Mask and Default Gateway fields will be completed automatically by the software).
| Table of contents | Device parameters The parameters used to configure art. 1469 are listed below. Note: after changing the parameters on a page, you need to press Write page before exiting the section you are editing, in order to save the changes to the device.
Page 7
| Table of contents | • ViP address: ViP address corresponding to the Simplebus internal unit • Master / Slave EXTERNAL UNITS • External units ViP address: enter the ViP address for all external units that need to be reached by the Simplebus internal unit INTERNAL UNITS INPUT FUNCTION (PAN/AL –...
| Table of contents | VIP CAMERAS • Actuator code / address: program the Simplebus address programmed on the internal units to examine the associated cameras. • Camera ViP address: enter the ViP address for the remote camera module art. 1445H. •...
| Table of contents | LOCK-RELEASE WITHOUT CALL This section is used to configure the actions to be carried out if a lock-release command is sent, using a suitably configured button, from the internal unit while there is no call with an external unit in progress. •...
| Table of contents | Resetting the device The factory settings of the module can be restored. Proceed as follows: 1. Select the module in the Devices list 2. Right-click on the description (a pop-up with 5 sub-menus will appear) 3.
