1. Setup
► Remove remote from box.
► Remove battery cover plate on rear and remove battery to access and remove plastic battery isolating tab.
► Re-insert battery.
*Linx remotes should be kept out of reach of children at all times.
2. Set the number of Channels (for 15 channel remote)
2. Set the number of Channels (for 15 channel remote)
► Hold LEFT and RIGHT buttons simultaneously for 2 seconds.
► LCD should display C first, then 15 after about 3 seconds.
► Use LEFT or RIGHT to change the number of required channels.
► Press and hold STOP button for 3 seconds, "O" will appear, the new settings are saved.
(This hides the unused channels, which can be shown again by repeating the above steps)
3.Pairing Remote to Motor
►Select the desired Channel on remote (15 Channel Remote Only).
►Press and hold the button on the motor head for about 2 seconds
until the motor jogs and gives 1 long beep.
►Hold the STOP button on remote for 5 seconds (motor double
jiggles in response).
ONLY WORKS WITHIN 7 SECONDS OF POWERING THE MOTOR.
4. Check Motor Direction
► WARNING: MAKE SURE DIRECTION IS CORRECT BEFORE SETTING LIMITS.
UP should roll the blind fabric onto the roller.
► To change direction, hold the UP and DOWN buttons simultaneously for about 2 seconds.
► Motor jogs to confirm direction changed.
5. Setting Limits
5a UPPER LIMIT
► Move to the desired upper limit position blind will move in Step Mode
► Hold the up or down button for 3 seconds for continuous running. BE CAREFUL AS LIMITS AREN'T SET YET.
► To set the upper limit, hold the UP and STOP buttons simultaneously for 3 seconds. (2 jogs + 3 beeps).
5b LOWER LIMIT
► Move to the desired lower limit position blind will move in Step Mode.
► Hold the UP or DOWN button for 3 seconds for continuous running. BE CAREFUL AS LIMITS AREN'T SET YET.
► To set the lower limit, hold the DOWN and STOP buttons simultaneously for 3 seconds. (2 jogs + 3 beeps).
► BOTH LIMITS ARE NOW SET.
sales@australianawning.group

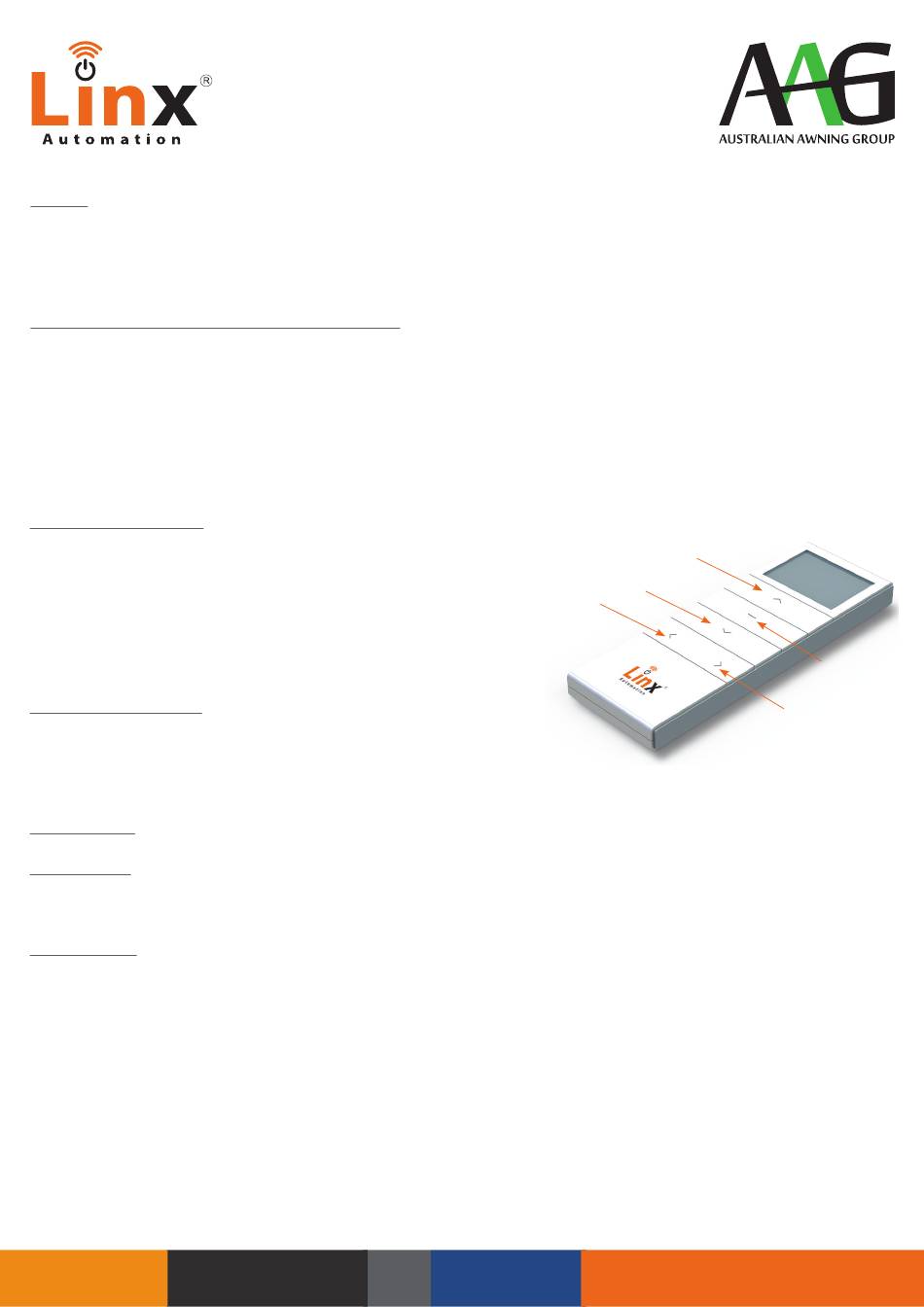

Linx® Nova 20/15
Motor Instructions
1300 791 010
UP Button
DOWN Button
LEFT Arrow
www.australianawning.group
linxautomation.com.au
STOP Button
RIGHT Arrow
