ELECTRONIC DRUM KIT
SKU: LYXEDM800
Sound Module Operations Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LyxJam 8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lyx Pro LyxJam 8

Summary of Contents for Lyx Pro LyxJam 8

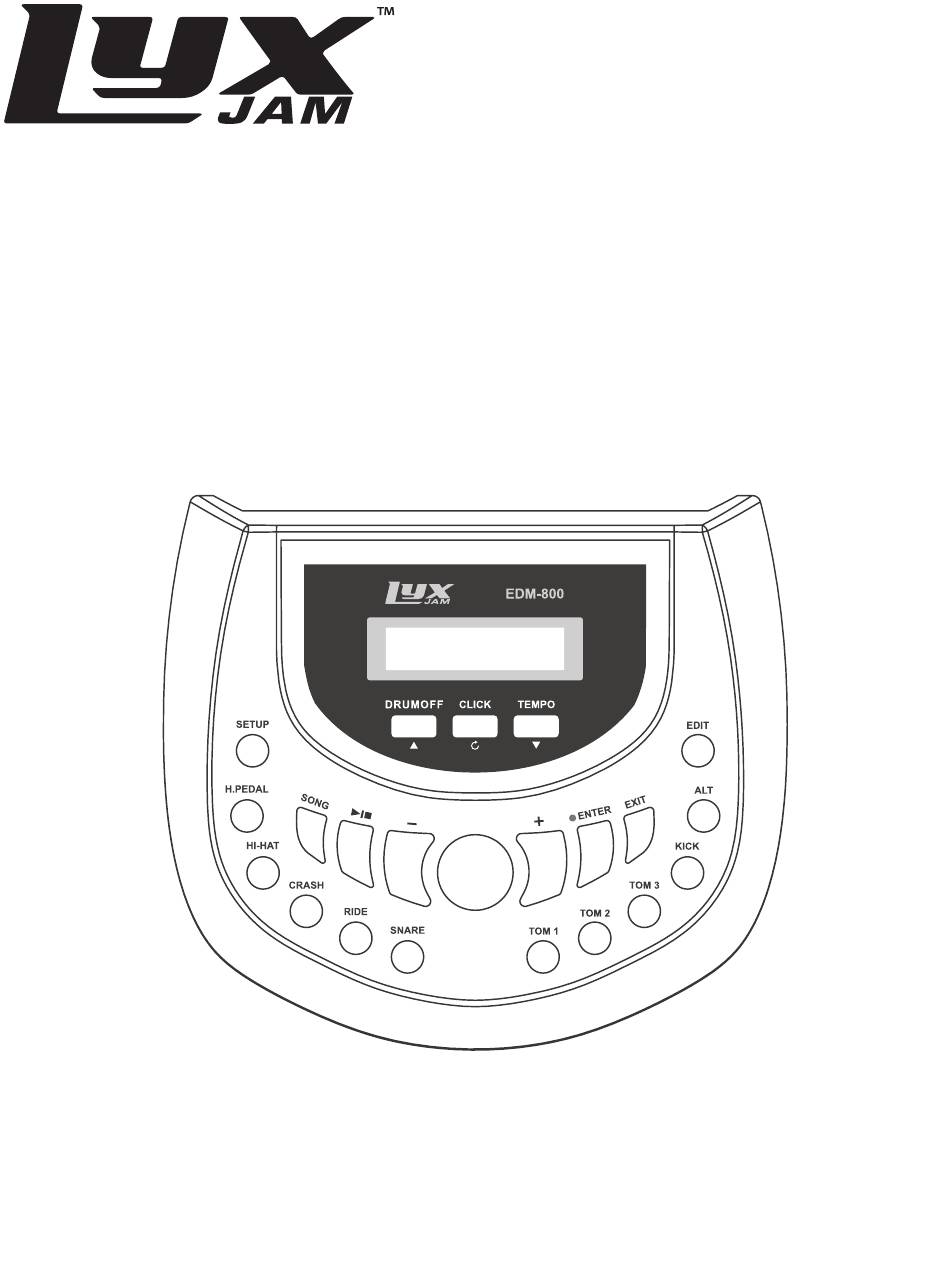

  • Page 1 ELECTRONIC DRUM KIT SKU: LYXEDM800 Sound Module Operations Guide...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS FEATURES SAFETY PRECAUTIONS FCC NOTICE CONTROL PANEL OVERVIEW REAR PANEL OVERVIEW BLUETOOTH SETUP KIT PERFORMANCE DISPLAY SONG PLAYBACK EDITING A KIT SYSTEM SETUP SYSTEM SETUP OPTIONS ADVANCED SYSTEM SETUP SONG AND TONE LIST CARE AND MAINTENANCE SPECIFICATIONS WARRANTY...

  • Page 3: Features

    Thank you for purchasing the LyxJam Electronic Drum Kit. This Sound Module Operations Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this guide may void the limited warranty. Please read all directions before using the product and retain this guide for reference.

  • Page 4: Fcc Notice

    - Strong vibrations • This drum contains digital circuitry and could cause interference if placed too close to radio or television receivers. If interference occurs, move the drum further away from the affected equipment. FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 5: Control Panel Overview

    CONTROL PANEL OVERVIEW DRUMOFF: Mutes the drum track of the current song. ▲ (UP): Return to the previous option in the menu. 2. CLICK: Activates or deactivates the metronome. (UNDO): Restore the current parameter to its previous status before being modified. 3.

  • Page 6: Rear Panel Overview

    REAR PANEL OVERVIEW 15. EXT1: External drum trigger input 1, for use with cymbal-type drum pads. 16. EXT2: External drum trigger input 2, for use with non-cymbal-type drum pads. 17. LINE OUT: Main analog output of the sound module. Connect your amp or mixer to this jack using a ¼″ TRS cable.

  • Page 7: Kit Performance Display

    KIT PERFORMANCE DISPLAY When you power on the sound module, the first interface that appears is the Kit Performance display. From this screen, you can perform the following operations: Select a Kit • From the Kit Performance screen, use the Value Rotary dial or +/- buttons to select a kit. The display will show the current kit number and name.
  • Page 8 • Use the ▲/▼ buttons to select and the +/- buttons to set the following parameters: - TEMPO: Sets the recording tempo - CLICK: Sets whether the metronome is on or off - TIME-SIG: Sets the time signature of the recording •...

  • Page 9: Song Playback

    SONG PLAYBACK To enter this interface, press the SONG button. From this interface, you can perform the following functions: Song Playback • Use the +/- buttons or the Value Rotary dial to select the song or user song you want to play. •...
  • Page 10 Buttons to select the part that way. The name of the trigger will appear in the top left corner of the display. • Press the Drum Buttons to preview the sounds. • Use the ▲/▼ buttons to select a parameter. •...

  • Page 11: System Setup

    SYSTEM SETUP Press the SETUP button to enter the System Setup interface. These parameters are global settings, and when you adjust them, they affect the entire sound module, and will not change even when you switch kits. • Use the ▲/▼ buttons to select a parameter. •...
  • Page 12 parameters are visible only when specific triggers are selected, such as rim- or pedal-related parameters. NOTE: for the dual-trigger mesh pads, parameters for the head and rim can be set separately. For other pads, the head and rim parameters share the same value. Use your hand or the drumstick to tap the part you want to edit, or use the Drum Buttons to select a part on the drum pad.
  • Page 13 appropriately. If the head of the pad is being triggered while playing the rim, turn this value up to address the issue. If the rim is being triggered while playing the head, turn this value down. SPLIT POINT: Sets the velocity split point of the snare rim. Below this value, the cross stick will be triggered, and above this value, a rimshot will be triggered.
  • Page 14 CLICK: Press the •ENTER button to see the detailed settings for the metronome. The following parameters are included: • CLICK: Activate or deactivate metronome - ON: metronome is on - OFF: metronome is off • VOICE: Adjust the sound of the metronome - Claves: metronome makes a claves sound - Beep: metronome beeps - Bell: metronome makes a bell sound...
  • Page 15 • THRESHOLD: The level above which compression is applied to the audio. • ATTACK TIME: Adjust how soon the compressor starts compressing the dynamics after the threshold is reached. Short attack times will result in a more rapid response to sudden, loud sounds, but will also make changes in volume significantly more pronounced to listeners.

  • Page 16: Song And Tone List

    SONG AND TONE LIST KIT TONES PLAYALONG SONG LIST KICK TONES Studio WalkWith- MelodicDeath Rock Trance 02 Tree Jazz Jazz Trance 03 Soul SambaDance Rock Indie 01 Trance 04 Latin RockBlues Metal Indie 02 Trance 05 Moskau 90’s Metal Trap 01 Heart Bossa Latin...
  • Page 17 TOM TONES RIDE TONES Rock1 House3 02 Latin3 Rock Techno 01 Rock1 R House4 02 Latin4 Rock B Techno 02 Rock2 House1 03 Session1 Rock E Trance Rock2 R House2 03 Session2 Jazz Rock3 House3 03 Session3 Jazz B Pop B Rock3 R House4 03 Session4...
  • Page 18 HI-HAT TONES PERCUSSION TONES Rock O TranceC 02 Cowbell ECowbell Rock C Trap O 01 FunkPerc01 DubFX01 Rock P Trap C 01 FunkPerc02 DubFX02 Rock Hf Trap O 02 8BitFX01 DubFX03 Rock Sp Trap C 02 8BitFX02 DubFX04 Jazz O 01 Trap O 03 8BitFX03 DubFX05...

  • Page 19: Care And Maintenance

    CARE AND MAINTENANCE This drum kit will need to be serviced by an authorized serviceperson when or if the following conditions occur: • The power supply cord or plug has been damaged • Liquid has been splattered into the unit or it has been exposed to rain •...

  • Page 20: Warranty

    LIMITED WARRANTY TO ORIGINAL CONSUMER This LyxJam Electronic Drum Kit (“Product”), including any accessories included in the original packaging, as supplied and distributed new by an authorized retailer is warranted by C&A Marketing, Inc. (the “Company”) to the original consumer purchaser only, against certain defects in material and workmanship (“Warranty”) as follows: To receive Warranty service, the original consumer purchaser must contact the Company or its authorized service provider for problem determination and service procedures.
  • Page 21 IN NO EVENT WILL THE COMPANY’S TOTAL CUMULATIVE LIABILITY ARISING FROM OR RELATED TO THE PRODUCT, WHETHER IN CONTRACT OR TORT OR OTHERWISE EXCEED THE FEES ACTUALLY PAID BY YOU TO THE COMPANY OR ANY OF ITS AUTHORIZED RESELLERS FOR THE PRODUCT AT ISSUE IN THE LAST YEAR FROM YOUR PURCHASE. THIS LIMITATION IS CUMULATIVE AND WILL NOT BE INCREASED BY THE EXISTENCE OF MORE THAN ONE INCIDENT OR CLAIM.

This manual is also suitable for:

Lyxedm800
