Summary of Contents for Audemo SYSTEMS DAM-2550 A

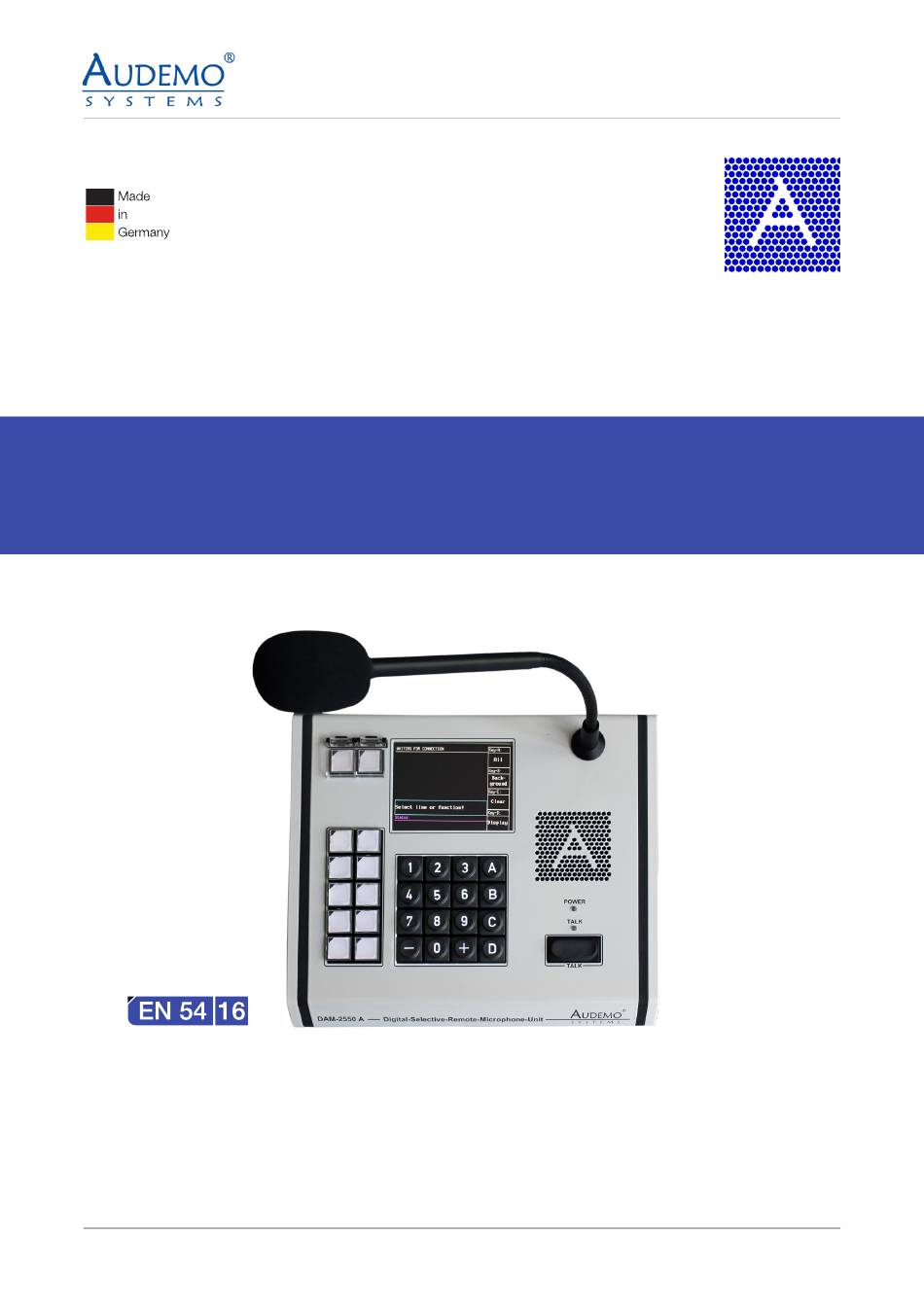

- Page 1 USER MANUAL DAM-2550 A Digital-Selective-Remote-Microphone-Unit ©2023 by AUDEMO-SYSTEMS®, Schatzbogen 62, 81829 München...
-
Page 2: Table Of Contents
CONTENTS 1. General ---------------------------------------------------------------------------------------------- 3 2. Safety Instructions ------------------------------------------------------------------------------- 4 3. Technical Features --------------------------------------------------------------------------------6 4. Operation ------------------------------------------------------------------------------------------- 7 5. Options ---------------------------------------------------------------------------------------------- 7 6. Technical Specifications ------------------------------------------------------------------------- 8 7. Installation and Front / Rear Connection -------------------------------------------------- 9 8.Environment Protection ------------------------------------------------------------------------ 11 ©2023 by AUDEMO-SYSTEMS®, Schatzbogen 62, 81829 München... -
Page 3: General
1. General This operation manual includes important notes on safe operation of the unit. Please read all instructions and safety regulations. Keep these instructions for future reference. Take care that the operation manual is available to all users. Our products are subject to continuous development. Therefore any technical modification subject to change without notice. -
Page 4: Safety Instructions
Do not open or modify the unit. 10. Opening of the security protected united for servicing, repair and so on is only al-lowed by the service department of AUDEMO SYSTEMS®. Interventions to the unit and breaking the seals will invalidate the warranty agreement! 11. - Page 5 DANGER! Risk of electric shock of dangerous voltage within the units enclosure Within the units enclosure there are uninsulated parts with high electric tension. Do not remove the cover. There are no user serviceable parts inside. DANGER! Possible Hearing Damage The system produces a volume level which could damage your hearing continuously or temporarily while listening to long to headphone or loudspeaker sound sources.
-
Page 6: Technical Features
PADES®2000-system (enabled with a Digital-Exterior-Signal- Connecting-Module DAM-2552 A as an option). Up to 8 pieces Digital-Remote-Microphone-Extension-Module DAM-2551 A could be connected to a DAM-2550 A, cabled each with a Remote-Microphone-Extension- Cable DAM-2584 A each and enabled with Extension-Software-License DAM-2597 A option. -
Page 7: Operation
• In order to quit the announcement, release the push-to-talk button. • Push the button C (CLEAR) in order to clear the chosen lines. Trigger a chime signal with a selective remote microphone DAM-2550 A (optional): • Press the push-button labeled with “gong“ to trigger manually a four-tone chime signal. -
Page 8: Technical Specifications
6. Technical Specifications Digital-Selective-Remote-Microphone-Unit (DAM-2550 A) Microphone cartridge – polar pattern Electret - cardioid Length of gooseneck 280 mm Memory button 10, illuminated Alarm button 2, illuminated, with cover Keyboard 10 + 6 buttons Push-to-talk button Colour-LCD- touch screen display TFT Dot-Matrix, 320 x 240 pixel, 88,9 mm (3.5 “) -
Page 9: Installation And Front / Rear Connection
Installation of the Remote Microphone Connection Box Reflection loss min. 35 dB at 100 MHz Insertion loss max. 0.3 dB/m at 250 MHz Differential mode delay max. 0.05 µs/m at 250 MHz Current rating Temperature range -40 to +70 °C Colour grey Dimensions (L x D) - Page 10 2550A POWER TALK ® LINE IN RJ 45 AUDEMO TALK S Y S T E M S DAM-2550A Numeric Keypad Function Keys Programmable Memory Keys Covered Alarm Buttons Press to Talk ©2023 by AUDEMO-SYSTEMS®, Schatzbogen 62, 81829 München...
-
Page 11: Environment Protection
Dispose a control center system with an accredited waste disposal company or your local disposal facility. Take care of applicable regulations. In case of doubt please contact your local disposal facility. User Manual DAM-2550 A Version 01052023 ©2023 by AUDEMO-SYSTEMS®, Schatzbogen 62, 81829 München...
