Summary of Contents for Urbanworx BP1080PDC

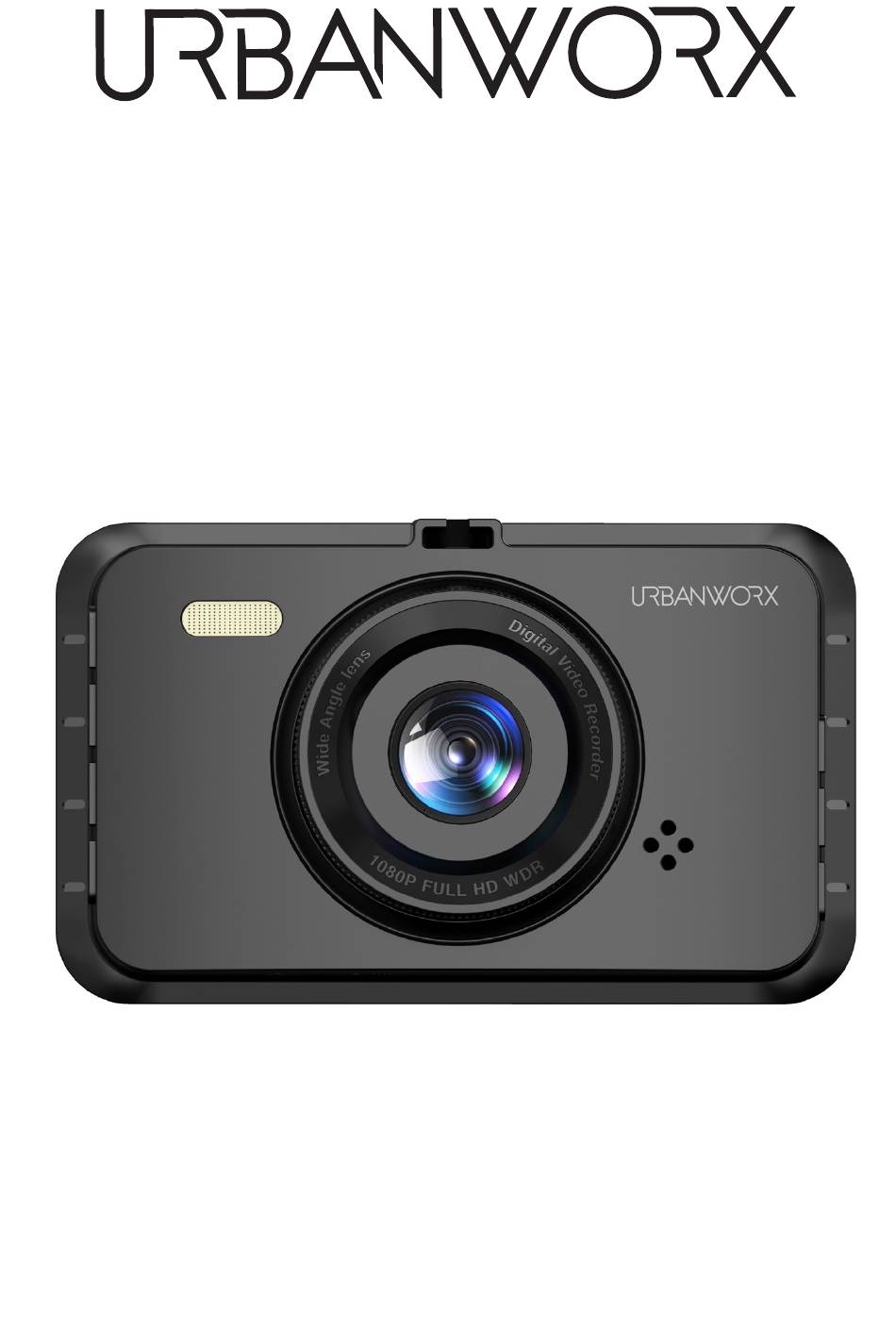

- Page 1 3.5” FULL HD DASH CAMERA BP1080PDC INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Installation Attaching Camera to the front window mount Connecting Power Cable Formatting the Memory Card Inserting Memory Card How to Use Volume Setting Video Resolution Photo Quality Video Resolution Exposure Compensation Night Vision Motion Detection Recording Audio Auto Screen Off Date &... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the product. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. -
Page 5: Product Overview
PRODUCT OVERVIEW 1. OK button 7. Menu button 13. Rear cam slot 2. Mode button 8. Down button 14. Bracket slot 3. Lock button 9. Reset button 15. Power slot 4. Power button 10.Mic 16. IPS LCD 5. TF card slot 11. -
Page 6: Installation
INSTALLATION 1. ATTACHING THE FRONT CAMERA TO THE WINDOW MOUNT Before the device can be used in a car, it is essential to first install a properly attached window mount. Make sure that you place the recorder in a safe, appropriate location where it will not obstruct the driver’s view. Clean windshield thoroughly before applying mount, and hold mount in place for 20 seconds to ensure an air tight seal. -
Page 7: Connecting Power Cable
INSTALLATION (CONT.) CONNECTING THE POWER CABLE Plug in the 12V Car adaptor into the car cigarette lighter, then run the cable along the passanger side of the car along the bottom edge of dashboard out of sight, and along the right and top side of the windowscreen to the dash cam as indicated below. -
Page 8: Inserting Memory Card
INSERT MEMORY CARD IMPORTANT INFORMATION Before proceeding with any video recording or image capturing, you must have an TF card (NOT SUPPLIED) inserted into the TF card slot for your files to be storage. Without doing so, you cannot record as the device has no internal storage. -
Page 9: How To Use
HOW TO USE VOLUME SETTING Use the following procedure to set the Volume Setting: 1. Press OK button to stop video recording 2. Press MENU button to enter Video Settings 3. Press the UP or DOWN button to navigate to choose the “Volume Setting”... -
Page 10: Photo Quality
HOW TO USE (Cont.) PHOTO QUALITY 1. Press MENU to enter Photo quality Settings 2. Press the UP or DOWN button to choose the “Photo quality” option:12M 4032*3024/10M 3648*2736/8M 3264*2448/ 5M 2592*1944/3M 2048*1536 3. Press OK to view the current selection 4. -
Page 11: Night Vision
HOW TO USE (Cont.) NIGHT VISION Recommend setting: On 1. Press MENU to enter night vision Settings 2. Press the UP or DOWN button to choose to the “Night vision” option 3. Press OK to view the current ON/OFF status for this feature 4. -
Page 12: Auto Screen Off
HOW TO USE (Cont.) AUTO SCREEN OFF 1. Press MENU to enter Auto Screen off Settings 2. Press the UP or DOWN button to choose to the “Auto screen off” option: Off/5 S/10 S/30S/1min/3mins/5mins 3. Press OK to view the current status for this feature 4. -
Page 13: Default Factory Setting
HOW TO USE (Cont.) DEFAULT FACTORY SETTINGS Performing this operation will reset all of your device’s settings to their original values. Note: any user-customized settings will be lost. 1. Press MENU to enter Default Settings 2. Press the UP or DOWN button to choose the “Default Settings” option 3. -
Page 14: Firmware Information
HOW TO USE (Cont.) FIRMWARE INFORMATION 1. Press MENU to enter Firmware information view 2. Press OK to enter firmware information view 3. Press MENU to exit Firmware information UPDATING FIRMWARE The following procedure will allow you to use the official website firmware to update your Dashboard Camera. -
Page 15: Specifications
SPECIFICATIONS Video Resolutions 1920 x 1080p @ 30fps Detection Angle Up to 120° Memory Card TF Card (max 32GB) Power Supply 12V 1A / 5VDC 1A Video Format Dimensions 96 (w) x 38 (d) x 58 (h) mm... - Page 16 CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
