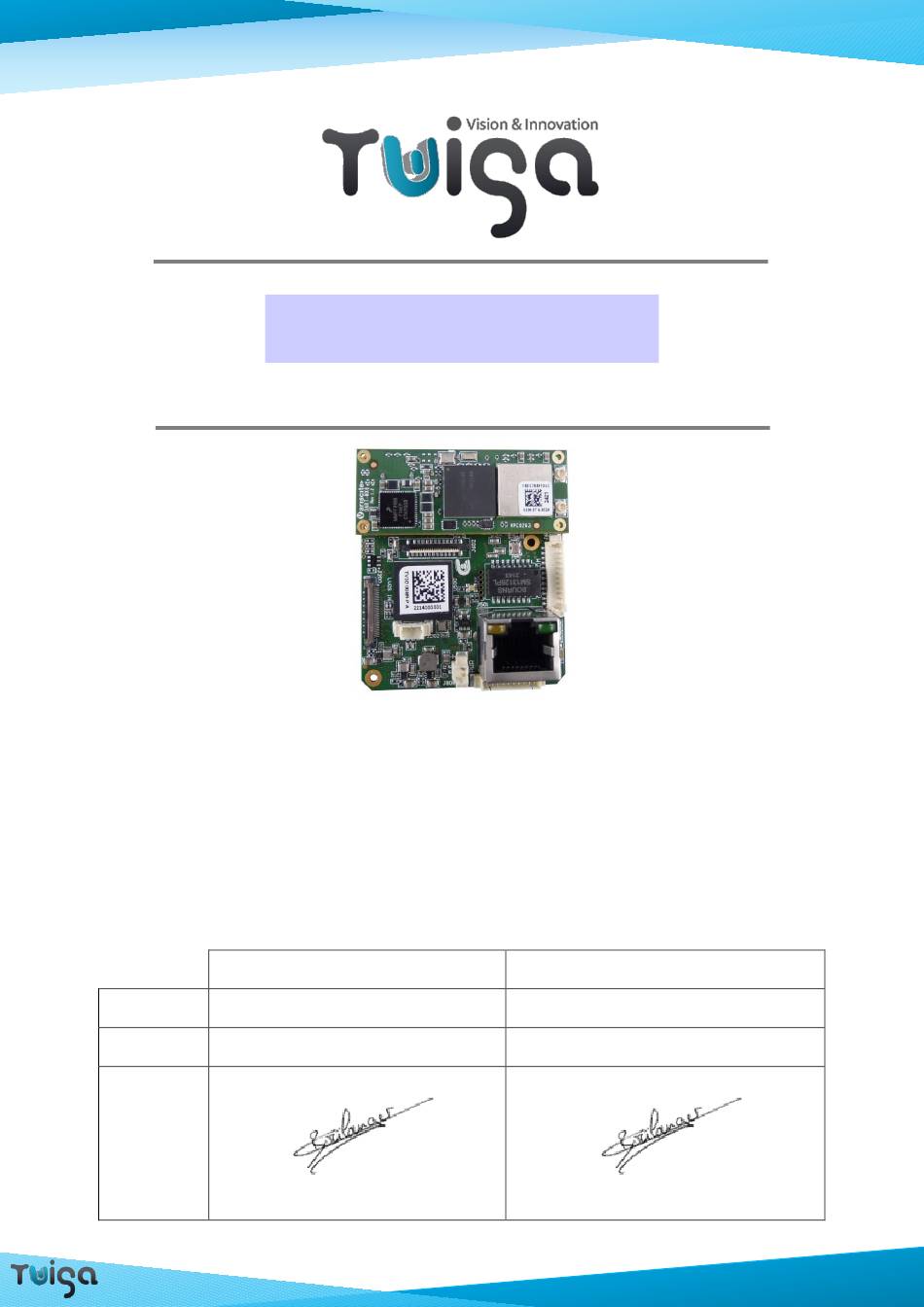

MAMBA Neo - TECHNICAL MANUAL
TV10 00
666
P/N – TV20 0011: Red Mamba Neo video encoder for LVDS zoom cameras
P/N – TV50 0011: Cable kit for TV20 0011 - Red Mamba Neo IP streaming platform
Includes: 30-way micro-coax camera cable, 2-way cable (power supply), 12-way cable (RS232/TTL/GPIOs), Wi-Fi antenna

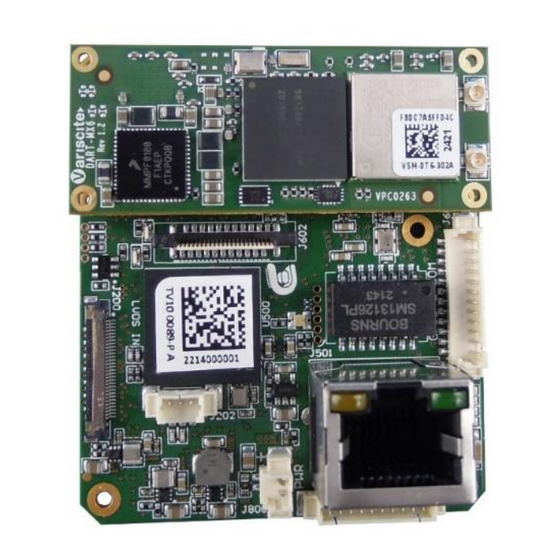

P/N – TV20 0012: Blue Mamba Neo video encoder for LVDS zoom cameras
P/N – TV50 0012: Cable kit for TV20 0012 - Blue Mamba Neo IP streaming platform
Includes: 30-way micro-coax camera cable, 2-way cable (power supply), 12-way cable (RS232/TTL/GPIOs)
P/N – TV50 0013: Evaluation kit for TV20 0011 / TV20 0012 - Red / Blue Mamba Neo
Includes: 30-way micro-coax camera cable, 2-way jack cable (power supply), 12-way cable (RS232/TTL/GPIOs), Wi-Fi antenna, Ethernet cable,
HDMI A to Micro HDMI D cable, 12V 2A jack universal power supply
Date
07/04/2023
Name
Cédric Boulanger
Signature
MAMBA Neo - TECHNICAL MANUAL
Technical Manual
MAMBA Neo
Writing
Approval
11/04/2023
Cédric Boulanger
1/23
1/23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Twiga MAMBA Neo
Summary of Contents for Twiga MAMBA Neo
- Page 1 Includes: 30-way micro-coax camera cable, 2-way cable (power supply), 12-way cable (RS232/TTL/GPIOs) P/N – TV50 0013: Evaluation kit for TV20 0011 / TV20 0012 - Red / Blue Mamba Neo Includes: 30-way micro-coax camera cable, 2-way jack cable (power supply), 12-way cable (RS232/TTL/GPIOs), Wi-Fi antenna, Ethernet cable,...
-
Page 2: Revision History
MAMBA Neo - TECHNICAL MANUAL TV10 00 2/23 Revision History Date Revision Description Modified by Note 10/05/2022 Creation of the document 07/04/2023 Update board and kit references MAMBA Neo - TECHNICAL MANUAL 2/23... -
Page 3: Table Of Contents
MAMBA Neo - TECHNICAL MANUAL TV10 00 3/23 Table of content Revision History ................................2 Table of content ................................3 Presentation ................................5 1.1. Synoptic ................................5 1.2. Features ................................6 1.3. Video Flow ................................. 7 1.3.1. Flowsheet ..............................7 1.3.2. - Page 4 MAMBA Neo - TECHNICAL MANUAL TV10 00 4/23 2.4.5. J900 – Add-on Input ..........................19 2.4.6. J202 – FPGA GPIO ............................ 20 2.4.1. J500 – Ethernet remote .......................... 20 2.4.2. J501 – Ethernet ............................21 2.4.3. J601 – MicroSD ............................21 2.4.4.
-
Page 5: Presentation
TV10 00 5/23 1. Presentation Mamba Neo provides H.264 encoded video via Ethernet & Wifi. The user controls the board via a website. The user can also send VISCA commands to control the camera over ethernet. 1.1. Synoptic HDMI Micro J400... -
Page 6: Features
MAMBA Neo - TECHNICAL MANUAL TV10 00 6/23 1.2. Features Board specific: • Supports digital 8 channels LVDS input • Supports MIPI-CSI2 • Micro HDMI 1.4 output • MicroSD card • Ethernet 10/100 • ONVIF Protocol (S Profile) • Set of GPIOs •... -
Page 7: Video Flow
MAMBA Neo - TECHNICAL MANUAL TV10 00 7/23 1.3. Video Flow 1.3.1. Flowsheet HDMI output LVDS input i.MX6 Quad or J200 J400 Dual FPGA Processor Ethernet Add-on : YCbCr J500-J501 BT1120 J900 WiFi Red Mamba only MIPI CSI2 J602 eMMC/SD J601 1.3.2. -
Page 8: Communication Flow
MAMBA Neo - TECHNICAL MANUAL TV10 00 8/23 1.3.2.3. Add-on Input Additional video input/output can be sent through the add-on connector on the back of Mamba board. The video input is multiplexed via the FPGA and processed by the iMX6 Processor. -
Page 9: Video Input/Output Description
MAMBA Neo - TECHNICAL MANUAL TV10 00 9/23 1.3.3.3. Add-on Input communication The add-on input communication is done by the I²C or SPI or CAN Signal I²C Connector Hirose DF40HC(4.0)-50DP- 0.4V(51) Link B to B connector Connector Hirose DF40HC(4.0)-50DS- Mamba Board 0.4V(51) -
Page 10: Hdmi Output
MAMBA Neo - TECHNICAL MANUAL TV10 00 10/23 1.4.4. HDMI Output Up to 1080p60 output Connector: Micro HDMI Molex 46765-0301 – J400 Mating: Micro HDMI 1.4.5. Ethernet Output Ethernet 10/100 Connector: RJ45 Amphenol RJHSE-3381 – J501 Status LED: orange Activity LED: green Mating: RJ45 1.4.6. -
Page 11: Debug / Board
MAMBA Neo - TECHNICAL MANUAL TV10 00 11/23 1.5.5. Debug / Board Communication: UART TTL Connector: JST SM08B-SRSS-TB (LF)(SN), 12 way – J1400 Signals: Rx, Tx Mating: JST SHR-08V-S-B 1.6. Power supply The power supply of the board is +6V to 12V. It powers up the camera. -
Page 12: Physical Dimensions
MAMBA Neo - TECHNICAL MANUAL TV10 00 12/23 1.7. Physical dimensions Figure 1: Top dimensions of the Mamba board NOTE: J900 (Addon connector) is located at 34.35mm from the bottom, and at 8.9mm from the left side. MAMBA Neo - TECHNICAL MANUAL... -
Page 13: Hardware
MAMBA Neo - TECHNICAL MANUAL TV10 00 13/23 2. Hardware 2.1. Connectors overview – Red Mamba Wifi antenna USB OTG & connector UART Debug J1400 MIPI J602 GPIO LVDS J600 J200 Ethernet FPGA GPIO J501 J202 Remote Power In Ethernet... -
Page 14: Connectors Overview - Blue Mamba
MAMBA Neo - TECHNICAL MANUAL TV10 00 14/23 2.2. Connectors overview – Blue Mamba USB OTG & UART Debug J1400 MIPI J602 GPIO LVDS J600 J200 Ethernet FPGA GPIO J501 J202 Remote Power In Ethernet J800 J500 Figure 5: Top view of the Blue Mamba board... -
Page 15: Led Signalization
MAMBA Neo - TECHNICAL MANUAL TV10 00 15/23 2.3. Led signalization 2 green Leds (GPIO) FPGA Led (RGB) Two green Leds are configurable via the website as GPIOs. The RGB Led shows the FPGA status: / Orange: video input not locked... -
Page 16: J200 - Lvds Input
MAMBA Neo - TECHNICAL MANUAL TV10 00 16/23 2.4.2. J200 – LVDS Input Pin No. Name Level TX4_N TX4_P TX5_N TX5_P TX6_N TX6_P TX7_N TX7_P VCAM +[6-12V] VCAM +[6-12V] VCAM +[6-12V] VCAM +[6-12V] VCAM +[6-12V] RxD (TTL camera input) +3V3... -
Page 17: J600 - Gpios
MAMBA Neo - TECHNICAL MANUAL TV10 00 17/23 2.4.3. J600 – GPIOs Pin No. Name Level 12 Power out 11 RS485 TX_P (Half Duplex TX_P and RX_P) 10 RS485 TX_N (Half Duplex TX_N and RX_N) 9 RS485 RX_N (UART Tx) -
Page 18: J602 - Mipi Input
MAMBA Neo - TECHNICAL MANUAL TV10 00 18/23 2.4.4. J602 – MIPI Input Contact Side Pin No. Name Level 1 GND 2 MIPI D0 N 3 MIPI D0 P 4 GND 5 MIPI D1 P 6 MIPI D1 N 7 GND... - Page 19 MAMBA Neo - TECHNICAL MANUAL TV10 00 19/23 2.4.5. J900 – Add-on Input Pin No. Name Level Pin No. Name Level 1 GND 2 GND 3 YC CLK 4 USB_H D_N 5 YC OK 6 USB_H D_P 7 YC NRESET...
-
Page 20: J202 - Fpga Gpio
MAMBA Neo - TECHNICAL MANUAL TV10 00 20/23 2.4.6. J202 – FPGA GPIO Pin No. Name Level 1 GND 2 FPGA GPIO1 3 FPGA GPIO0 2.4.1. J500 – Ethernet remote Pin No. Name Level 1 GND 2 POE_CRX 3 POE_CTX... -
Page 21: J501 - Ethernet
MAMBA Neo - TECHNICAL MANUAL TV10 00 21/23 2.4.2. J501 – Ethernet Pin No. Name Level 1 TX_P ±2.5V 2 TX_N ±2.5V 3 RX_P ±2.5V 4 POE_SPARE 1 N 5 POE_SPARE 1 P 6 RX_N ±2.5V 7 POE SPARE 2 P 8 POE SPARE 2 N 2.4.3. -
Page 22: J400 - Micro Hdmi
MAMBA Neo - TECHNICAL MANUAL TV10 00 22/23 2.4.4. J400 – Micro HDMI Standard Micro HDMI v1.4. 2.4.5. J1400 – USB OTG & UART Debug Pin No. Name Level 1 V_REG 3.3V 2 UART1_TX 3.3V 3 UART1_RX 3.3V 4 GND... -
Page 23: Rs485/Ttl Configuration
MAMBA Neo - TECHNICAL MANUAL TV10 00 23/23 2.4.6. RS485/TTL configuration The serial interface of the Mamba board can be configured either in RS485 or in UART TTL (3V3 level). By default, the Mamba board is configured in RS485. To switch from RS485 to UART TTL configuration some hardware modifications are needed.
