品名：824426㊥Ｂ Ｓ向取説Ｓ Ｃ Ｄ １ ８ １ Ｐ Ｂ
サイズ：210×297（A4） 20ページ
材質：上質紙 菊判48.5kg（81.4g ／㎡）
刷色：1C（Black）
Black

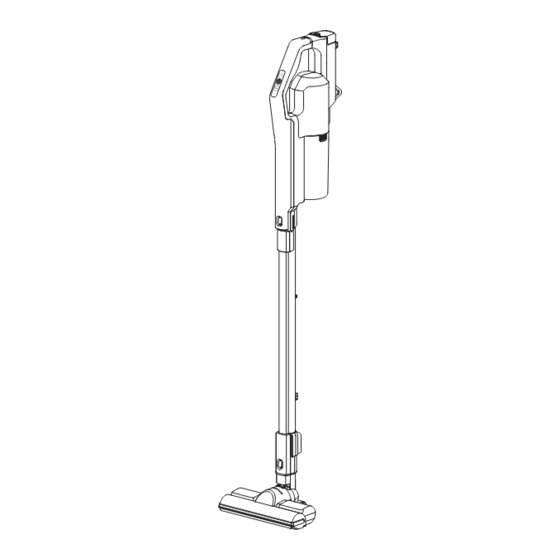

Rechargeable cyclone vacuum cleaner
Indoor / Household Use Only
User manual
Contents
Preparations before use
Safety precautions ..................................................2
Using precautions ...................................................4
Parts .......................................................................5
How to use
Preparation .............................................................7
How to use..............................................................9
Cleaning and maintainance ..................................12
How to replace the battery....................................16
Other
Troubleshooting ....................................................17
Specifications .......................................................18
Warranty and After-sales Service .........................19
Warranty card ......................................... Back cover
SCD-181P
SCD-181P
Advertisement
Table of Contents
Related Manuals for Iris Ohyama SCD-181P
Summary of Contents for Iris Ohyama SCD-181P
-
Page 1: Table Of Contents
品名：824426㊥Ｂ Ｓ向取説Ｓ Ｃ Ｄ １ ８ １ Ｐ Ｂ サイズ：210×297（A4） 20ページ 材質：上質紙 菊判48.5kg（81.4g ／㎡） 刷色：1C（Black） Black SCD-181P Indoor / Household Use Only Rechargeable cyclone vacuum cleaner SCD-181P User manual Contents Preparations before use Safety precautions ..........2 Using precautions ...........4 Parts ...............5 How to use Preparation .............7... -
Page 2: Safety Precautions
Black SCD-181P Safety precautions Read and follow this “Safety Precautions” carefully to ensure proper use of the product. These precautions are safety precautions you must observe to prevent any injury and damage to property. Examples of symbols This symbol means... - Page 3 Black SCD-181P Use the charger adapter properly. ● Do not touch the brushroll on the suction head ● Remove dust from the power plug regularly Doing so could pull you in and cause an Dust buildup may lead insulation failures due injury.
-
Page 4: Using Precautions
Black SCD-181P Safety precautions Continued ● Do not sit on or lean against the product ● When unplugging the charger ● Do not use in close proximity of children adapter, grasp and pull it by the ● Do not let children play with this product plug, not by the cord Or it may cause injury. -
Page 5: Parts
Black SCD-181P Parts Main unit Dust cup Battery cover Handle Exhaust filter Control panel Sponge filter Air vent Cyclone unit (top) Mesh filter Non-slip rubber Cyclone unit Dust cup (bottom) Charging port Cleaning brush Pipe release button Dust cup case... - Page 6 Black SCD-181P Parts Continued ■ Operation panel Battery indicator lights Brush rotation button Standard/Turbo mode button Off (Stop) button Front side ■ Accessories Charger adapter Nozzle for gaps Cleaning brush It can be used as a brush nozzle when turning the suction head on its side.
-
Page 7: Preparation
Black SCD-181P Preparation ■ How to assemble the When using as a handheld vacuum cleaner • Insert the suction head or another attachment vacuum cleaner directly into the main unit. Depending on the intended use, the suction head or other attachment can be attached to the main unit or to the extension pipe. - Page 8 Black SCD-181P Preparation Continued ■ Charging the battery ■ About the remaining battery power ● After purchasing this product, the battery must be charged. Be sure to charge the battery before use. It • The battery indicator light will flash when the takes about 4 hours for the battery to become fully remaining battery power is low.
-
Page 9: How To Use
Black SCD-181P How to use Press the button to select the mode of When you have finished cleaning, press operation the OFF button Standard/Turbo mode • To turn off. • Press the standard/turbo mode button to begin running the product in standard mode. press the standard/turbo mode button again to run the product in turbo mode instead. - Page 10 Black SCD-181P How to use Continued ■ Using as a handheld vacuum ■ Disposing of debris cleaner ● Make sure to turn off the power before disposing of debris. To use as a handheld vacuum cleaner, remove the ● Do not remove the dust cup with Attention extension pipe.
- Page 11 Black SCD-181P Dispose debris Attach the dust cup to the main unit • Pull the cyclone unit up, remove it, and discard any ① Insert the tabs on the main unit of the vacuum debris. cleaner into the holes on top of the dust cup.
-
Page 12: Cleaning And Maintainance
Black SCD-181P Cleaning and maintainance Main unit ventilation flue, extension ● Turn off the vacuum cleaner and pipe, suction head unplug the charger before cleaning. ● Do not get any water on the main If clogged by dirt unit or the charger adapter. Doing Attention •... - Page 13 Black SCD-181P Brushroll Attach the brushroll If dirt is noticeable/if rotation stops from time to time. ① Insert the side of the brushroll that does not have gears firmly into the belt and into the axis of rotation Remove the brush cover on the opposite side.
- Page 14 Black SCD-181P Cleaning and maintainance Continued Dust cup Once every two months Disassemble the cyclone unit • Turn the cyclone unit （ top ） counterclockwise Remove the dust cup from the main unit （①） , and disassemble the cyclone unit from top to bottom （②）...
- Page 15 Black SCD-181P Assemble the dust cup by following these Attach the dust cup to the main unit steps in reverse ① Insert the tabs on the main unit of the vacuum cleaner into the holes on top of the dust cup.
-
Page 16: How To Replace The Battery
Black SCD-181P How to replace the battery ■ How to install the battery If usage time is becoming shorter even after the battery has been charged correctly, replace the battery with a new one. See page 4 for information about purchasing batteries Push the battery in firmly all the way, and fit (sold separately). -
Page 17: Troubleshooting
Black SCD-181P Troubleshooting If the following problems occurred during use, before requesting any repairs read the operation manual carefully and check to see if there is any of the following. Status Possible causes Remedy ➡ ➡ No power (not ● Battery is depleted ●... -
Page 18: Specifications
Black SCD-181P Trouble shooting Continued Status Possible causes Remedy ● The rotating part has become The brushroll ➡ ➡ ● Clean the brush roll. (→P13) has stopped entangled or clogged with moving debris The main unit ● The battery and circuit can ➡... -
Page 19: Warranty And After-Sales Service
Black SCD-181P Warranty and After-sales Service Be sure to carefully read the following contents. ■ Warranty card ■ Beyond the warranty period Be sure to get the warranty card from the shop where Please consult the shop where you purchase. It is you purchase, and confirm that the relevant items have necessary to pay the relevant maintenance cost. - Page 20 Black SCD-181P Rechargeable cyclone vacuum cleaner SCD-181P Warranty card This warranty card is a certificate for providing free repair according to the following warranty terms in case of failure within the following period from the date of purchase. Date of purchase ※...
