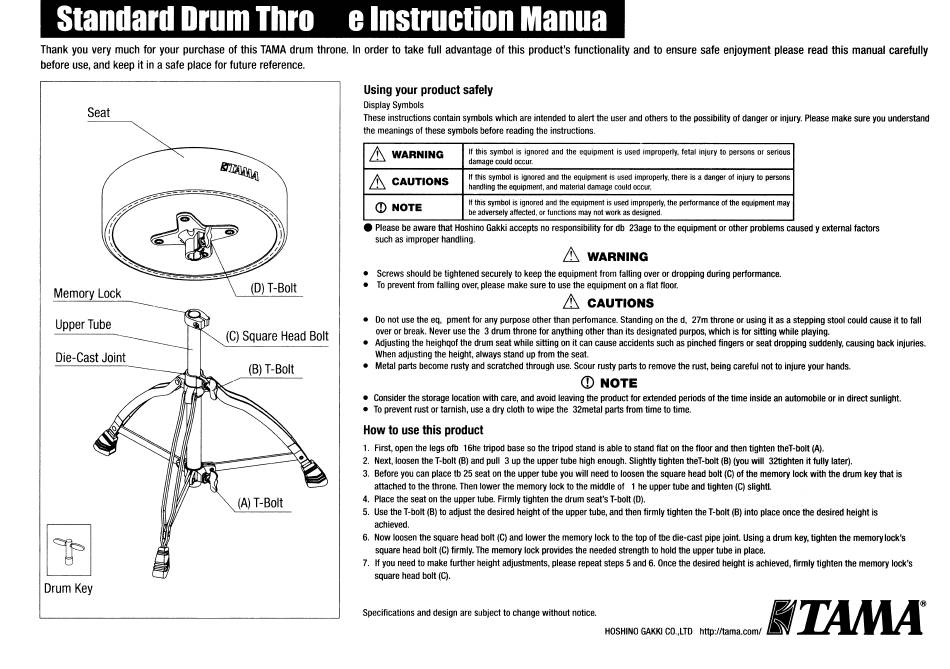

Tama HT130 Instruction Manual

Thank you very much for your purchase of this TAMA drum throne. In order to take full advantage of this product's functionality and to ensure safe enjoyment please read this manual carefully
before use, and keep it in a safe place for future reference.
Seat
Memory Lock
Upper Tube
(C) Square Head Bolt
Die-Cast Joint
(B) T-Bolt
(A) T-Bolt
ffi
Drum Key
Using your product safely
Display Symbols
These instructions contain symbols which are intended to alert the user and others to the possibility of danger or injury. Please make sure you understand
the meanings of these symbols before reading the instructions.
&
WARNING
If this symbol is ignored and the equipment is used improperly, fetal injury to persons or serious
damage could occur.
&
CAUTIONS
If this symbol is ignored and the equipment is used improperly, there is a danger of injury to persons
handling the equipment, and material damage could occur.
CD
NOTE
If this symbol is ignored and the equipment is used improperly, the performance of the equipment may
be adversely affected, or functions may not work as designed.
- - - - - - - - - - --------
e
Please be aware that Hoshino Gakki accepts no responsibility for db 23age to the equipment or other problems caused y external factors
such as improper handling.
&
WARNING
• Screws should be tightened securely to keep the equipment from falling over or dropping during performance.
• To prevent from falling over, please make sure to use the equipment on a flat floor.
&
CAUTIONS
• Do not use the eq, pment for any purpose other than perfomance. Standing on the d, 27m throne or using it as a stepping stool could cause it to fall
over or break. Never use the 3 drum throne for anything other than its designated purpos, which is for sitting while playing.
• Adjusting the heighqof the drum seat while sitting on it can cause accidents such as pinched fingers or seat dropping suddenly, causing back injuries.
When adjusting the height, always stand up from the seat.
• Metal parts become rusty and scratched through use. Scour rusty parts to remove the rust, being careful not to injure your hands.
CD
NOTE
• Consider the storage location with care, and avoid leaving the product for extended periods of the time inside an automobile or in direct sunlight.
• To prevent rust or tarnish, use a dry cloth to wipe the 32metal parts from time to time.
How to use this product
1. First, open the legs ofb 16he tripod base so the tripod stand is able to stand flat on the floor and then tighten theT-bolt (A).
2. Next, loosen the T-bolt (B) and pull 3 up the upper tube high enough. Slightly tighten theT-bolt (B) (you will 32tighten it fully later).
3. Before you can place tb 25 seat on the upper tube you will need to loosen the square head bolt (C) of the memory lock with the drum key that is
attached to the throne. Then lower the memory lock to the middle of 1 he upper tube and tighten (C) slightl.
4. Place the seat on the upper tube. Firmly tighten the drum seat's T-bolt (D).
5. Use the T-bolt (B) to adjust the desired height of the upper tube, and then firmly tighten the T-bolt (B) into place once the desired height is
achieved.
6. Now loosen the square head bolt (C) and lower the memory lock to the top of tbe die-cast pipe joint. Using a drum key, tighten the memory lock's
square head bolt (C) firmly. The memory lock provides the needed strength to hold the upper tube in place.
7. If you need to make further height adjustments, please repeat steps 5 and 6. Once the desired height is achieved, firmly tighten the memory lock's
square head bolt (C).
Specifications and design are subject to change without notice.
http://tama.com/ •
nMA.®
HOSHINO GAKKI CO.,LTD
