OPERATION & MAINTENANCE INSTRUCTION MANUAL
SUPERVISORY SWITCH FOR OS&Y GATE VALVE
General Description

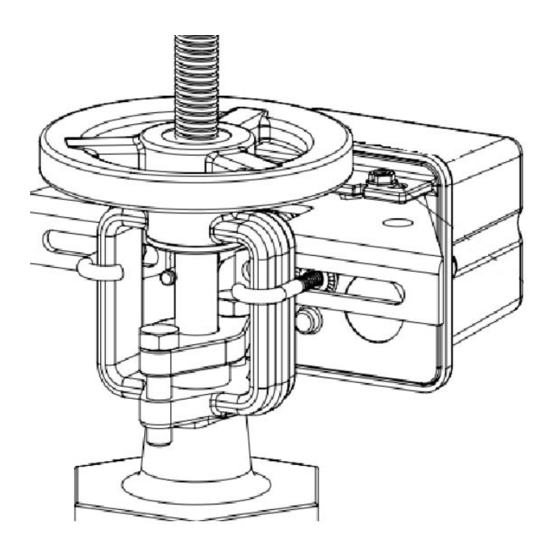

This Supervisory Switch is used to monitor the open position of an OS&Y (outside screw and yoke) type gate
valve. These switches mount conveniently to most OS&Y valves ranging in size from 2" to 24" (50mm to
600mm). The cover is held in place by two tamper resistant screws that require a special tool to remove. The
tool is furnished with each device.
Features
• All parts have corrosion resistant finishes
• Two Conduit Entrances
• Adjustable Length Trip Rod
• Three Position Switch Detects Tampering and Valve Closure
• Fine adjustment feature for fast, easy installation
• One or two SPDT contact models (-1, -2, -3)
• UL Listed and FM Approved
Technical Specifications
Model
Enclosure
Cover Tamper
Contact
Ratings
Environmental
Limitations
Conduit Entrances
Service Use
Testing
The operation of the Supervisory Switch and its associated protective monitoring system shall be inspected,
tested, and maintained in accordance with all applicable local and national codes and standards and/or the
Authority Having Jurisdiction (manufacturer recommends quarterly or more frequently). A minimum test
811-SS-OSY1SPDT, 811-SS-OSY2SPDT, 811-SS-OSY3SPDT
Cover: Die Cast Finish: Red Powder Coat
Base: Die Cast
All parts have corrosion resistant finishes
Tamper Resistant Screws
Optional Cover Tamper Switch Available
3Amps / 5 Amps at 125/250VAC
Cover tamper switch with two leads and Insulating Plate 5KV
811-SS-OSY1SPDT : One Set of SPDT
811-SS-OSY2SPDT : Two Sets of SPDT
811-SS-OSY3SPDT : Two Sets of SPDT and Cover Tamper Switch
10 Amps at 125/250 VAC
2.5 Amps at 30VDC Resistive
-40°C to 60°C Operating Temperature Range
Indoor or Outdoor Use
IP 67
One Knockouts and one hole for 1/2" conduit provided
NFPA 13, 13D, 13R, 72
1
Date: Apr. 7th, 2021
Rev. A
Advertisement
Table of Contents
Summary of Contents for SOVAL 811-SS-OSY1SPDT
- Page 1 Cover Tamper 3Amps / 5 Amps at 125/250VAC Cover tamper switch with two leads and Insulating Plate 5KV 811-SS-OSY1SPDT : One Set of SPDT 811-SS-OSY2SPDT : Two Sets of SPDT Contact 811-SS-OSY3SPDT : Two Sets of SPDT and Cover Tamper Switch...
- Page 2 Date: Apr. 7th, 2021 Rev. A OPERATION & MAINTENANCE INSTRUCTION MANUAL SUPERVISORY SWITCH FOR OS&Y GATE VALVE shall consist of turning the valve wheel towards the closed position. The Supervisory Switch shall operate within the first two revolutions of the wheel. Fully close the valve and ensure that the Supervisory Switch does not restore.
- Page 3 Date: Apr. 7th, 2021 Rev. A OPERATION & MAINTENANCE INSTRUCTION MANUAL SUPERVISORY SWITCH FOR OS&Y GATE VALVE d. Deburr and smooth the edges of the groove to prevent damage to the valve packing and to allow the trip rod to move easily in and out of the groove as the valve is operated. e.
- Page 4 Date: Apr. 7th, 2021 Rev. A OPERATION & MAINTENANCE INSTRUCTION MANUAL SUPERVISORY SWITCH FOR OS&Y GATE VALVE Structural Drawing Typical Electrical Connections (See Fig 1) Fig 2 Fig 1 Fig 3 WHEN OS&Y GATE VALVE NORMALLY OPEN (See Fig 2) When •...
