Summary of Contents for Solla 5000LM

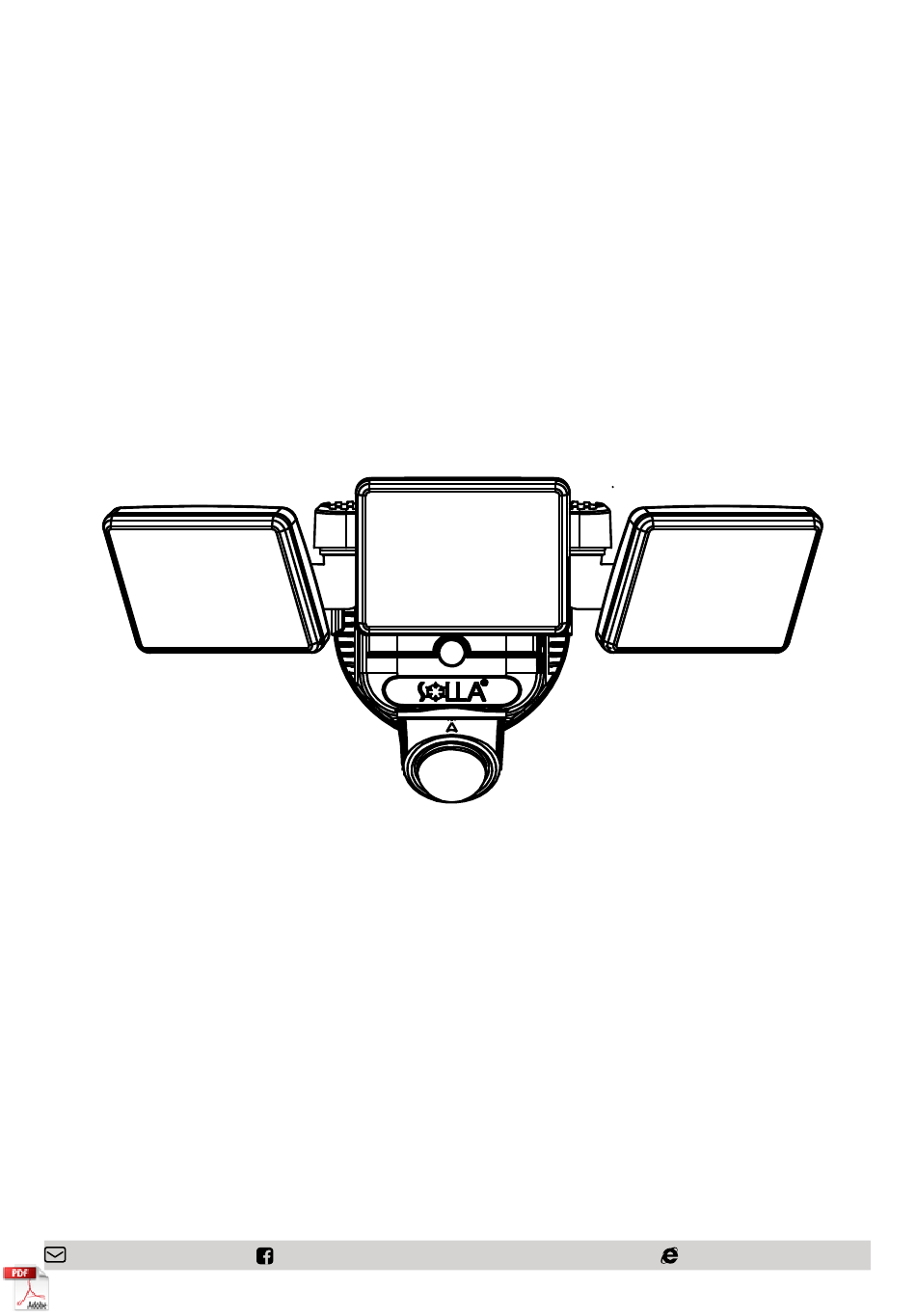

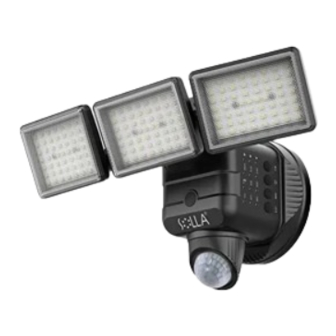

- Page 1 LED Motion Sensing Security Light Retain this manual for future reference. Read the instructions carefully prior to installation! VIP@SOLLA.US WWW.SOLLA.US WWW.FACEBOOK.COM/SOLLALED...
-
Page 2: Safety Instruction
4. Risk of suffocation! Keep small parts and packaging materials away from children. 5. Non-professionals are forbidden to disassemble, repair or modify this product. SPECIFICATIONS H: 5000LM±10% Luminous Flux M: 4000LM±10% L: 3000LM±10% Color Temperature 5000~5500K... -
Page 3: Pre-Installation
PRE-INSTALLATION 1.Mounting Height and Locations 10 cm (3.94 in) 10 cm (3.94 in) × ￭ Keep the fixture level with the ground. ￭ Leave at least 10 cm space from the top or ceiling and side wall. ￭ Install the fixture on a flat surface and a relatively stable place. ￭... -
Page 4: Installation Procedure
INSTALLATION Mounting Accessories A.Iron Plate x 1 B.Screw x 2 C.Screw x 1 D.Screw x 1 E.Silicone plug x 1 F.Light Fixture x 1 G.Wiring Cover x 1 Installation Procedure 1.Install the Iron Plate (A) on the 2.Remove the Wiring Cover (G) junction box in right direction and from the light. -
Page 5: Operation
4.Remove the silicone plug amid 5.Mount the light fixture (F) on the Wiring Cover (G), then install the Wiring Cover assembly, the Wiring Cover (G) on the junction tight it with screw (D)and cover box and tight it with screw (C). Then it with silicone plug(E). - Page 6 3.Detection Range 30° 72ft/21m 40ft/12m 80° 8.25ft 2.5m 20ft/6m 150° 0° 180° 20ft/6m 40ft/12m 72ft/21m 10ft/3m Detection Range: around 72 ft/21m * 180 degrees (Max.) 4.Warm-up State 72ft 10min 40ft 5min 20ft TEST 1min DIST MODE ￭ Warm-up state The light fixture will enter a warm-up state for 20 seconds when it is energized with AC100`240V for the first time: The three adjustable light heads are switched off, the 12 function indicators will light gradually for 20 seconds;...
-
Page 7: Custom Settings
10 hours. ￭ Test mode: The light fixture will light up for 5 seconds. The fixture will light up for 10 mins/5 mins/ 1min when the motion is detected. DIM: The light fixture is dimmable.(5000lm/4000lm/3000lm) - 6 -... - Page 8 6.Motion Sensor Dawn to Dusk mode: In this mode, the light fixture Infrared human body will be switched to energy- sensing mode: saving mode by decreasing When the sensor detects the the lumen by 50% when moving heat source, three there is no moving heat light heads will be turned on source detected within 10...
