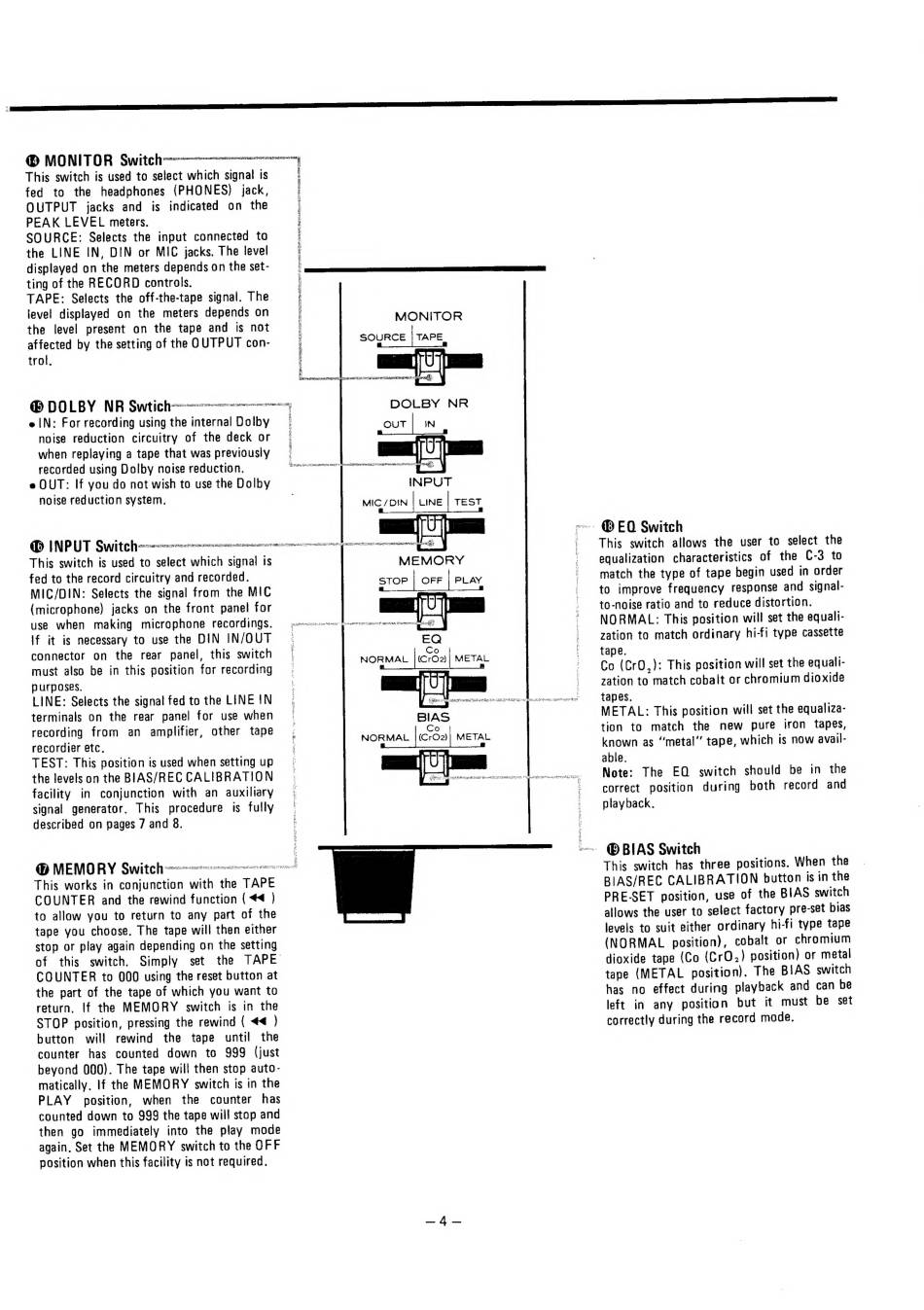

Teac C-3 Owner's Manual page 5

This switch is used to select which signal is
fed to the headphones (PHONES) jack,
OUTPUT jacks and is indicated on the
PEAK LEVEL meters.
SOURCE: Selects the input connected to
the LINE IN, DIN or MIC jacks. The level
displayed on the meters depends on the set-
ting of the RECORD controls.
TAPE: Selects the off-the-tape signal. The
level displayed on the meters depends on
the level present on the tape and is not
affected by the setting of the OUTPUT con-
trol.
® DOLBY NR Swtich--
e IN: For recording using the internal Dolby
noise reduction circuitry of the deck or
when replaying a tape that was previously
recorded using Dolby noise reduction.
e OUT: If you do not wish to use the Dolby
noise reduction system.
i
§
seceded
MONITOR
SOURCE : TAPE
age ee Op RRR Re RAE MESO 2 PM SERS BRNO MO REA SIR RATT SAREE AEN ERE BRE SARS
Nt Reseibgcan pe danvlen 2
a
@® | N P U I QW
err ee tere errr
ermnenctartstomnnnrienennsranieny Ba ANE AAS OGRE ENO SRA SINC
Tc S a
This switch is used to select which signal is
fed to the record circuitry and recorded.
MIC/DIN: Selects the signal from the MIC
(microphone) jacks on the front panel for
use when making microphone recordings.
if it is necessary to use the DIN IN/OUT
connector on the rear panel, this switch
must also be in this position for recording
purposes.
LINE: Selects the signal fed to the LINE IN
terminals on the rear panel for use when
recording from an amplifier, other tape
recordier etc,
TEST: This position is used when setting up
the levels on the BIAS/REC CALIBRATION
facility in conjunction with an auxiliary
signal generator. This procedure is fully
described on pages 7 and 8.
This works in conjunction with the TAP
COUNTER and the rewind function (4 )
to allow you to return to any part of the
tape you choose. The tape will then either
stop or play again depending on the setting
of this switch. Simply set the TAPE
COUNTER to 000 using the reset button at
the part of the tape of which you want to
return, If the MEMORY switch is in the
STOP position, pressing the rewind ( ¢4 )
button will rewind the tape until the
counter has counted down to 999 (just
beyond 000). The tape will then stop auto-
matically. If the MEMORY switch is in the
PLAY position, when the counter has
counted down to 999 the tape will stop and
then go immediately into the play mode
again, Set the MEMORY switch to the OFF
position when this facility is not required.
MEMORY
SlOPr | OFF | PLAY
v gstaiesaga sy
= ® BIAS Switch
