Summary of Contents for Evoluzn IntelliZENS

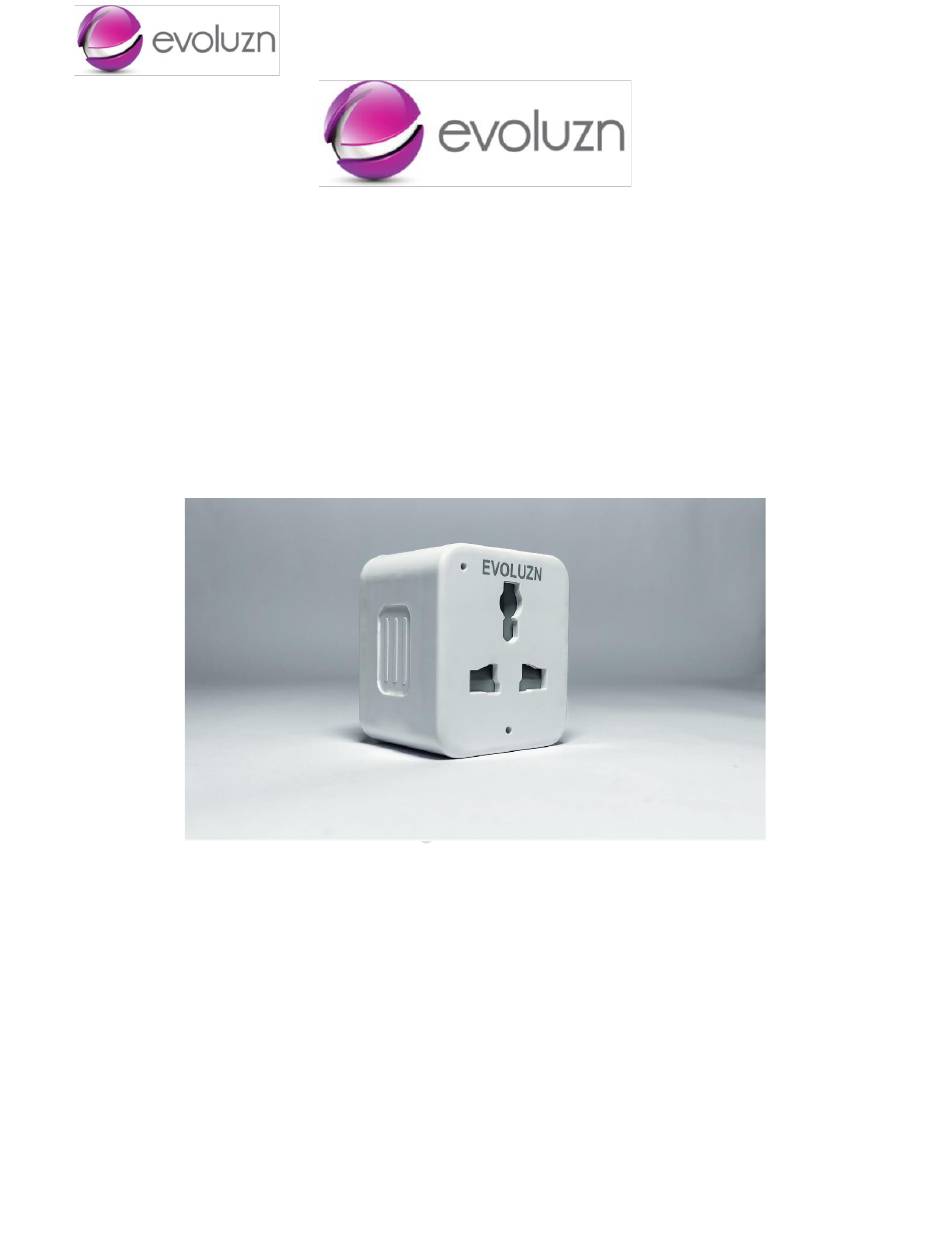

- Page 1 SMART PLUG ADAPTOR USER MANUAL DEVICE PICTURE iz PA xxxx...
- Page 2 1.1 Protection: IntelliZENS smart plug adapter offers a range of appliance protection features that are not supported by typical smart plugs out there in the market. This is why we call the device and solution rather than a smart plug! •...
- Page 3 • Electrical Earth Fault Detector will generate smart alerts if your plug point’s earth wiring is not optimally functional. 1.2 Measure & Monitor IntelliZENS smart plug adapter comes with power consumption measurement circuit as well as integrated temperature and humidity monitoring sensors. This opens up a range of possibilities such as: •...
- Page 4 2. Setting Up & Registering Your Device 2.1 Where is What on the Device Device Photos with notes. 2.2 Setting Up your Device 2.3 Download Evoluzn Smart Home App Download from Google Play Download from IOS App Store...
- Page 5 2.4 Create Your User Account Click the SignUp Button Enter your desired credintials and click Submit button...
- Page 6 You will receive an OTP via SMS & Email with in 1 to 2 minutes Enter the OTP and click verify your OTP button Once account is verifired you will be redirected to Login screen 2.5 Log into Your Account...
- Page 7 Enter your Login details You will be Going to your home screen...
- Page 8 2.6 Add Device Click on Add Device Button to add your appliance if you are setting up your device for the first time. You will be directed to the following screen NOTE : If you have only one device that device’s identifier will show in the screen, if you have multiple devices at home app will show the full list of identifiers 2.6.1 Select the Bluetooth ID of Your Device &...
- Page 9 2.6.2 Verify Your Device Connection You can now verify whether your mobile is connected to the device by trying to Turn it OFF / ON. If the device could be turned OFF and turned ON, you have successfully setup your device.
- Page 10 Now you can customize your device’s name or leave it as it is. It is recommended to customize your device’s name (Ex: Main Hall AC) based on the appliance you are trying to connect to the IntelliZENS Smart Plug to track and control it easily and Intitutively.
- Page 11 1) Do I have to connect this adapter to Air-conditioner or Geyser or water pump only? 2) Can I use multiple type of intelliZENS adapters in my house and control all via same APP? 3) Why does my LED keeps blinking?
-
Page 12: Power Measurement
Offline Controlling Bluetooth v4.2 Max. Output Current Power Measurement Up to 3600W Single Phase Scheduling Support Input Voltage 85 to 265 Vac Dimensions 48 (L) x 56 (H) x 40 (D) mm Operational Temperature 0 deg ~ 60 deg C Storage Temperature -40 deg ~ 70 deg C Operational Humidity... -
Page 13: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
