Hobbico Duratrax Li-24 DTXP4630 Instruction Manual

2S-4S LiPo/LiFe Balancing Charger

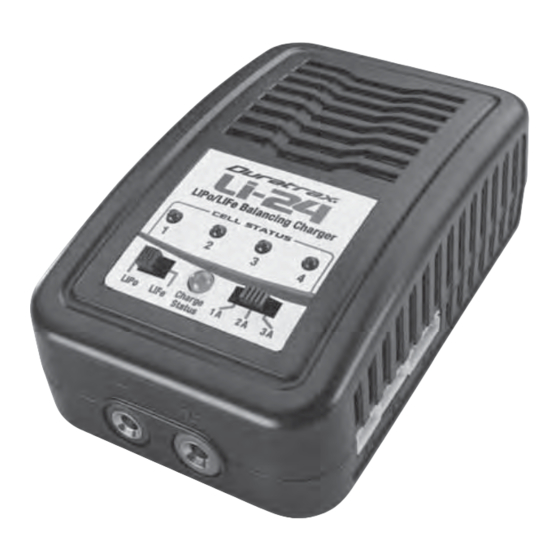

The Li-24 LiPo/LiFe balancing charger is the perfect entry-level charger for modelers using up to 4S LiPo batteries.
Inexpensive and very easy to operate, the Li-24 utilizes the CC/CV charge method, with voltages customized for LiPo/
LiFe batteries. Capable of operating from 100-240V AC or input sources, this tiny, lightweight charger is perfect for
use at home or in the fi eld. Selectable charge currents range from 1A to 3A and a built-in balancing function ensures
all cells are charged to optimum voltage every time.
It is strongly recommended to read this manual completely before use! Damage resulting
from misuse or modifi cation will void your warranty.
WARNING!! Charging lithium-based rechargeable batteries poses a risk of FIRE! NEVER
treat lithium-based batteries in the same manner as other battery types. NEVER leave
lithium batteries unattended while being charged! ALWAYS charge lithium-based batteries
in a fi reproof location! Failure to follow all care and handling instructions contained in
this manual could result in quick, severe, permanent damage to the batteries and all
surroundings!! Follow all safety precautions when using such batteries, as listed on
page 3 of this manual!

SPECIFICATIONS

AC Input:
Output Power:
Battery Types:
Fast Charge Start:
Fast Charge Current:
Controls:

SPECIAL FEATURES

● Built-in balancing for 2-4S LiPo.
● 1A, 2A, 3A selectable charge rates.
● Select between LiPo and LiFe battery type.
● Built in balancing connector for 2S, 3S and 4S.
100-240V AC 60Hz, U.S. plug
30W
2-4S LiPo/LiFe
Auto start at hook up
1A, 2A, 3A*
Auto-start, switchable
current selector
*Note: Maximum charge current for a 4S pack will be ~1.4A.
Output Connections:
Display Type:
Balancing Connector:
Dimensions:
Weight:
● Includes Star Plug
with 4mm banana plugs.
● Built in 4mm banana battery sockets.
● Reverse voltage protection.
INSTRUCTION
MANUAL
4mm banana sockets
4 red cell LEDs and
1 multi-colored status LED
®
ElectriFly style 2-4S
4.4 x 2.7 x 1.6 in.
(111 x 69 x 41mm)
6.2 oz (176 g)
™ and 18AWG charging cable
DTXP4630
®
1
