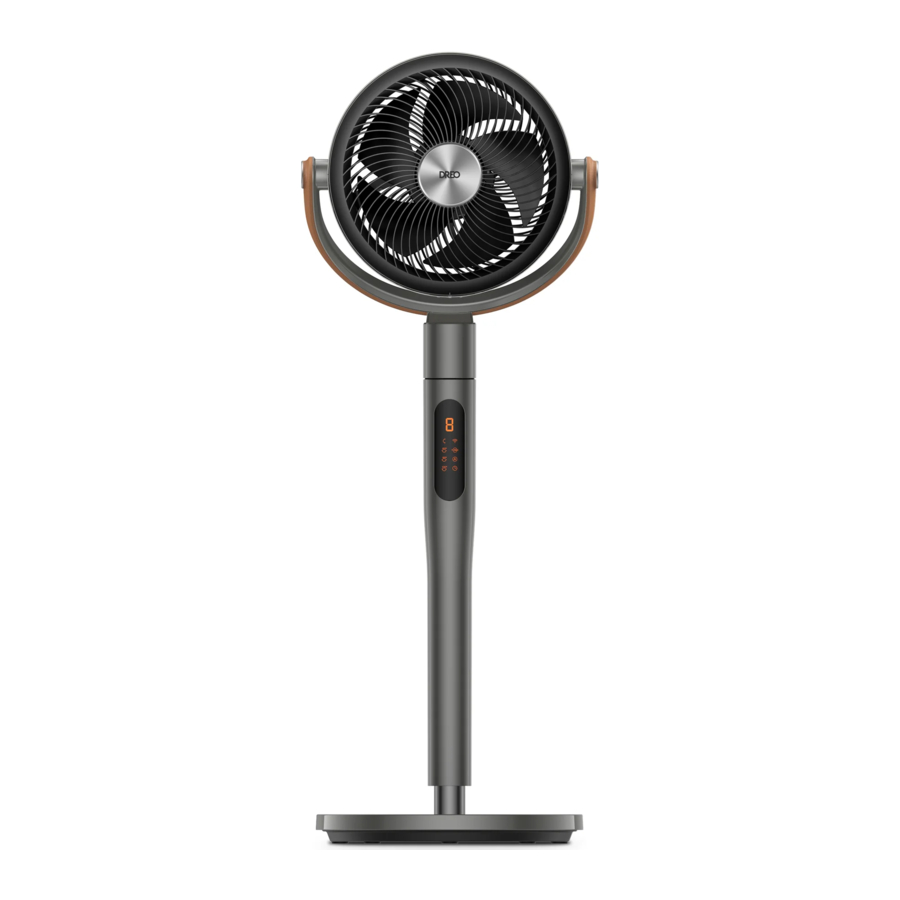

Dreo PolyFan 513S - Max S Smart All-in-One Pedestal Air Circulator Fan Manual

Dreo PolyFan 513S - Max S Smart All-in-One Pedestal Air Circulator Fan Manual

Also See for PolyFan 513S:

Advertisement

Dreo PolyFan 513S - Max S Smart All-in-One Pedestal Air Circulator Fan Manual

ASSEMBLING YOUR DEVICE

Assembly Instructions

When using the appliance for the first time, remove the wraps and attach the parts by following the steps below.

  1. Push the air circulator into the base by aligning the cutout on the bottom of the air circulator with the jutting point in the middle of the base.
    ASSEMBLING YOUR DEVICE - Step 1
  2. Thread the screw through the flat washer, insert into the base, and use the included screwdriver to drive the screw into the bottom of the air circulator.
    ASSEMBLING YOUR DEVICE - Step 2
  3. Put the air circulator upright, hold the main body while rotating the Adjustment Collar counterclockwise to raise or lower the air circulator to the desired height.
    ASSEMBLING YOUR DEVICE - Step 3 - Set the height
  4. Tighten the adjustment collar by rotating clockwise. Plug the power adapter into the power (located at the back of the air circulator), and into the power outlet.
    ASSEMBLING YOUR DEVICE - Step 4 - Connect power


Do not operate the air circulator if the base has not been installed.
Precaution for use

Package Contents

Parts of the unit

CONNECTING TO YOUR DEVICE

This device includes the radio transmitting module whose CMIIT ID is FCC ID: 2A3SYMBL02.

Before connecting the appliance to your mobile device, please scan the QR code on the left or go to the app store and search "Dreo", then select and download the app.

www.apple.com

play.google.com

information You can use the Dreo app to connect your smart pedestal air circulator to Amazon Alexa or Google Assistant. Please follow the in-app instructions to set up your voice assistant.
NOTE: You must create a Dreo account to access voice assistants.

  1. Launch Dreo and sign in or create account by following in-app instructions.
  2. Enable Bluetooth on your mobile device and plug in your air circulator.
  3. Tap + Add Device and select the air circulator you want to link.
  4. Hold the Oscillation button for 5 seconds to start WiFi connection settings.
    (Tip: The WiFi icon will keep flashing when pairing.)
  5. Follow in-app instructions to complete WiFi connection.
  6. You're now ready to control the appliance on your app.
    (Tip: To restart connection settings, hold the Oscillation button again for 5 seconds.)

KNOWING YOUR PRODUCT

Control Panel

Power Button
  • Turn power on/off
  • Long press 10 seconds to reset to factory settings
Increase Speed Button
  • Increase airflow speed (1-8 levels)
  • Exit Turbo Mode
Decrease Speed Button
  • Decrease airflow speed (1-8 levels)
  • Exit Turbo Mode
Horizontal Oscillation
  • Sweep airflow horizontally (0°/60°/90°/120°)
  • Long press 5 seconds to start network settings and device pairing
Vertical Oscillation
  • Sweep airflow vertically (90°)
  • Long press 3 seconds to mute/unmute

Note: This appliance is mute by default. To turn on button sounds, go to the Dreo app.

LED Display

LED Display Description

USING YOUR DEVICE

Getting the Most out of Your Unit

Summer:
Use with Air Conditioner
Position the air circulator in front of your AC to circulate cold air and provide better cooling.
USING YOUR DEVICE - Using with Air Conditioner

Winter:
Use with Heater
Send the heat to corner of the room and circulate warm air faster.
USING YOUR DEVICE - Using with Heater

Spring & Fall:
Circulation

Make the indoors as fresh and pleasant as the outdoors.
USING YOUR DEVICE - Using with air Circulation

General Operations

USING YOUR DEVICE - General Operations

  1. Press to turn on the air circulator.
  2. Press or to adjust the airflow speed.
  3. Press or to change the airflow direction.

Working Modes

Press on the remote

Normal Mode
Air circulator runs at the fixed speed.
Auto Mode
Air circulator speed adapts to the ambient temperature.
Turbo Mode
Air circulator runs at the maximum speed.
Natural Mode (Available in the Dreo app)
Air circulator runs at alternating speeds.
Custom Mode (Available in the Dreo app)
Air circulator speed changes according to temperatures or time you desire.
Sleep Mode (Available in the Dreo app)
Mute auto on.
Air circulator speed decreases every 30 minutes.
Speed decreases by two levels at most and will remain constant if at level 3, 2, or 1:
For level 8: 8 7 6
For level 7: 7 6 5
For level 6: 6 5 4
For level 5: 5 4 3
For level 4: 4 3
For level 3: 3
For level 2: 2
For level 1: 1

Additional Features

Timer
When the fan is ON/OFF, touch the timer button repeatedly to set a timer from 1 to 8 hours. When the timer ends, the fan will stop/start running automatically. To cancel, set the time to 0 hour.

Note: When the auto off timer is enabled, display will return to fan speed after 3 seconds.
Display will show 8 if the timer is beyond 8 hours. To set a timer beyond 8 hours, please go to the Dreo app.

Child Lock
Long press the Horizontal Oscillation button and Vertical Oscillation button at the same time for 3 seconds to turn on/off Child Lock.

Note: Child Lock doesn't apply to operations from the remote control and the Dreo app.
You can also turn off Child Lock by re-plugging in, resetting to factory settings, or through the Dreo app.

Memory
If the fan is turned OFF or disconnected from power, it will operate under the previous settings (except the Timer setting) when it is turned ON again.

Firmware Update
Check the firmware version on the Dreo app and update regularly for the air circulator to work more efficiently.

information Display will show " " during the update process. Do not operate until the update is completed.

Display Auto Off
Display turns off after 1 minute (after 5 seconds in sleep mode).
Wake up the display with any button.
To disable this feature, please go to the Dreo app.

Remote Control

Remote Control

Battery Replacement

USING YOUR DEVICE - Battery Replacement

  1. Press the locking button to pop out the battery holder.
  2. Replace with the same battery type with the (+) side facing up.
  3. Push in the holder until securely locked into place.

Note: If the indicator on the remote control doesn't turn on any more, please consider replacing the battery.


Chemical Burn Hazard. Keep batteries away from children.
This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the battery, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
The batteries must be disposed of properly, including keeping them away from children. Even used cells may cause injury.

CLEANING AND MAINTENANCE

Outer Surface

Gently wipe off the dust with a soft, dry cloth.

Base

The base can be disassembled in the reverse order of assembly.

  1. burn hazardshock hazard
    Always unplug the fan before any cleaning or maintenance to avoid the risk of fire, electric shock, or injury to persons.
  2. Do not immerse in water or get water inside the motor housing.
  3. Do not use any chemical agents when cleaning the fan.
  4. Store in a cool, dry place and cover it to protect from dust.

Grilles


To reduce the risk of electrical shock and injury to persons, turn off and unplug the appliance before any cleaning and maintenance.

  1. Remove the screws on the front and rear grilles, rotate the grilles counterclockwise to take them off.
    Cleaning the Grilles - Step 1
  2. Remove the blade cap by rotating it as shown and take the blade assembly out of the shaft.
    Cleaning the Grilles - Step 2 - Remove a blade cap
  3. Rinse cap, blades, and grilles under running water or with a clean, damp cloth.
    Cleaning the Grilles - Step 3 - Rinse the parts
  4. Dry up all parts, and insert the blade assembly back into the shaft by aligning the D-shaped points on the center.
    Cleaning the Grilles - Step 4
  5. Align the point on the front grille with the right point on the casing, then rotate the grille clockwise and install the screw back in place. Repeat the steps for the rear grille.
    Cleaning the Grilles - Step 5

TROUBLESHOOTING

My device won't turn on

Make sure that the cord is connected to a powered outlet and the mains voltage corresponds with the voltage indicated on the air circulator.

My device is shaky and wobbling

  1. Place the air circulator on a flat, level surface.
  2. Incorrect installation might also cause shakiness. Please refer to the assembly instructions.

My device is making vibration and noise

  1. Place the air circulator on a flat, level surface.
  2. Be sure not to insert anything into the air inlet and outlet.

If your problem is not listed or still persists, please contact our Customer Support

IMPORTANT SAFETY INSTRUCTIONS

warning READ ALL CAUTIONARY MARKINGS ON THE APPLIANCE AND SAFETY INSTRUCTIONS IN THE USER MANUAL BEFORE

Do not cover the air inlet and outlet while in operation.

Do not use the air circulator near flammables and combustibles.

General Safety

  1. Children shall not play with the appliance. Cleaning and maintenance shall not be performed by children without supervision.
  2. burn hazardshock hazard
    Use the appliance as described in the user manual only. Any other use not recommended in the user manual may cause fire, electrical shock, or personal injury.
  3. This appliance can be used by children aged above 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of this appliance in a safe way and understand the hazards involved.

Operation Safety

  1. Place the appliance on a flat, dry surace before use.
  2. Do not immerse in water and any other liquids.
  3. Do not use the appliance until the base is installed.
  4. Do not insert your fingers, pencil and any other objects into the grilles under any circumstances.
  5. Do not dismantle, repair, or modify. All servicing should be performed by qualified personnel.
  6. Do not operate the unit close to the curtain. Do not hang foreign objects on the grille to prevent damaging the balance of the fan or rotational structure.
  7. Do not operate the fan under overly humid, high-temperature, dusty environment or the place where acid or alkali is stored.
  8. Fans should never blow directly on infants, the elderly, and patients for a long time

Electricity Safety

  1. Make sure that the voltage of your electricity supply is the same as that indicated on the appliance.
  2. Always unplug before cleaning or leaving the appliance unused for a long period of time. Keep your hands dry when plugging/unplugging.
  3. Do not operate any air circulator with a damaged cord or plug. Discard air circulator or return to an authorized service facility for examination and/or repair.
  4. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange

  5. To reduce the risk of fire or electric shock, do not use this air circulator with any solid-state speed control device.
  6. Use 24V/1.5A power adapter only. Turn off the appliance before plugging.

  7. To reduce the risk of fire, electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).
  8. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

FOR HOUSEHOLD USE ONLY READ AND SAVE THESE INSTRUCTIONS

Gentle Reminder

Check the appliance regularly and refer to TROUBLESHOOTING or contact our customer support if it shows any of the following signs:

  • Power cord or plug is damaged.
  • Loud noise, unusual smell or excessive heat.

Specifications

Model DR-HAF003S
Power Supply 24V 1.5A
Rated Power 36W
Power Adapter Input:
120V~60Hz 1.0A
Output:
24V 1.5A
Battery Type CR2025 3V

DREO CUSTOMER CARE

We can only provide after-sales service for products that are sold by Dreo or Dreo authorized retailers and distributors. If you have purchased the appliance from a different place, please contact your seller for return and warranty issues.

(888) 290-1688
support@dreo.com
www.dreo.com

Mon - Fri, 9:00 am-5:00 pm PST/PDT


@Dreo

Shenzhen Hesung Innovation Technology Co., LTD
26F, Bldg A7, Creative City, Shenzhen, China
