Summary of Contents for Ascentic AS8 Series

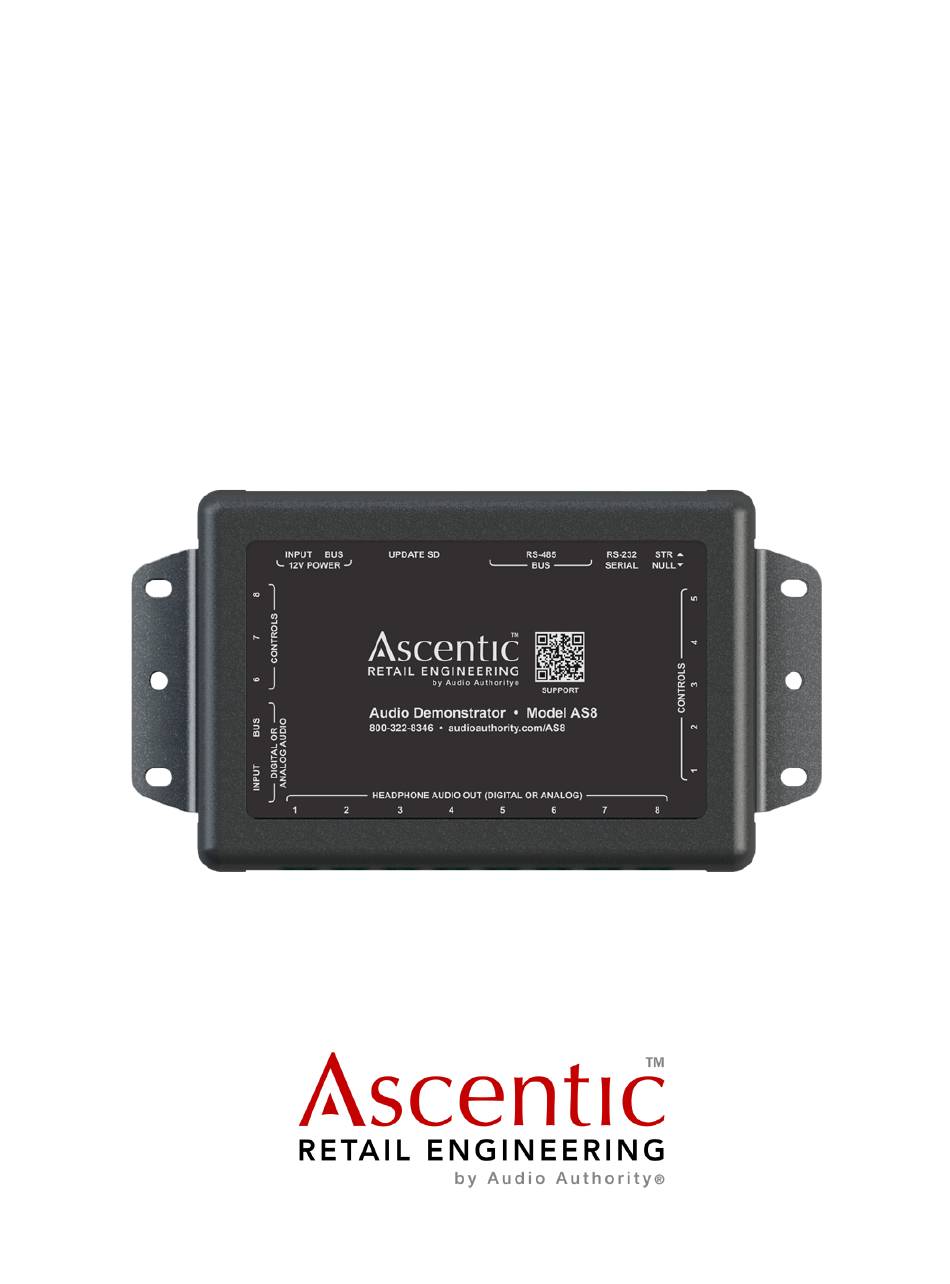

- Page 1 User Manual AS8 Series Audio Demonstrator...
- Page 2 The Ascentic AS8 Audio Demonstrator switches audio signals for up to eight outputs, either digital audio, analog, or a combination of audio formats. The AS8 series includes the AS8 and the Ethernet-enabled AS8-IP. The AS8 may be controlled via buttons, sensors, touch panels, touchscreen, and muti-function rotary controls, and can be updated, checked, and controlled remotely via serial or Ethernet connections.
- Page 3 Communication • Device ID: 6 • IP Card ID: 254 • RS-485 Protocol: 57600 Baud, 8-N-1, half-duplex • RS-232 Protocol: 115200 Baud, 8-N-1, full-duplex • Modem Configuration: Null/Straight toggle via latching button • Null = switch depressed • Straight = switch released 3.5mm TRS jack pinout •...
- Page 4 Application Example Switch between multiple audio outputs to analog, digital, or devices of mixed signal types. In this case, sound bars can be connected to the AS8 with optical or analog 3.5mm cables. The signal type for each output is selected via software.
