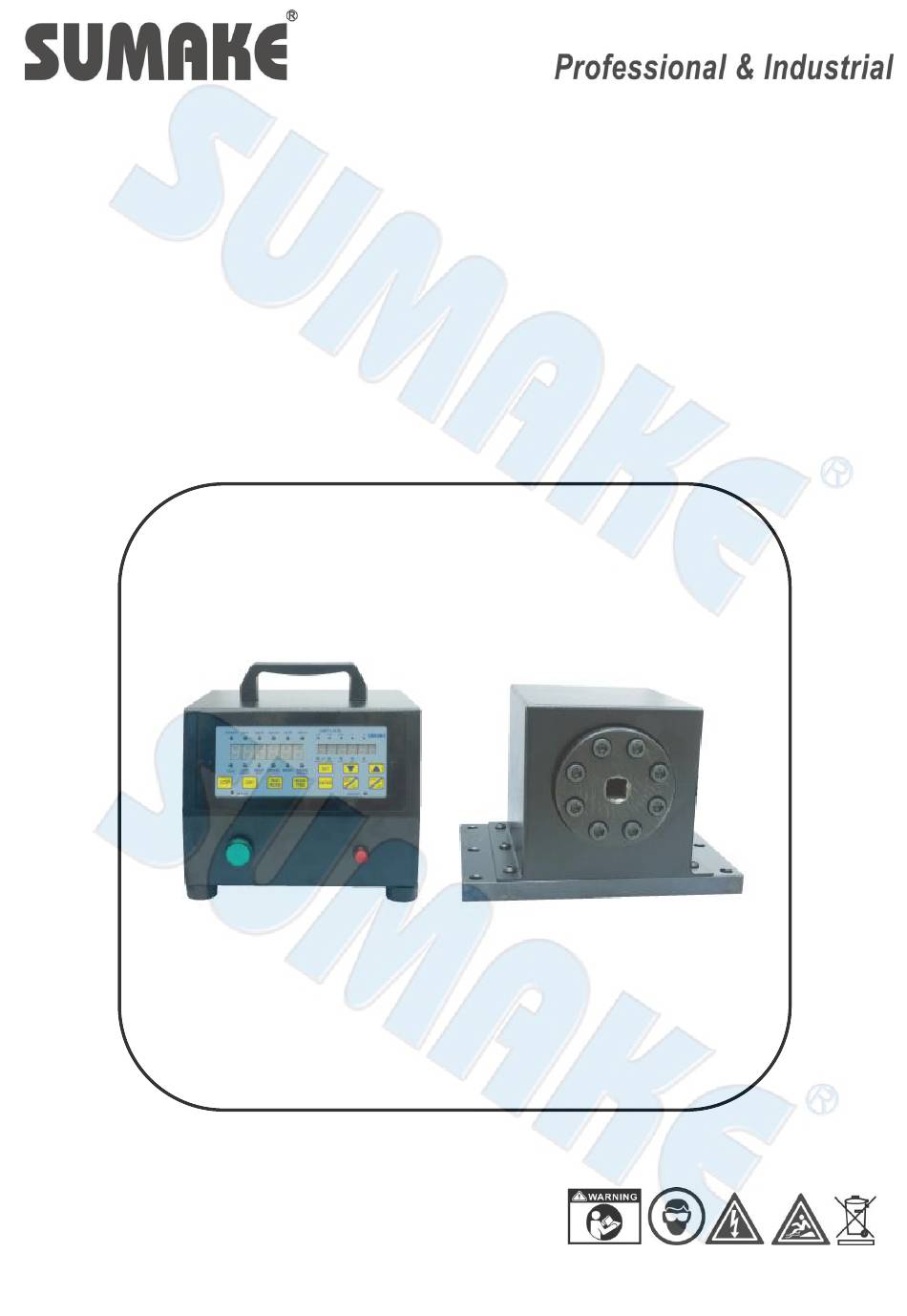

- Page 1 INSTRUCTION MANUAL TT-C series ITEM NO.: DIGITAL TORQUE TESTER TT-C series-I-1905B-MS...
- Page 2 【ZERO】: Manual rest for setting value zero (1) Press the button to reset value back to zero. (2) Zero LED signal will light up whenever the display value shows zero. To ensure precision and accuracy of test result, always check if zero LED light is on while testing. 【AUTO RESET】: Auto reset setting (1) Press the button to switch on AUTO RESET mode (LED light on), Press again to turn off AUTO RESET mode (LED light off and press the Zero button to do the zero action).
- Page 3 Please note: (1) Press【AUTO RESET】for three seconds, display value is the time auto reset begins, i.e. “4” means auto reset starts in 2 seconds (4/2=2) after the test; “6” means 3 seconds (6/2=3). To complete setting, press【ENTER】. (2) Press ▲(increase) and ▼(decrease) to adjust to preferred value (note that is the value/2 is the actual seconds), then press【ENTER】to complete the setting.
- Page 4 During each step of setting above, if you would like to re-set any function, press 【ENTER】, turn off the power, turn the power on, and proceed the setting you wish to do all over again. If none of above-mention tips works and the problem can’t be solved after going through the steps, please return to SUMAKE for further evaluation.
- Page 5 TRANSDUCER PARTS LIST Description Base Fix Plate Square Key (10mm) Sensor Screw (M12x35) Transducer Plate Protect Case Screw (M12x40) Screw (M8x16) TT-C-P1-1207A-MS...
- Page 6 DIGITAL TORQUE TESTER PARTS LIST Description Case Monitor Fix Plate Screw (M4x20) Rubber Foot Pad Handle Screw (M8x20) Screw (M6x20) Connector For Printer Connector For Sensor TT-C-P2-1208A-MS...
- Page 8 NOTE www.SUMAKE.com www.AIRCOMPRESSOR.com.tw...
