Axiom ELT-4320 Owner's Manual

Electric light tower with winch lifting system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELECTRIC LIGHT TOWER
with
WINCH LIFTING SYSTEM
MODEL ELT-4320
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELT-4320 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axiom ELT-4320

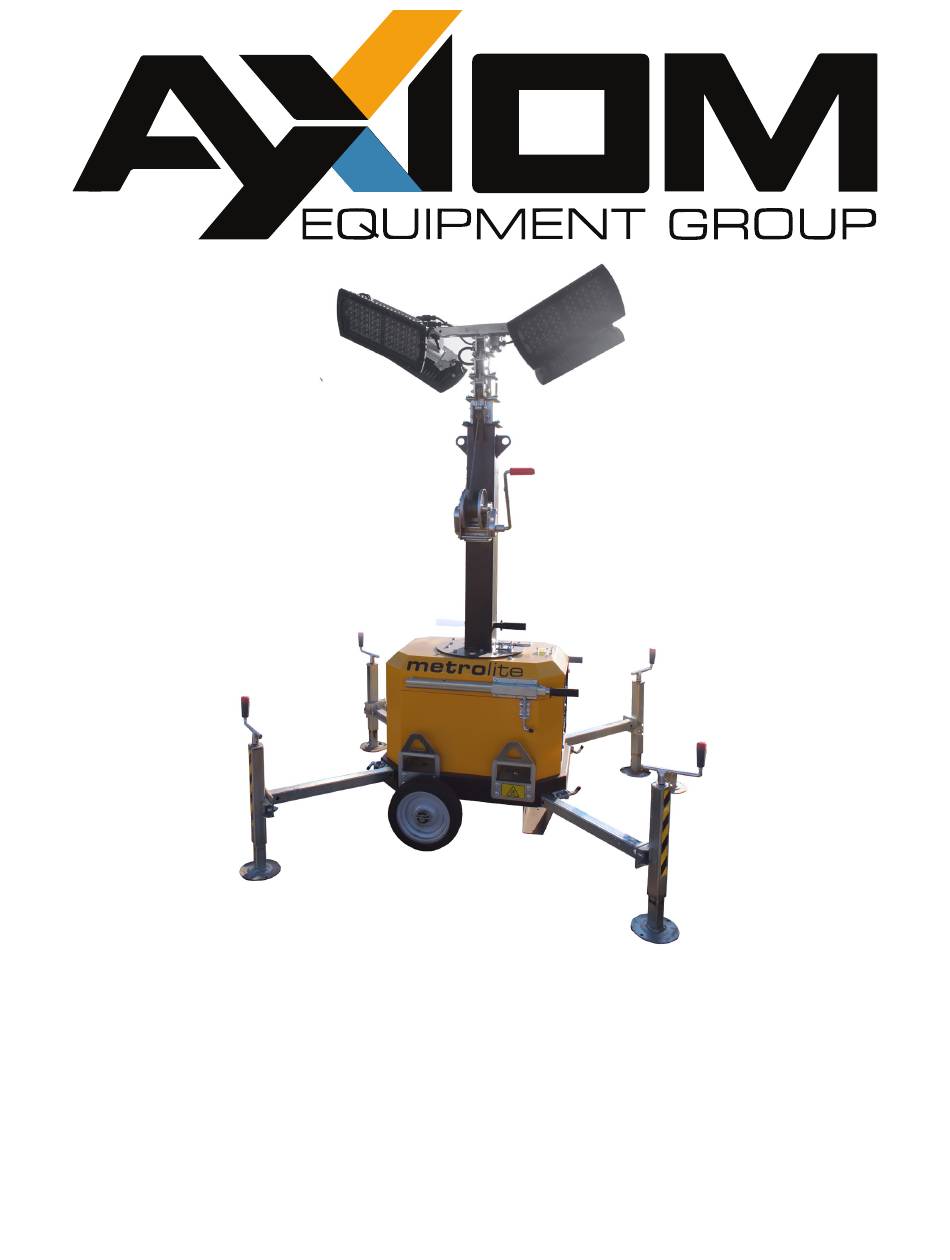

  • Page 1 ELECTRIC LIGHT TOWER with WINCH LIFTING SYSTEM MODEL ELT-4320 OPERATOR'S MANUAL...
  • Page 2 2 (two) years from the date of sale (invoice). Therefore, the total legal and limited warranty period will be 2 (two) years from the invoice date. The determination whether the product is defective will be made by Axiom Equipment Inc. in its sole discretion, considering the general performance given by the product.
  • Page 3 AXIOM EQUIPMENT GROUP ELECTRIC LIGHT TOWER WITH WINCH LIFTING SYSTEM WARRANTY REGISTRATION FORM & INSPECTION REPORT WARRANTY REGISTRATION This form must be filled out by the dealer and signed by both the dealer and the customer at the time of delivery.
  • Page 4 SERIAL NUMBER LOCATIONS Always give your dealer the serial number of your Axiom Equipment Group ELT-4320 when ordering parts or requesting service or other information. The serial number plate is located where indicated. Please mark the number in the space provided for easy reference.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SECTION DESCRIPTION PAGE Introduction ............1 Safety ..............3 2.1 General Safety ............4 2.2 Equipment Safety Guidelines ........ 5 2.3 Safety Training ............6 2.4 Safety Signs ............6 2.5 Storage Safety ............6 2.6 Preparation Safety ..........7 2.7 Installation Safety ..........7 2.8 Maintenance Safety ..........

  • Page 6: Introduction

    Safe, efficient and trouble free operation of your new Axiom ELT-4320 Electric light tower requires that you, and anyone else who will be operating or maintaining the machine, read, understand and practice ALL of the Safety, Operation, Maintenance and Trouble Shooting recommendations contained within this Operator's Manual.

  • Page 7: Safety

    If you have any questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or Axiom Equipment Group, Canada, Highway 18 East, Oxbow, SK S0C 2B0, Phone: 1-866-918-6976, Email: equipment@axiomequipmentgroup.com.

  • Page 8: General Safety

    YOU are responsible for the SAFE operation and • Read and understand the maintenance of your Axiom light tower. YOU must en- Operator's Manual and all safe- sure that you and anyone else who is going to oper- ty signs before supplying pow-...

  • Page 9: Equipment Safety Guidelines

    2.2 EQUIPMENT SAFETY GUIDELINES • Safety of the operator and bystanders is one of • This equipment is dangerous to children and the main concerns in designing and developing a persons unfamiliar with its operation. The op- machine. However, every year many accidents oc- erator should be a responsible, properly trained cur which could have been avoided by a few sec- and physically able person familiar with farm ma-...

  • Page 10: Safety Training

    2.3 SAFETY TRAINING 2.4 SAFETY SIGNS • Safety is a primary concern in the design and man- • Keep safety signs clean and legible at all times. ufacture of our products. Unfortunately, our efforts • Replace safety signs that are missing or have be- to provide safe equipment can be wiped out by a come illegible.

  • Page 11: Installation Safety

    2.7 INSTALLATION SAFETY 2.6 PREPARATION • Review layout of the worksite. Position light tower • Never operate the light tower and auxiliary where it can provide maximum illumination with equipment until you have read and complete- minimal interference with the access and opera- ly understand this manual, the auxiliary equip- tion of other equipment.

  • Page 12: Maintenance Safety

    Clear the area of bystanders, especially small and dry. children. Be sure electrical out- • Replace all worn or failed components immediate- lets and tools are properly ly with Axiom approved parts. grounded. • Install and secure all guards before operating. Use adequate light for the • Keep hands, feet, hair and clothing away from job at hand.

  • Page 13: Electrical Safety

    2.12 ELECTRICAL SAFETY • Use the terminal inside the frame to ground unit in compliance with local laws and regulations. • All electrical wires, plugs, sockets and other com- ponents must always be in good condition when operating. • Turn master breakers and electrical switches off when shutting down unit. • Allow light components to cool for several minutes before touching them for servicing or adjusting to prevent burns from hot components.

  • Page 14: Sign-Off Form

    Axiom Equipment Group follows the general Safety Standards specified by the American Society of Agricultural and Biological Engineers (ASABE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be operating and/or maintaining a Axiom built machine must read and clearly understand ALL Safety, Operating and Maintenance information presented in this manual.

  • Page 15: Safety Sign Locations

    SAFETY SIGN LOCATIONS The types of safety signs and locations on the equipment are shown in the illustrations that follow. Good safety requires that you familiarize yourself with the various Safety Signs, the type of warning and the area, or particu- lar function related to that area, that requires your SAFETY AWARENESS.

  • Page 16: Operation

    Axiom approved parts. • Install and secure all guards before operating. 4.1 TO THE NEW OPERATOR OR OWNER The Axiom light tower is designed is designed to pro- vide lighting over a large area by providing electrical power to banks of LED lights using worksite power. It is the responsibility of the owner or operator to read this manual and to train all other operators before they start working with the machine.

  • Page 17: Machine Components

    4.2 MACHINE COMPONENTS The Axiom light tower is a moveable frame with banks Outriggers are located on each corner of the frame of LED lights on top of an extendable mast for illumi- and are pinned in both extended and retracted. Man- nating a large area. Electrical power from the work- ually operated jacks on the end of each outrigger site is used to power the unit and the lights.

  • Page 18: Machine Break-In

    Although there are no operational restrictions on the Safe and efficient operation of your new light tower re- Axiom light tower when used for the first time, it is quires that each operator reads and follows all safety recommended that the following mechanical items be...

  • Page 19: Controls

    4.5 CONTROLS It is recommended that operators review this section annually to remain familiar with the machine controls. Train new operators before permitting them to oper- ate machine. Electrical Control Panel: This panel contains all the controls and input/out- put sockets for the light tower. a.
  • Page 20 2. Winch: The mast is designed with a manual winch to raise and lower it when required. Turn the crank handle clockwise to raise the mast. Turn counterclockwise to lower the mast. FIG. 3 WINCH...

  • Page 21: Machine Preparation

    4.6 MACHINE PREPARATION 4.6.1 PREPARATION Lifting With Hoist: The light tower is designed so it can be lifted with a hoist in two different ways: a. The upper stationary portion of the mast is equipped with an ear on both sides that the hoist can attach to.
  • Page 22 2. Forklifts: The frame is designed with 2 lateral pockets ex- tending across the frame for lifting the machine. Push the forks completely through the frame un- til they extend out the other side to keep the ma- chine level and even when lifted. Raise slowly and raise only as high as required. Use the signs on the frame as a guide for the fork positioning.
  • Page 23 4. Machine Preparation: The machine is shipped from the factory mounted on a pallet to allow for easy handling with a forklift. To prepare for use, follow this procedure: a. Move the machine into an open area with ac- cess from all sides. b. Remove all the anchor screws between the jack pads and the pallet.
  • Page 24 4.6.2 POSITIONING: Machine positioning and placement are important to the functioning and reliability of the light tower. Since the tower rises to 7.0 m, the base machine must be set in a level position to support the mast. When positioning machine. follow this procedure: 1. Review the worksite and select an area where the machine is out of the way and not interfere with the other equipment on the worksite and yet illuminate...
  • Page 25 4.6.3 ELECTRICAL CONTROL PANEL: This panel contains the switch for selecting the op- erating mode, breakers and input/output receptacles. Review the application and control panel details when preparing to operate. FIG. 9 ELECTRICAL CONTROL PANEL...

  • Page 26: Operation

    Keep others off. • Replace all worn or failed components immedi- • Keep the working area clean and dry. • Review safety instructions annually. ately with Axiom approved parts. • Install and secure all guards before operating. Follow this procedure when using the light tower: 1. Move unit to worksite and unload (refer to Transport Section). 2. Review Section 4.6 Machine Preparation and fol- low all the instructions. 3. Review and follow the pre-operation checklist (See Section 4.4).
  • Page 27 6. Machine Preparation Steps: a. Refer to and follow the machine preparation and set-up sections. Be sure machine is lo- cated on a firm level base. b. Extend and pin the front and rear outrigger arms. Lower the jacks to level the frame. Use the bubbles in the spirit levels on top of the frame as a guide.
  • Page 28 e. Use the winch to raise the mast. Do not raise mast if there are overhead electrical power lines. FIG. 15 WINCH...
  • Page 29 Operation: Follow these steps when operating the light tower: a. Extend the moving handles and move the ma- chine into position. Retract and pin handles. b. Extend outrigger arms and pin them in their extended position. c. Lower the jacks as required to level frame. d. Use the spirit levels on top of the frame to ver- ify that the frame is level.
  • Page 30 8. Operating Hints: a. Raising the Mast: Use the winch to raise and lower the mast Stay away from overhead power lines to avoid electrocution. Winch Raising FIG. 17 RAISING MAST...
  • Page 31 b. Extend outrigger arms and pin. Lower jacks to level frame. Use bubbles in spirit levels when levelling frame. a. Outriggers b. Spirit Levels FIG. 18 LEVELLING c. The machine is moved manually by the operator. To manually move the unit: i. Release anchor pin and extend the arms.

  • Page 32: Storage

    4.8 STORAGE STORAGE SAFETY • Store the light tower on a firm level surface. • If required, make sure the unit is firmly blocked • Make certain that all mechanical locks and jacks are safely and positively connected before storing. • Store away from areas of human activity. • Do not allow children to play on or around the stored light tower. 4.10.1 PLACING IN STORAGE 4.10.2 REMOVING FROM STORAGE At the end of the season, the machine should be thor- When preparing to use the machine at the start of the oughly inspected and prepared for storage. Repair or season, follow this procedure:...

  • Page 33: Service And Maintenance

    SERVICE AND MAINTENANCE MAINTENANCE SAFETY • Read and understand all the information con- tained in the Operator's Manual regarding op- erating, servicing, adjusting, maintaining and SERVICE repairing. Turn machine OFF, shut down and lock out • 5.1.1 FLUIDS AND LUBRICANTS power supply and wait for all moving parts to stop before servicing, adjusting, maintaining Grease:...
  • Page 34 5.1.3 SERVICING INTERVALS 8 Hours or Daily Inspect machine. a. Tighten any loose hardware. FIG. 21 MACHINE 40 Hours or Monthly Lubricate mast with anti-corrosive, water repellent spray. 2. Lubricate pulleys with multi-purpose lithium lubricant. FIG. 22 MONTHLY As Required Clean machine.
  • Page 35 5.1.4 SERVICE RECORD See Lubrication and Maintenance sections for details of service. Copy this page to continue record. ACTION CODE: CL CLEAN CK CHECK G GREASE R REPACK CH CHANGE Maintenance Hours Serviced by 8 Hours or Daily CK Machine 40 Hours or Monthly G Mast G Pulleys As Required CL Machine...

  • Page 36: Maintenance

    5.2 MAINTENANCE By following a careful service and maintenance pro- gram on your machine, you will enjoy many years of trouble-free use. 5.2.1 ELECTRIC SYSTEM INSPECTION Electricity provides power to all systems on the light tower. To maintain the integrity of each system and provide a safe working environment for the operator, it is important that a daily inspection be done to make sure that all systems and components are in good...

  • Page 37: Trouble Shooting

    TROUBLE SHOOTING The Axiom ELT-4320 light tower is a lighting machine using a manual winch to raise and lower the mast. It is equipped with LED lights mounted on the top of the mast to illuminate the surrounding area, The worksite pro- vides to power for the lights. In the following section, we have listed many of the problems, causes and solutions to the problems that you may encounter.

  • Page 38: Specifications

    SPECIFICATIONS 7 .1 MECHANICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...

  • Page 39: Bolt Torque

    7 .2 BOLT TORQUE CHECKING BOLT TORQUE The tables shown below give correct torque values for various bolts and capscrews. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware with the same strength bolt.

  • Page 40: Electrical Schematic

    7 .3 ELECTRICAL SCHEMATIC...

  • Page 41: Index

    INDEX PAGE PAGE Introduction ............1 Safety ..............3 Electrical Safety ..........9 Equipment Safety Guidelines ......5 General Safety ..........4 Installation Safety ..........7 Lock-Out Tag-Out Safety .......8 Operation ............13 Maintenance Safety ........8 Controls ............16 Operating Safety ..........9 To the New Operator or Owner ....13 Preparation Safety .........7 Machine Components ........14 Safety Signs ..........6...
  • Page 42 Highway 18 East, Oxbow, SK S0C 2B0 Phone: 1 (866) 918-6976 equipment@axiomequipmentgroup.com PRINTED IN CANADA REVISION DATE: NOVEMBER 2022 PART NUMBER: 19968...
