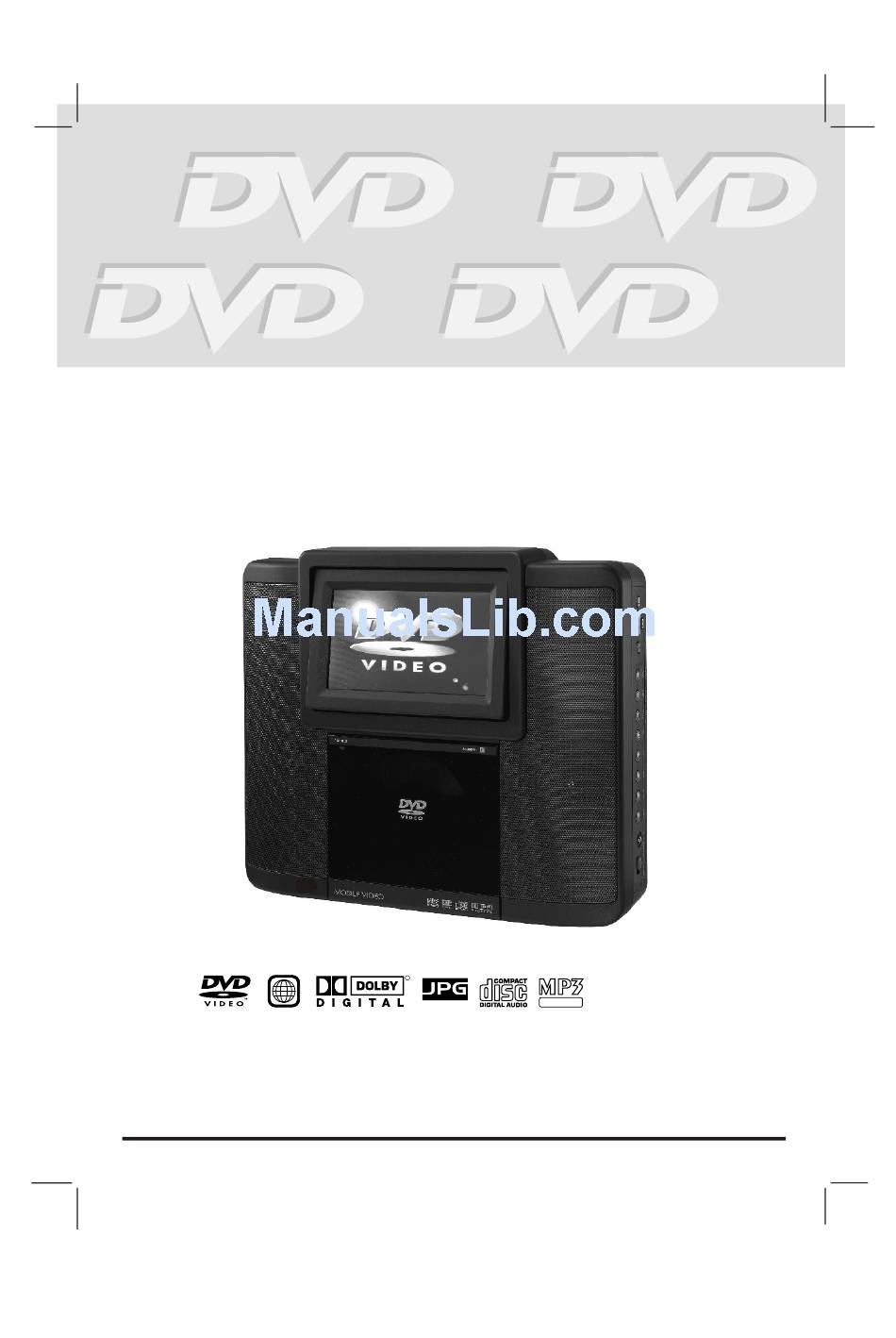

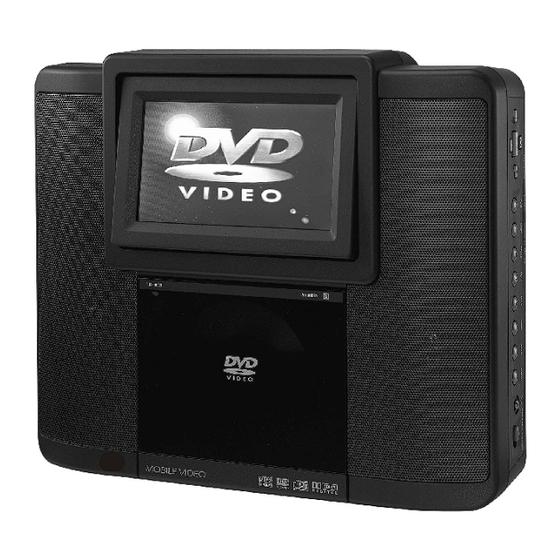

- Page 1 Car DVD Theater System CD-R/RW CD PLAYBACK VIEWER OWNER'S MANUAL 811-168091-031 Printed in China FOR USA...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS WARNING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. -
Page 3: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to. 4. -
Page 4: Table Of Contents
TABLE OF CONTENTS Safety Precautions ...1 Important Safety Instruction ... 2 Table Of Contents ... 3 Disc Formats ... 4 Accessories ... 5 Remote Control ... 5 Control Reference Guide ... 6-7 Power Supply ... 8 Using the AC adaptor ... 8 Using the car adaptor ... -
Page 5: Disc Formats
The unit can playback. DVDs [8cm/12cm disc] Audio CDs [8cm/12cm disc] Region Management Information Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVD discs. If the Region number printed on the DVD disc does not correspond to the Region number of this unit, this unit cannot play that disc. -
Page 6: Accessories
Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. • To order accessories contact 1-800-252-6123 or web site (http://www.18002526123.com) Remote control (battery included) (043-R13232-020) ... x 1 AC adaptor (133-011202-000) ... x 1 AC power cord (134-A13211-216) ... -
Page 7: Control Reference Guide
CONTROL REFERENCE GUIDE Remote Control 1) ZOOM button Zoom into an image of a DVD. TV MODE button In stop mode, select whether to output the video signal. TV shows "AUTO" which means output signal depends on DVD disc (either NTSC or PAL). - Page 8 CONTROL REFERENCE GUIDE Unit VOLUME control Adjust the volume. SCREEN switch 4: 3 -- Pan Scan. 16:9 -- Wide-screen. OFF -- Turn off the screen. COLOUR control Adjust for colour intensity. BRIGHTNESS control Adjust the relative lightness or darkness of the colour. Handle CURSOR ( ) button...
-
Page 9: Power Supply
Using the AC adaptor This AC adaptor operates on AC between 100V and 240V, but • In the U.S.A. and Canada, the AC power supply cord must be connected to a 120V AC power supply only. • When connecting to an AC supply outside of the U.S.A. and Canada, use a plug adaptor to suit the AC outlet configuration. -
Page 10: Installation
Installing the unit onto the seat back in a car The unit is designed to allow users to install onto the seat back by supply straps. 1. Connect the short strap latch into upper or center ring, and long strap latch into lower ring on the back of unit. 2. -
Page 11: Connections
Using this unit with other equipment A. Connecting a VCR • Using an Audio/Video cable (not included). 1. Connect the yellow plug from VIDEO IN jack on your unit to VIDEO OUT jack on your VCR. 2. Connect the red and white plugs from AUDIO IN jacks on your unit to AUDIO OUT jacks on your VCR. Watching a Videotape 1. - Page 12 C. Another source connection • Using an Audio/Video cable (not included). Connect ONLY the red and white plugs from AUDIO OUT jacks on your Unit to the AUDIO IN jacks on another audio equipment. • Using the Coaxial Digital Audio cable (not included). Connect from coaxial DIGITAL OUT jack on your Unit to the DIGITAL IN jack on another audio equipment.
-
Page 13: Using Headphones
CONNECTIONS Using Headphones • Turn down the volume before connection, and then adjust the level. • When headphones are connected, no sound will be output from the unit's speakers. Caution: • Avoid listening to sound at levels which may be harmful to your ears. HEADPHONES (3.5mm diameter plug) Left side of unit... -
Page 14: Playing A Disc
Basic playback This owner’s manual explains the basic instructions of this unit. Some DVD discs are produced in a manner that allows specific or limited operation during playback. As such, the unit may not respond to all operating commands. This is not a defect in the unit. Refer to the instruction notes of discs. -
Page 15: Fast Foward/Fast Reverse
Fast Forward/Fast Reverse 1. Press the SEARCH control when a disc is playing. • The disc begins fast scan at x2 speed. • Four speeds are available. Each time SEARCH button on the remote control is pressed, the speed of fast scan changes in the following sequence: 2. -
Page 16: Angle Selection
Angle selection Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles. 1. While you are playing a DVD with different angles recorded, press the ANGLE button on the remote control to view the number of the current angle. -
Page 17: Special Functions
Basic playback DISPLAY function Using DISPLAY button on the remote control, you can check and change the current settings of the following items: ANGLE, AUDIO and SUBTITLE. • While the disc is playing, press the DISPLAY button to display the screen shown below. Elapsed time: Elapsed time from the beginning of the chapter which is currently playing. -
Page 18: Locating A Specific Title
Basic playback Locating a specific title If a DVD disc contains title numbers, you can locate a specific title by directly selecting a title number. 1. In stop mode, press the GOTO button on the remote control. 2. Press button to highlight a specific field and press the corresponding number button(s) for the title you want. -
Page 19: Locating A Specific Time
Basic playback Locating a specific time You can move to a specific location by entering its corresponding time (hours, minutes, seconds) 1. Press the GOTO button on the remote control. 2. Press button to highlight time. 3. Press the corresponding number buttons for the setting point you want. •... -
Page 20: Cd / Dvd Programmable Memory
Advanced CD / DVD PROGRAMMABLE MEMORY playback Programmable memory The two types of programmed playback provided by this unit are title programmed playback and chapter programmed playback. Title / Chapter programmed playback 1. Press the MEM (MEMORY) button on the remote control while the disc is stopped. 2. -
Page 21: Repeat Playback
Advanced playback You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat) Repeating a title You can play the same title repeatedly. 1. While the disc is playing, press the REP (REPEAT) button on the remote control until the “ Repeat Title the screen. -
Page 22: Playing Mp3 And Picture File Disc
PLAYING MP3 AND PICTURE FILE DISC This unit can play MP3 and Picture files recorded on CD-R and CD-RW discs Playing a MP3 file disc 1. Press the left side corner of the disc door to open the disc door. 2. -
Page 23: Playing A Picture File Disc
PLAYING MP3 AND PICTURE FILE DISC Playing a Picture file disc 1. Press the left side corner of the disc door to open the disc door. 2. Hold the Picture disc by its sides and carefully make it fit onto the central support of compartment with the label side facing towards you until you hear a “click”. -
Page 24: Customizing The Function Settings
CUSTOMIZING THE FUNCTION SETTINGS • Set DVD/AV IN switch to DVD, DVD appears on the screen. LANGUAGE setting 1. Press SETUP button on the remote control while the disc is stopped. 2. Use button to select the Language, then press the ENTER button. 3. - Page 25 CUSTOMIZING THE FUNCTION SETTINGS Cut off when a wide-screen video image is played. Notes : • The displayable picture size is preset on the DVD disc. Therefore the playback picture of some DVD discs may not conform to the picture size you select. •...
-
Page 26: Audio Setting
CUSTOMIZING THE FUNCTION SETTINGS Edges 1. Press SETUP button on the remote control while the disc is stopped. 2. Use button to select Video, then press the ENTER button. 3. Use button to select Edges, and then press the ENTER button. 4. -
Page 27: Rating Setting
CUSTOMIZING THE FUNCTION SETTINGS AUDIO setting Virtual Effect (For CD and DVD Only) To obtain expansive virtual surround sound effects from just two speakers. 1. Press SETUP button on the remote control while the disc is stopped. 2. Use button to select Audio, press the ENTER button. 3. -
Page 28: Customizing The Function Settings
CUSTOMIZING THE FUNCTION SETTINGS Password/Parental lock DVD discs equipped with the password function are rated according to their content. The contents allowed by a parental lock level and the way a DVD disc can be controlled may vary from disc to disc. For example, if the disc allowed, you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or you could lock out playback of the disc altogether. -
Page 29: Language Code List For Disc Language
LANGUAGE CODE LIST FOR DISC LANGUAGE Code Language Name Code Afar Abkhazian Afrikaans Ameharic Arabic Assamese Aymara Azerbaijani Bashkir Byerlorussian Bulgarian Bihari Bislama Bengali Bangla Tibetan Breton Catalan Corsican Czech Welsh Danish German Bhutani Greek English Esperanto Spanish Estonian Basque Persian Finnish Fiji... -
Page 30: Maintenance
Cleaning Disc A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges. • Do NOT touch the surface of the unlabeled side of the disc. •... -
Page 31: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) • The region number of the disc doesn't match the region number of this unit. No picture • The DVD/AV IN switch is not select DVD mode. • Select the SCREEN switch other than "OFF" (no picture). •... - Page 32 811-168091-031 Printed in China FOR CANADA...
