Inductive Loop Systems

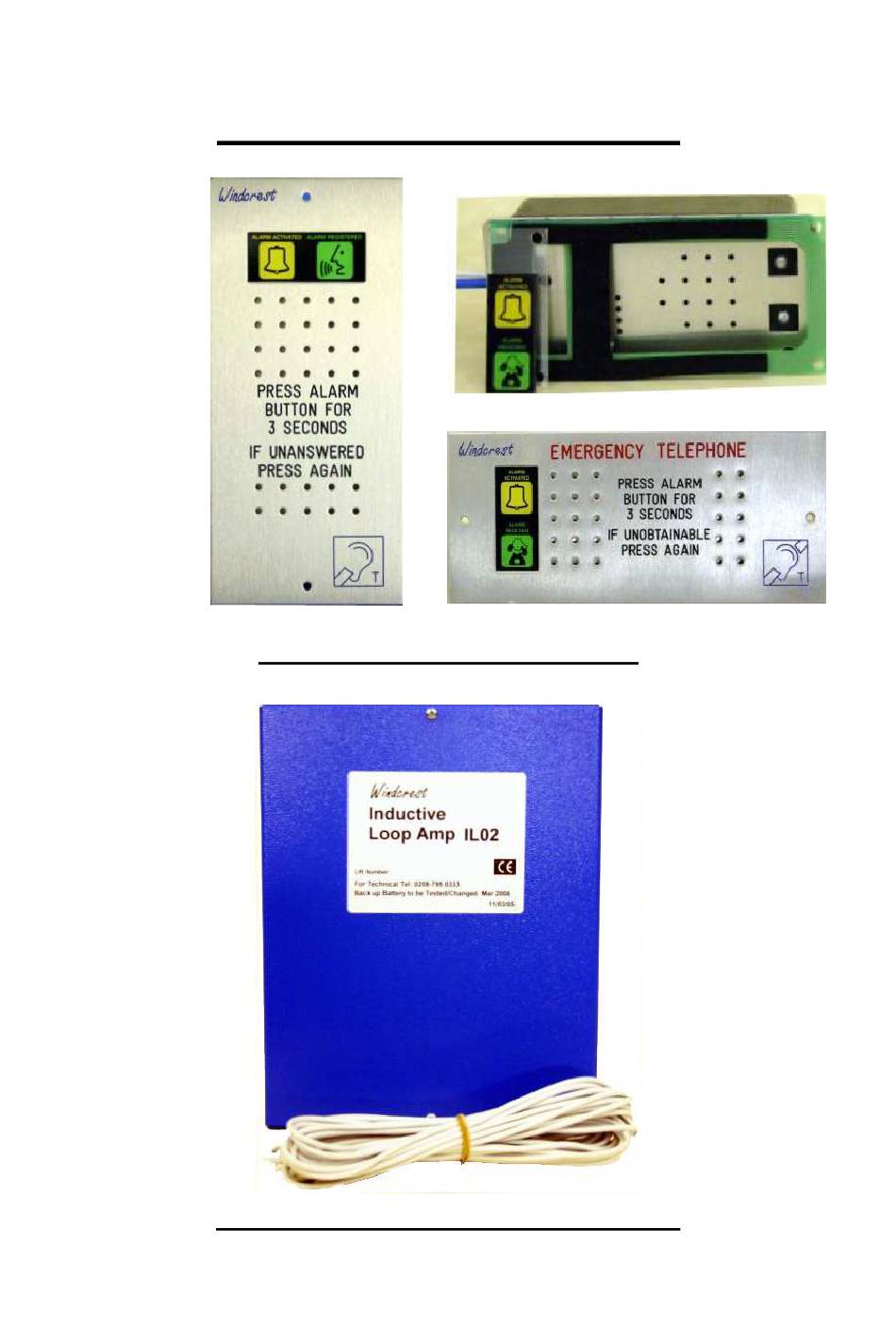

Low Power Inductive Loop: ILO1
Medium Power Inductive Loop: ILO 2 / 7
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ILO1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wind Crest ILO1

  • Page 1 Inductive Loop Systems Low Power Inductive Loop: ILO1 Medium Power Inductive Loop: ILO 2 / 7...
  • Page 2 Low Power Inductive Loop – ILO1 for Phone Line only The standard speaker box, as used with a Windcrest Autodialler, can accommodate a low power inductive amplifier which amplifies the sound on the BT phone line.
  • Page 4 Medium Power Inductive Loop – ILO7 for Phone line and Speech Synthesis unit For applications where a greater coverage is required and where a speech synthesis unit is installed, the IL07 solution is offered. This unit is mains powered with battery back up and a higher current drive capability.
  • Page 5 Examples showing Loop Wire installation for full lift coverage Medium Power Medium Power Induction Induction Loop ILO2 Loop ILO2 Car Top Car Top Loop Microphone Microphone Operating Operating Windcrest Windcr est Panel Panel PRE SS AL ARM PRESS AL ARM BUTTON F OR BUT TON F OR 3 SECONDS...
  • Page 6 Testing the Inductive Loop system As mentioned, the inductive loop amplifiers produce the magnetic field which corresponds to the sound. The ILO7 system has a facility to adjust volume in case distortion is encountered in the speech. Adjust the volume so that the LED on the board just starts flickering when speech is on.
  • Page 7 Various test units are available which provided a means of testing the effectiveness of the loop. Audio Pick up Unit A test unit which acts like a hearing aid and simply coverts the magnetic field into sound which is played through a pair of headphones.
  • Page 8 Prior to the dispatch of Inductive loops, each loop is tested with the Audio pick up Unit in the factory with a preinstalled loop cable. Each system is check for the strength/range. The low power inductive loop i.e. ILO1 covers a distance of approx. 300mm from the Windcrest ILO1 Speaker box. The high power inductive loop i.e.
  • Page 9 ILO 1 Specification Power Supplied from Windcrest Autodialler Inputs Connected to Autodialler Output Type: Current Mode Peak 100 mAmp into Loop Resistance minimum loop resistance 2Ohms. Average 75 mAmp Performance Frequency Response: 300Hz – 3.4KHz + - 3dB Distortion : Less than 0.6% Dimensions As per Windcrest Lift Car Speaker ILO2/7 Specification...
