Summary of Contents for Inlite DoseMax

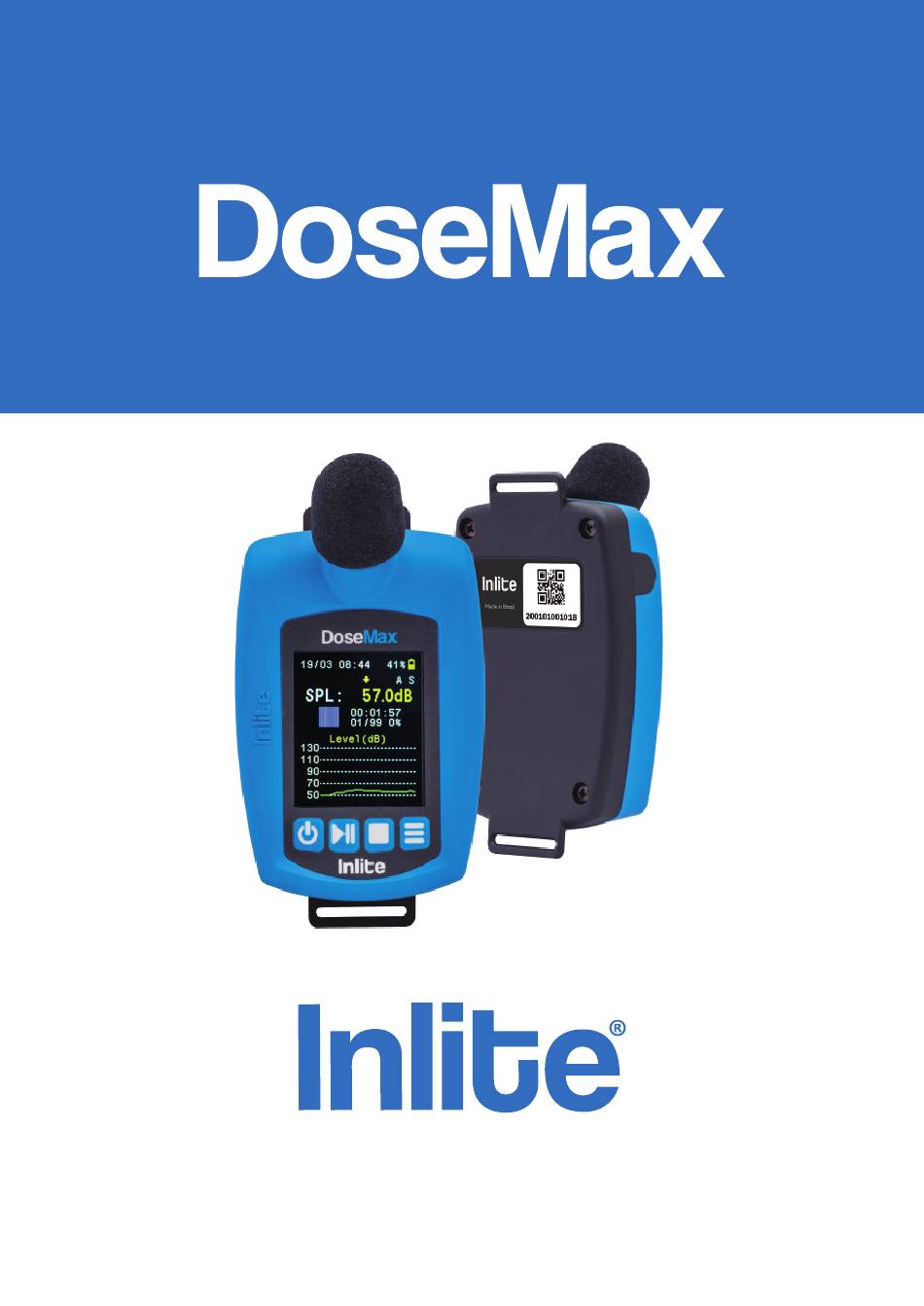

- Page 1 Manual Technolog Rev. 02 - February 2023...
- Page 2 COPYRIGHT All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission from Inlite Technology. TRADEMARK The Inlite Technology name and logo is a registered trademark.
- Page 3 Upon receipt of this document, the recipient agrees that all information contained in this document may not be disclosed, transferred for any other purpose than for the use of DoseMax, except with written authorization by Inlite Technology.
- Page 4 About the battery • The DoseMax contains a non-toxic lithium-ion battery with a high energy density, so it is extremely IMPORTANT that you know how to handle it properly. • NEVER recharge or use the DoseMax underground (mining) or in classified areas.
- Page 5 • Be careful NEVER to expose it to strong impacts and shocks. • DoseMax is not waterproof. NEVER submerge it in water. • Periodically clean the DoseMax cabinet with a cotton cloth (NEVER immerse it in water or clean with abrasive, corrosive or solvent products).
- Page 6 Index...
-
Page 7: Table Of Contents
1. Presentation 2. Technical specifications 3. Product Description 4. How to use 4.1. Turn on and off 4.2. Display screens 4.3. Settings menu 4.3.1. Dosimetry 4.3.1.1. Duration 4.3.1.1.1. Time 4.3.1.1.2. Work breaks 4.3.1.2. Interval 4.3.1.3. Schecule 4.3.1.4. Registers 4.3.1.4.1. Post calibration 4.3.1.5. -
Page 8: Presentation

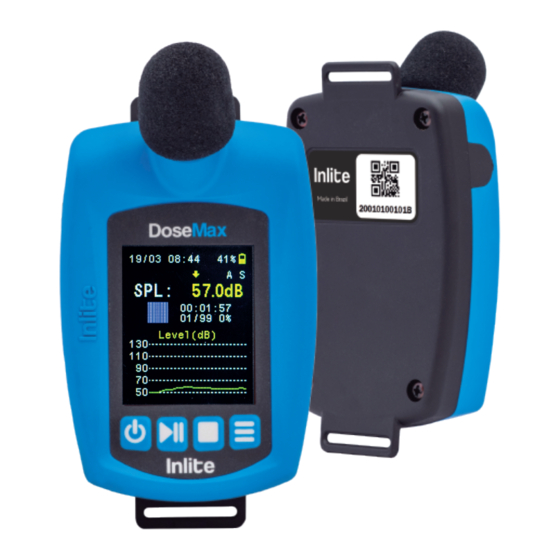

1. PRESENTATION A member of the Inlite family, that makes reference to the design and visual identity of the entire line of occupational safety instruments, the DoseMax Noise Dosimeter is based on instruments from major international brands with technology. DoseMax is a noise dosimeter manufactured in Brazil, developed with the most modern technology. -
Page 9: Technical Specifications
2. TECHNICAL SPECIFICATIONS Standards: IEC 61252, ANSI S1.25, IEC 60804, IEC 60651, IEC 61260, NR-15, NHO01 and Normative Instruction INSS/PRES No. 77/2015 Art. 258. 1/2 inch electret microphone; Display: 128 x 160 pixel color LCD with brightness adjustment; Measuring range: 60 to 140 dB;... -
Page 10: Product Description
3. PRODUCT DESCRIPTION 1. Display 2. On/off key 3. Play/pause key 4. Stop key 5. Menu key (settings) 6. Led 7. Mini USB cable input 8. Microphone 9. Lapel clip Date indication Active schedule indicator Record/pause/stop indicator Instant results according to selected screen Number of measurements performed and percentage of used memory... -
Page 11: How To Use
4.1. Turning on and off To turn DoseMax on or off, press the key for 3 seconds until the starting screen is displayed. 4.2. Display screens DoseMax has six display screens. To change screens, press the key or the key.’ “Level” Graph “Spectrum” Graph “Octaves”... -
Page 12: Settings Menu
4.3. Settings menu Press the key for 3 seconds to access the DoseMax menu. Use the key to select up, to select down and to confirm press the key 4.3.1. Dosimetry 4.3.1.1. Duration Select the “Duration” option and press the key to set the measurement and pause time. -
Page 13: Interval
4.3.1.4. Registers 4.3.1.4.1. Post calibration By selecting the “Registers” option, DoseMax will show the last dosimetries that were saved in the equipment. It also allows a post-calibration at any time, even after it has already been completed. The date and time this procedure was performed will be recorded and it will be informed at the time the report is issued. -
Page 14: Erase Registers
4.3.1.5. Erase registers Select the “Erase” option and press the key to delete all dosimetry stored in the equipment. To confirm erasing the registers, select down by pressing the key , to select up press the key and to confirm press the key 4.3.1.6. -
Page 15: Adjust
4.3.2. Adjust DoseMax performs 3 simultaneous dosimetries according to the NR15, NHO01 factory set standards and the customized USER standard. In the “Adjust” option, the settings refer to the “USER” customized standard. 4.3.2.1. Frequency weighting Select the option “Frequency W.” and press the key to set the frequency weighting between A, C and Z. -
Page 16: Threshold Level
4.3.2.3. Threshold Level Select the “Threshold Level” option and press the key to set the threshold level in the range of 60 to 90 dB at 1 dB resolution. Level that represents the minimum value to be considered in DOSE and LAVG calcula- tions. -
Page 17: Exchange Rate
4.3.2.5. Exchange rate Select the “Exchange Rate” option and press the key to set the exchange rate betwe- en 3 to 5. To decrease the exchange rate, press the key , to increase press the key and to confirm press the key 4.3.3. -
Page 18: Display
4.3.3.2. Display Select the “Display” option and press the key to set the display brightness and shutdown time. To decrease the brightness and the shutdown time press the key , to increase press the key and to confirm press the key 4.3.3.3. -
Page 19: Start Dosimetry
4.4. Start dosimetry 4.4.1. Pre calibrate To “start” a dosimetry, press and hold the key for 3 seconds until the “Pre-Calibrate” option is displayed. Select the level as applied in your calibrator and wait to finish the calibration until the red indicator on the display starts flashing for 20 seconds. After this time, dosimetry will start automatically. -
Page 20: Pause Dosimetry
“Level” Graph “Spectrum” Graph “Octaves” Graph “NHO01” “NR15” “USER” 4.5. Pause dosimetry To “pause” a dosimetry, press and hold the key for 3 seconds until the yellow pause indicator is displayed. -
Page 21: Stop Dosimetry
4.6. Stop dosimetry 4.6.1. Post calibrate To “stop” a dosimetry, press and hold the key for 3 seconds until the “Post Calibrate” option is displayed. Select the level as applied in your calibrator and wait to finish the calibration until the blue indicator is displayed. 4.7. -
Page 22: Warranty
5. WARRANTY DoseMax has a 1 (one) year warranty. The items commercialized by Inlite are tested in a Quality Control process that extends confidence and tranquility to its user in the execution of their measurements. For this reason, Inlite warrants all its products to be free from manufacturing defects. - Page 23 Rev. 02 - Fevereiro 2023...
