ALTEC AIR FLOOR STAND ASSEMBLY
INSTRUCTIONS
Step 1: Identify the components of the Altec Floor Stand:
Diagrams are located on the last pages of this instruction guide. All floor stands
are made with the same design, custom to the size of the Refrigerated Air Dryer.

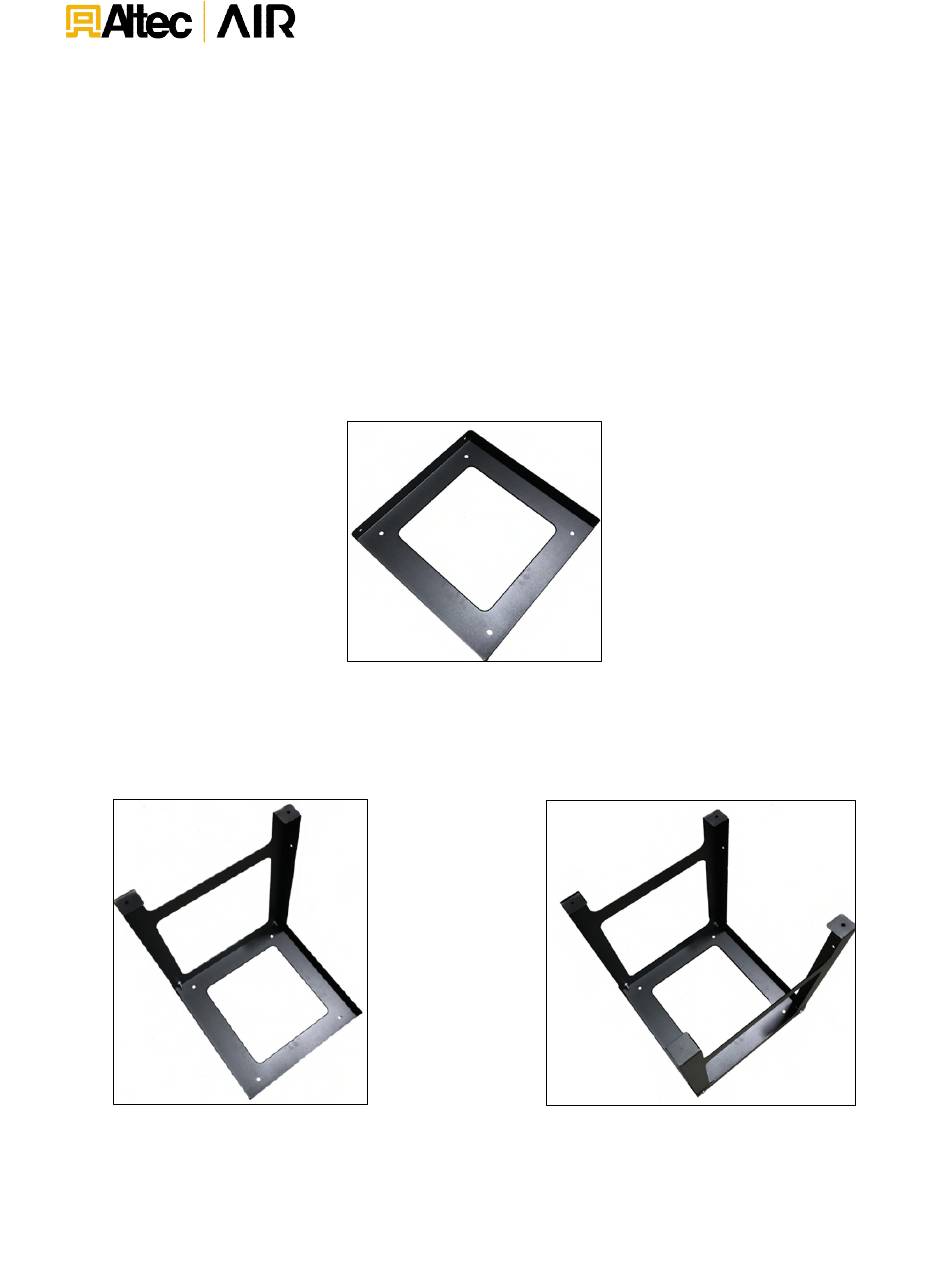

Step 2: It is easiest to assembly the Floor Stand upside down with the top panel
face down on the ground and the flanges facing up.

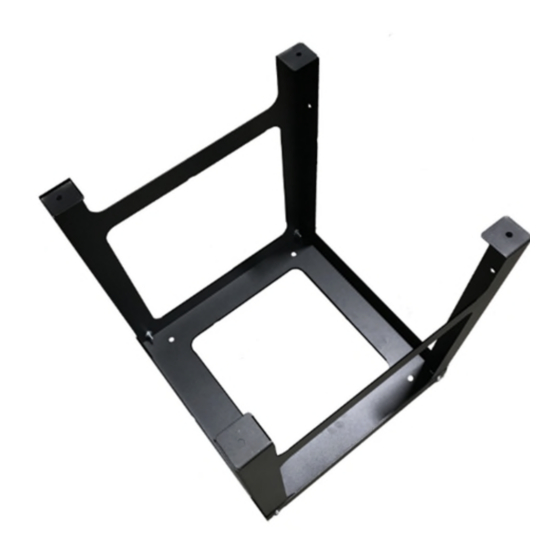

Step 3. Secure one side panel to the top panel using the supplied hardware and
holes provided. Repeat with the second side panel.
100520095-B
Advertisement
Summary of Contents for Altec AIR
- Page 1 Diagrams are located on the last pages of this instruction guide. All floor stands are made with the same design, custom to the size of the Refrigerated Air Dryer. Step 2: It is easiest to assembly the Floor Stand upside down with the top panel face down on the ground and the flanges facing up.
- Page 2 Anchor holes have been provided on the bottom of the legs for optional but recommended anchoring of Floor Stand to the floor. Step 7. Mount your Altec AIR Refrigerated Air Dryer to the Floor Stand using supplied hardware. Note: If you own a RAD-0025, RAD-0040, or RAD-0055 unscrew the rubber feet currently mounted to the bottom of the unit.
- Page 3 100520095-B...
- Page 4 100520095-B...
- Page 5 100520095-B...
- Page 6 100520095-B...
