Summary of Contents for Goodway VS-B-DISPLAY

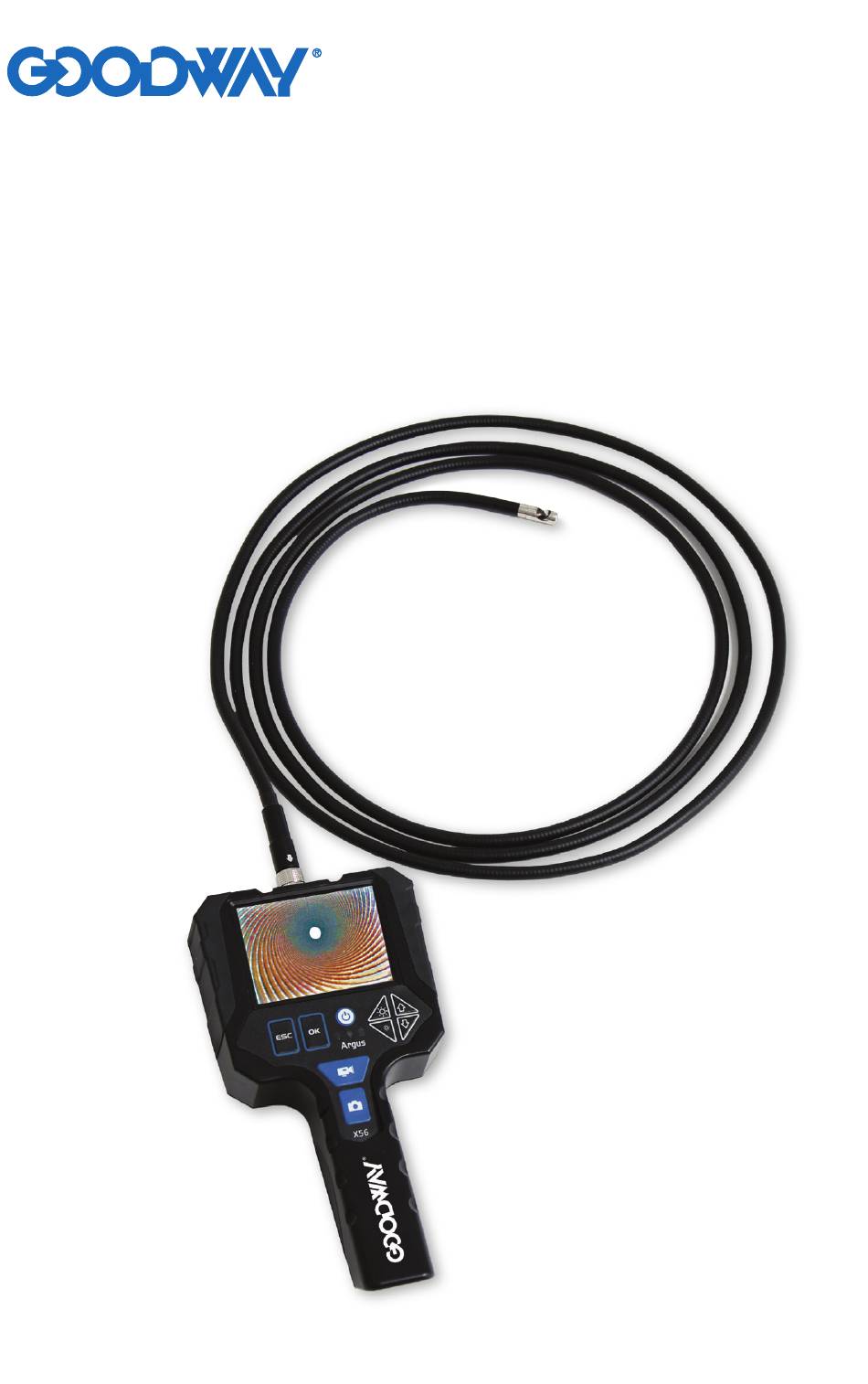

- Page 1 VS-B-DISPLAY Video Inspection Scope Operating and Maintenance Instructions Read before operating.
-
Page 2: Table Of Contents
SPARE PARTS ..........................9 Thank you for purchasing this Goodway Video Inspection Scope. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine. -
Page 3: General
Keep this manual with the unit at all times. Service must be performed by qualified personnel. Use only Goodway specified replacement parts. Do not use tool if switch does not turn it off. Store idle tool out of reach of children or untrained persons. -
Page 4: Identifying Parts
IDENTIFYING PARTS 1. Charging Indicator Light 10. Brightness Down Key 2. DCIN Indicator Light 11. Record Video Key 3. Power/SD Card Detection 12. Picture Key Indicator Light 13. SD Card Slot 4. Power On/Off 14. Reset Button 5. OK Key 15. -
Page 5: General Features
GENERAL FEATURES Button Video Mode Play Mode Set Up Mode Enter setup menu Enter setup menu Execute the selected function Check the photo or Back to video mode Exit the menu video saved in SD card (enter play mode) Take photo Check backward Left key (display photo or video... -
Page 6: Installation
INSTALLATION Connect the 10’ (3m) or 30’ (9,1m) probe that was purchased with the VS-B-DISPLAY unit. Verify that the probe makes a good connection with the display, and that all buttons operate properly. If any part does not function properly, please contact Goodway Technologies at 1-800-370-2855. -
Page 7: Functions Of Photo Files And Video Files
FUNCTIONS OF PHOTO FILES AND VIDEO FILES Photo File: Video File: Zoom In Play View Zoom Out Pause Video Stop Video View Previous Image/Video Speed Up Video View Next Image/Video Rewind Fast Forward HOW TO USE THE PLAY MENU Once a file is selected, press the OK key again. That will bring you into the play menu. The following options are available: 1. -
Page 8: How To Edit The Setup Menu Options
HOW TO EDIT THE SETUP MENU OPTIONS To access the Setup Menu, go to either the Play Menu or the Video Menu. Once in the menu, press the Record Video Key to access the Setup Menu. In the Setup Menu, the following will be available to edit: 1. -
Page 9: Spare Parts
SPARE PARTS Part Number Description Image VS-B-10-PROBE Probe, 10' (3m) Length VS-B-30-PROBE Probe, 30' (10m) Length VS-B-30-REEL Reel, for 30' (10m) Probe VS-B-90DEG Lens, 90 Degree Mirror VS-B-CHARGER Charger, VS-B VS-B-PROBE-TIP Tip, Thread Protector VS-B-DISPLAY Video Monitor Only VS-B 0120... - Page 10 Visit: www.goodway.com P/N MNL-VS-B ©Copyright 2020 Goodway Technologies Corp., Stamford, CT USA Effective date May 20, 2020 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
