Flooded Suction Tank
Operation Manual
FST
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
operation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FST and is the answer not in the manual?

Questions and answers

Summary of Contents for Foamit FST

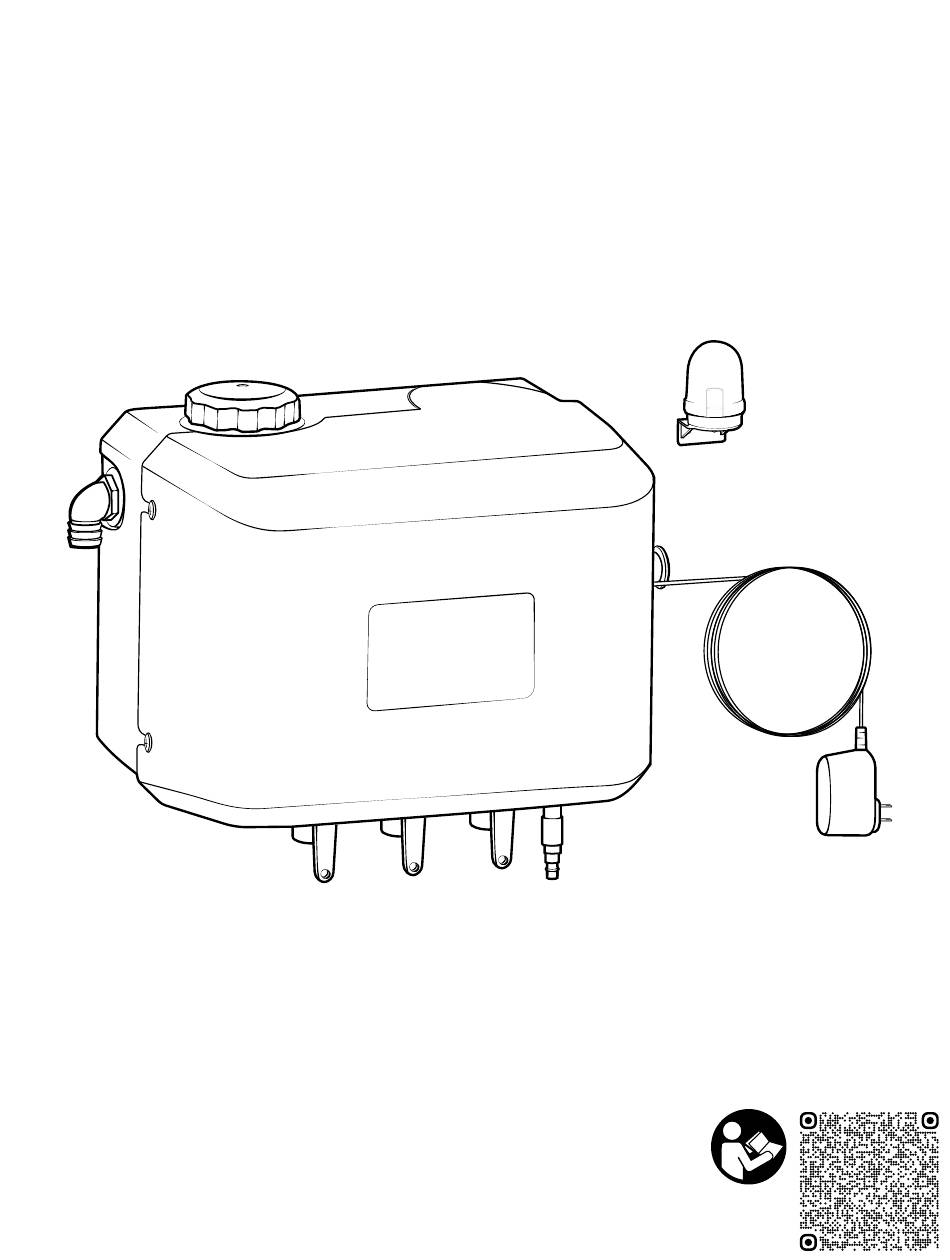

  • Page 1 Flooded Suction Tank Operation Manual READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions) operation manual...
  • Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: FST V20240125 • Page 2 of 9...
  • Page 3 PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model No.: FST Manufactured by: FOAMit 3833 Soundtech Ct. SE Grand Rapids, MI 49512 US This device complies with Part 15 of the FCC Rules for Class B devices.

  • Page 4: Product Overview

    Polypropylene ball valve with EPDM seals Pump seals Santoprene, Viton, Kalrez Fluid control valve seal Kalrez *Flow rates given are based on chemical with viscosity of water and factory air pressure settings. Model: FST V20240125 • Page 4 of 9...
  • Page 5 Product Components Get to know the FST components that you will need to use, adjust or assemble. Tank assembly • Front view Back view 1. Overflow port 2. Cap 3. Indicator light 4. Poly ball valve 5. Air fitting 6. Power supply 7.
  • Page 6 Product Components Plate assembly • Without lid 12. Quick-change pump 13. Controller 14. Float level sensor 15. Air regulator 16. Air control valve 17. PVC ball valve 18. Fluid control valve Model: FST V20240125 • Page 6 of 9...

  • Page 7: Using Your Unit

    11. Connect compressed air supply to air inlet fitting. 12. Check to ensure the PVC ball valve is in the open position. 13. Secure lid back to the unit by tightening all 4 screws. Model: FST V20240125 • Page 7 of 9...
  • Page 8 10. Before shutting down or using the unit with another chemistry, thoroughly flush the unit with water. 11. After the unit has been completely flushed, unplug the 24 VDC power adapter to shut down the unit. Model: FST V20240125 • Page 8 of 9...

  • Page 9: Maintenance

    To service your unit, refer to the service manual which includes: • Troubleshooting procedures. • Detailed parts breakdowns and illustrations. • Part numbers of serviceable components and assemblies. Scan this code for service manual Model: FST V20240125 • Page 9 of 9...
  • Page 10 Flooded Suction Tank Service Manual READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions) service manual...
  • Page 11 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: FST V20240125 • Page 2 of 9...
  • Page 12 PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Model No.: FST Manufactured by: FOAMit 3833 Soundtech Ct. SE Grand Rapids, MI 49512 US This device complies with Part 15 of the FCC Rules for Class B devices.
  • Page 13 • Unit error. Inspect the unit with the following instructions: on-board LED is red 1. Unplug the unit and inspect components. Plug back into power source. 2. If error persists, replace level sensor. Model: FST V20240125 • Page 4 of 9...

  • Page 14: Tank Assembly

    1/ 4 -20 x 1/2 in. bolt - stainless - truss 7 B142012-VS head Phillips - Vibra-Seal 8 BRKT-TPL Wall mounting toe plate bracket 9 TNK-4N-FST Tank - 4 gal natural - FST Model: FST V20240125 • Page 5 of 9...

  • Page 15: Plate Assembly

    Plate Assembly PA-FST: Plate assembly for FST units - Santoprene pump Additional plate assembly pump options: PA-FSTK: Kalrez pump PA-FSTV: Viton pump Item number Description Push button emergency PBS-ESTP stop switch - panel mount 2 WRHN-ESTP Wire harness for PBS-ESTP...
  • Page 16 - stainless M4 flat washer - stainless - 6 FW4MM 4.3 mm id x 9.0 mm od x 0.7 mm thk Locknut - M4 - stainless - 7 LN4MM nylon insert FCVA-FST Model: FST V20240125 • Page 7 of 9...
  • Page 17 Plate Sub-assemblies RGA-R25-FST: Regulator assembly for FST units - includes air gauge, plug, air control valve, quick fit, fittings, hose, and air fitting Item number Description Stainless elbow 1/ 4 in. MPT x SEL14M 1/ 4 in. MPT Air control valve - 24 VDC -...

  • Page 18: Additional Components

    - 0.28 in. id x 0.75 in. od x 0.05 in. thk 1/ 4 -20 x 1 in. bolt - stainless - 6 B14201 truss head Phillips 7 TNK-4N-LID-FST Tank - 4 gal natural - FST lid Model: FST V20240125 • Page 9 of 9...
