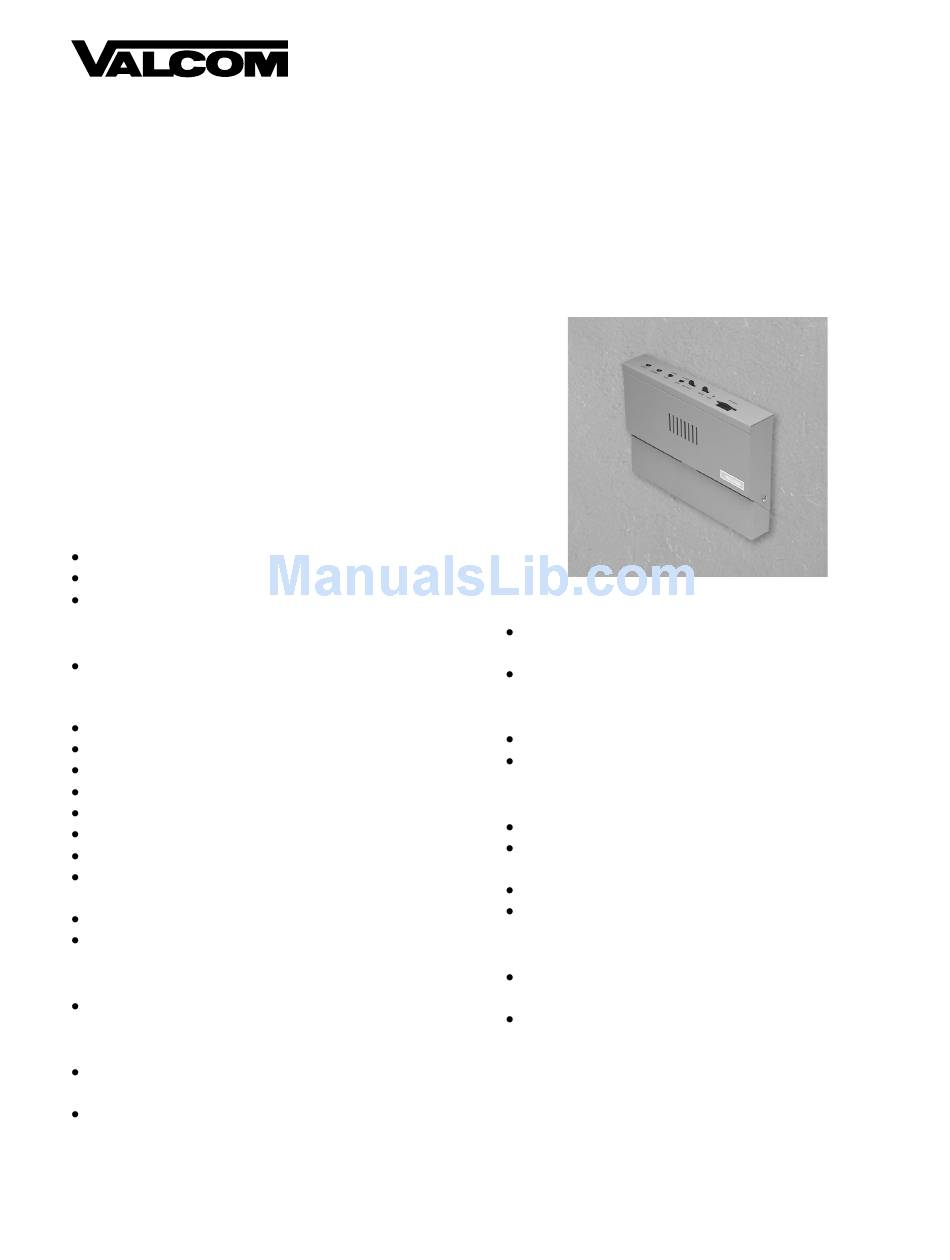

Valcom V-2952 User Manual

INTRODUCTION
The V-2952 FM Tuner may be used to provide a
music source for both background music for a paging
system and music-on-hold for a telephone system.
These instructions contain the specifications and
information necessary to install, operate, and maintain
the FM Tuner.
SPECIFICATIONS
Applications
Valcom Paging Systems
Stand Alone Background Music Systems
Music-On-Hold
Features
Two individual outputs each with volume control
a) Output 1: .5 watt
b) Output 2: Line level
Separate bass and treble tone controls
Frequency locked loop tuning system
External antenna provided
Internal speaker for monitoring
On/Off switch
Power on indicator
Powered by –24 Vdc or –12 Vdc
Power jack for use with receptacle mount power
supply
Wall or shelf mount
Local/Distant Signal reception switch
Options
–12 Vdc power supply available (VP-412A)
Capacity
V-2952 will drive one 8 Ohm or six 45 Ohm
speakers from the .5 watt output.
V-2952 will drive up to 150 Valcom one-way
amplified speakers from the line output.
V-2952
FM TUNER
Dimensions/Weight
6.19" H x 8.25" W x 1.55" D
(15.72cm H x 20.96cm W x 3.94cm D)
1.3 lbs (.59kg)
Environment
Temperature:
Humidity:
Performance (Nominal)
Frequency tuning range: 87.5 MHz to 108.5 MHz
Power Output:
S/N Ratio:
Distortion:
Power Requirements
Voltage:
Current:
1
VSP-V-2952
Issue 4
10 to 40 Degrees C
0 to 85% non-precipitating
.5 watt (at 8 ohms)
-10 dB (line out)
-50dB
less than 2% @ rated output
Power Input 1: –24 Vdc
Power Input 2: –12 Vdc
250 mA
947952
