ASHE STL-96 Operation Manual

Stream selector six channel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ASHE CONTROLS PRIVATE LIMITED.
S
S
STL-96
TREAM
ELECTOR
Operation Manual
OPERATION MANUAL
ASHE CONTROLS PRIVATE LIMITED.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STL-96 and is the answer not in the manual?

Questions and answers

Related Manuals for ASHE STL-96

Summary of Contents for ASHE STL-96

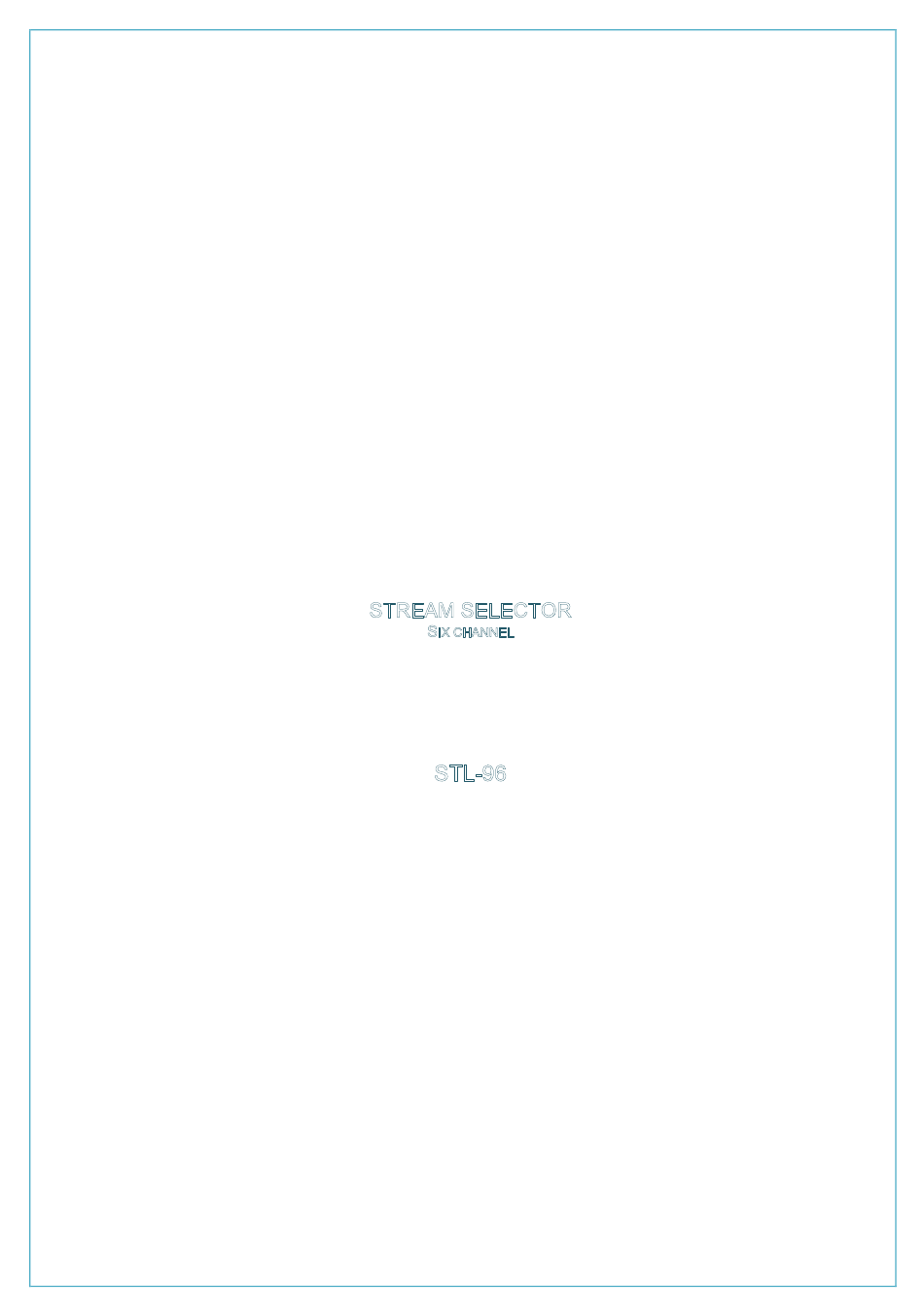

  • Page 1 ASHE CONTROLS PRIVATE LIMITED. STL-96 TREAM ELECTOR Operation Manual OPERATION MANUAL ASHE CONTROLS PRIVATE LIMITED.

  • Page 2: Definition Of Terms

    4 line back-lit OLED display which showsthe process status and various setting parameters for application specific timing and control of the six Streams. The STL-96 instrument provides a total of 18 nos. of potential freerelay contacts with LED indications on the front panel.

  • Page 3: Pause Mode

    Latched 4. MANUAL MODE The Stream Selector instrument STL-96 can be operated manually by means of the front selection key. The MANUAL MODE is available in both modes of operation, viz.: Timer andPulse Modes. When the instrument is in MANUAL MODE, the Manual LED on the front panel will light up.

  • Page 4: Auto Mode

    Operation Manual 5. AUTO MODE The instrument STL-96 can be operated automatically by means of the key on the front keypad. When the instrument is in AUTO MODE, the AUTO LED on the front panel will glow. The Stream selection is done by the internal microcontroller as per user settings.

  • Page 5: Page Mode

    ASHE CONTROLS PRIVATE LIMITED. STL-96 TREAM ELECTOR Operation Manual 6. PAGE MODE The PAGEMODE provides the operator with the last updated process values for all Streams on one screen.The process values of all channels can be viewed by pressing thePAGE/INC key on the front panel.
  • Page 6 STOP SETTINGS OF PARAMETERS POWER ON SCREEN The ASHE STL-96operates on universal AC power supply of 90 to 270VAC, 50Hz. When the instrument is powered ON, the display will go blank with only backlight for a period of 5 seconds.
  • Page 7 If there is no key process for 10 seconds, then the display will time-out and return to the process screen. INPUT CALIBRATION MODE The ASHE Stream Selector Model STL-96 is factory calibrated. As such, the instrument doesnot require any recalibration at the customer’s side. So do not enter into Input Calibration Mode unless the instrument requires recalibration.
  • Page 8 This will complete the input signal 4-20mA DC calibration of the instrument.Press theMODE key to exit from Input Calibration Mode. After pressing theMODE key, the OLED Display will return to PROCESS SCREEN. INPUT RANGE MODE: - The ASHE Stream Selector Model STL-96has the facility to change the resolution and range of the displayed process value.
  • Page 9 ASHE CONTROLS PRIVATE LIMITED. STL-96 TREAM ELECTOR Operation Manual Enter the number 02 into the Select Menu by using INC key in the PARAMETER SETTING MODE SCREEN. Press theMODE key to enter into Input Range Mode.After pressing theMODE key, the OLED Display...
  • Page 10 After pressing theMODE key, the OLED Display will return to the normal PROCESS SCREEN. STREAM SKIP MODE The ASHE Stream Selector Model STL-96offers the facility to SKIP a particular stream from the process. Also one can set the Sampling Time of a Stream from 0001 to 9999 seconds which is usefulduring operation in Timer Mode.
  • Page 11 After pressing theMODE key, the OLED Display will return to the normal PROCESS SCREEN. STREAM ALARMS MODE The ASHE Stream Selector Model STL-96 provides individual Low and High Alarm for each stream. The Low and High Alarms can be set throughout the range.
  • Page 12 After pressing MODE key, the OLED Display will return to the normal PROCESS SCREEN. RETRANSMISSION (4-20mA DC) OUTPUT CALIBRATION MODE The ASHE Stream Selector Model STL-96provides individual 4 to 20mA retransmission output for each stream. All retransmission outputs are factory calibrated and donotrequire recalibration at the customer’s side.
  • Page 13 OLED Display will return to normalPROCESS SCREEN. SETTING MODE The ASHE Stream Selector Model STL-96 provides both, AUTO and MANUAL modes of operation. One can select AUTOor MANUAL mode directly from the front panel key. There are two sub-mode options in the AUTO mode of operation, viz.
  • Page 14 ASHE CONTROLS PRIVATE LIMITED. STL-96 TREAM ELECTOR Operation Manual Use the SHIFT key to shift the cursor to desired digit and INC key to select desired number of stream (01 to 06). Thishas to be activated at the time of Power ON.

  • Page 15: Terminal Diagram

    ASHE CONTROLS PRIVATE LIMITED. STL-96 TREAM ELECTOR Operation Manual TERMINAL DIAGRAM The terminal details of the Stream Selector Model STL-96 are as under: UPPER ROW TERMINAL BLOCK NOTATION DETAILS RELAY -1 RELAY 2 RELAY 3 STREAM OUTPUT RELAY RELAY 4...
  • Page 16 ASHE CONTROLS PRIVATE LIMITED. STL-96 TREAM ELECTOR Operation Manual COMMUNICATION MODBUS LOWER ROW TERMINAL BLOCK NOTATION DETAILS AC POWER SUPPLY 90-270 V AC, 50/60 Hz RELAY 7 RELAY 8 LOW ALARM RELAY 9 RELAYS RELAY 10 RELAY 11 RELAY 13...

  • Page 17: Technical Specifications

    ASHE CONTROLS PRIVATE LIMITED. STL-96 TREAM ELECTOR Operation Manual TECHNICAL SPECIFICATIONS Model STL-96 Type Micro-controller based Stream Selector. Input Signal Analog 4 to 20mA DC (4 - Wire) Digital Pulse Input (For Stream Selection) Number of Streams Six nos. Display 20 x 4 Alphanumeric OLED Displaywith white Backlight and Black Text.
