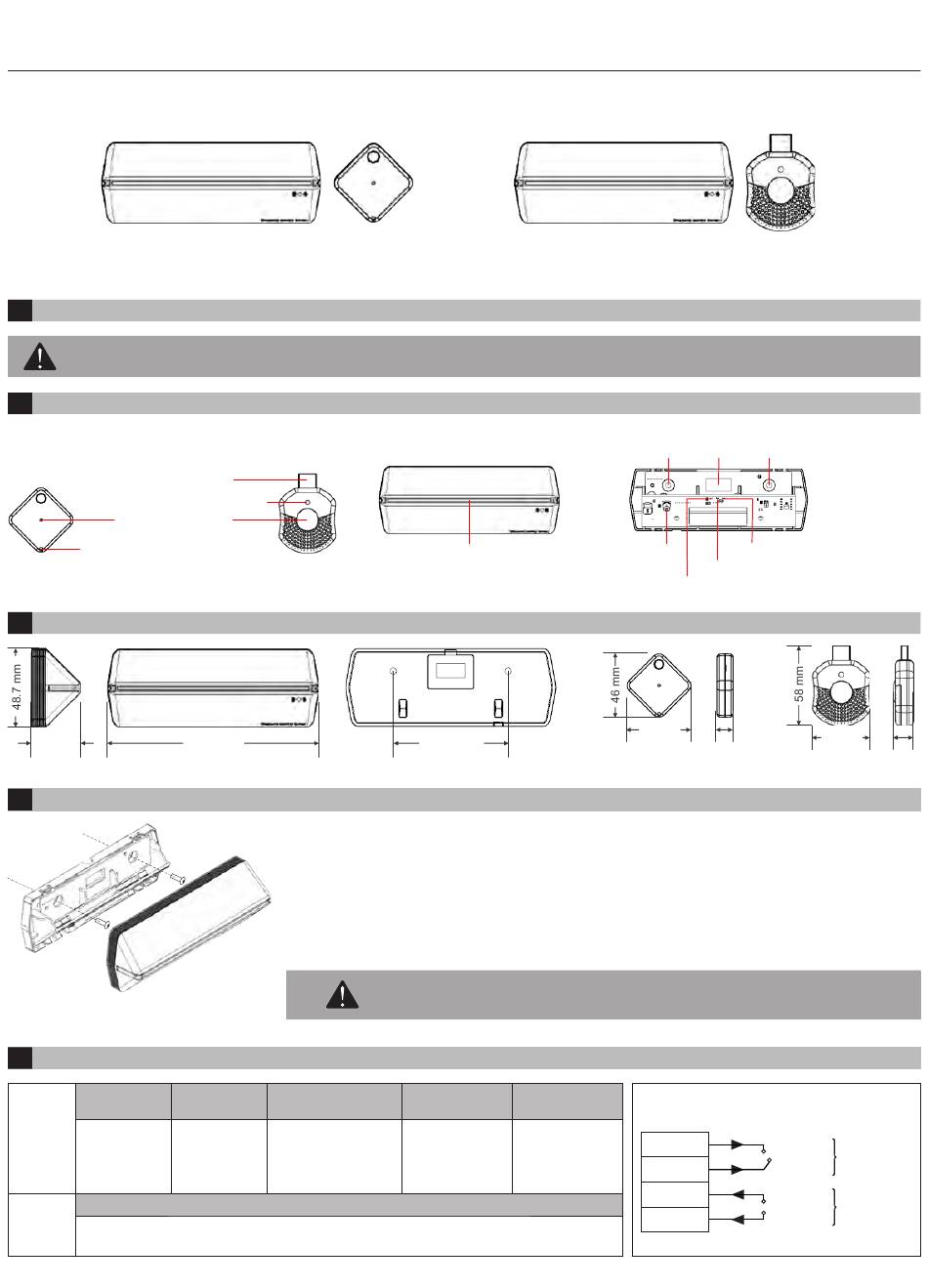

Olide M-701W Operation Instructions

Operation Instructions
M-701W Electronic identity sensor
1
Safety Instructions
Thanks for your purchasing, please refer to the following manual carefully before using.
2
Product Overall
Tag:
Tag USB interface
Tag's operating indicator lights
Tag's function key
Tag's operating indicator lights
3
Product Dimension
31 mm
4
Installation Instruction
5
Led Indicators And Wiring Instruction
Red indicator Red indicator
always on
Sensor
Standby state
Tag
M-701W M-701(0)
132 mm
Receiver:
1. Pry and open the housing by a screwdriver along the notch on the bottom of the receiver.
2. Drill two mounting fixing holes and one cable hole according to the size drawing, in the
appropriate position on the door head where the receiver needs to be installed.
3. Fix the receiver with the provided screws bag.
4. Thread the cable through the hole with the attached cable carefully.
5. After debugging, buckle the cover tightly.
Tag: M-701(0): Remove the screws, pry and open the housing by a screwdriver along the notch on
the side, and fasten the screws after installing the battery.
M-701C(0): Plug it into the USB port of the forklift or robot.
Blue indicator
flashes always on
Receive a Receive a matched
matchable tag signal and output
tag signal opening signal
Red indicator flashes
Receive the sensor's sensing signal
and output opening signal
Sensor:
LED indicator
72 mm
NOTE: Please don't install the receiver on the metal surface, or place it
behind the metal baffle, it will affect the sensing range.
Green indicator
Green indicator
flashes always on
Wi-Fi connection Wi-Fi connection
mode successfully
M-701W M-701C(0)
Mounting Connection
holes terminal
Wi-Fi indicators light (Green)
Function button
Action indicator light (Blue)
Power input indicator light (Red)
46 mm
11 mm
Wiring Instruction
BLUE
GREEN
RED
BLACK
Make your choice...
Mounting
holes
38 mm
12 mm
COM
Relay NO
contact
NO
AC/DC
Power input
12~30V
