Rondish UT-11 Quick Start Manual

Rondish Company Limited

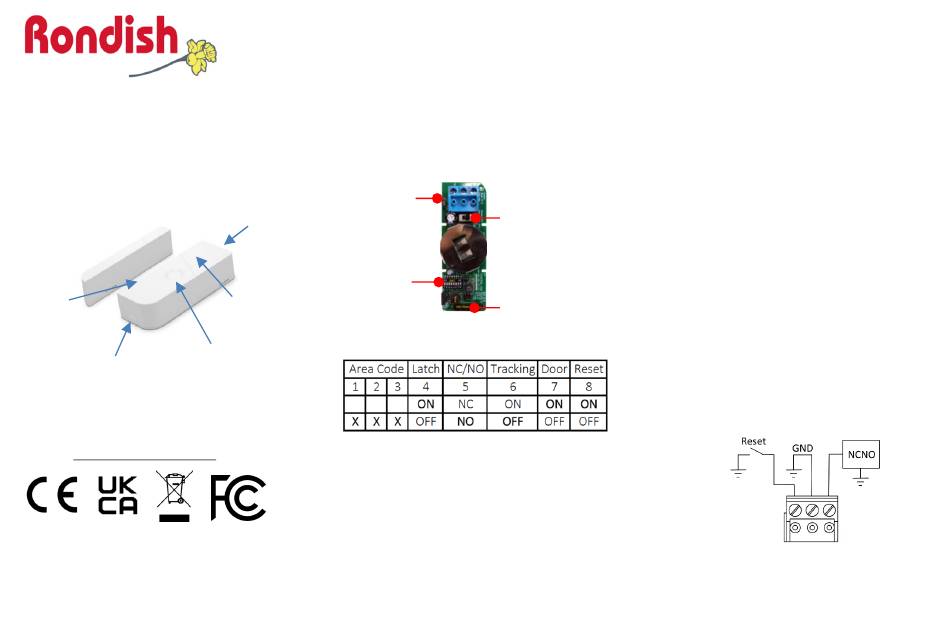

Universal Transmitter
Door/Window Sensor
Door
Magnetic
Switch
Reset Button
Cable Exit
FCCID: WNG-UT-11
Manufactured by Rondish Company Limited
Unit G&H, 4/F, Block 1, Kwai Tak Ind. Ctr.,
15-33 Kwai Tak Street, Kwai Chung, N.T.
Hong Kong

Setup

Step 1: Open UT-11 housing

- The bottom cover can be opened for the access
the power switch, external device connector, and
settings dip switch.
External device
User
terminal connector
Magnetic
Switch
(U.M.S)
Settings
Red/Green
dip switch
LED

Step 2: Select settings (defaults in bold)

- Area code: allows alarms to be filtered on a
central monitor; ranges between 0-7 depending
on switch positions of 1-3:
0 – Off, Off, Off
1 – Off, Off, On
2 – Off, On, Off
3 – Off, On, On
- Latch: when OFF the UT-11 will transmit reset as
soon as it closes. When ON it transmits a reset
www.rondish.com
On/Off switch
UMS
4 – On, Off, Off
5 – On, Off, On
6 – On, On, Off
7 – On, On, On
only when the Reset Button is pressed, or
magnetic fob (Reset Key) is applied to the UMS.
- NC/NO: controls whether the UT-11 accepts a
connected a Normally Closed or Normally Open
device. Door setting should be OFF if used.
- Tracking: when enabled the UT-11 sends a
heartbeat every 20 mins. (out of range detection)
- Door: when enabled the UT-11 will monitor
whether the provided magnetic sensor switch is
open or closed. Turn this OFF if you will connect
an external device.
- Reset: when ON the Reset button is enabled.
When OFF you must touch a magnetic fob to the
UMS to send a reset signal

Step 3: Connect external device (if needed)

- Remove the cable exit plastic cover for the cable
connection.

Step 4: Turn transmitter on

- Move the On/Off switch to the ON position (left).
The red LED on top housing will be on for ~2s
