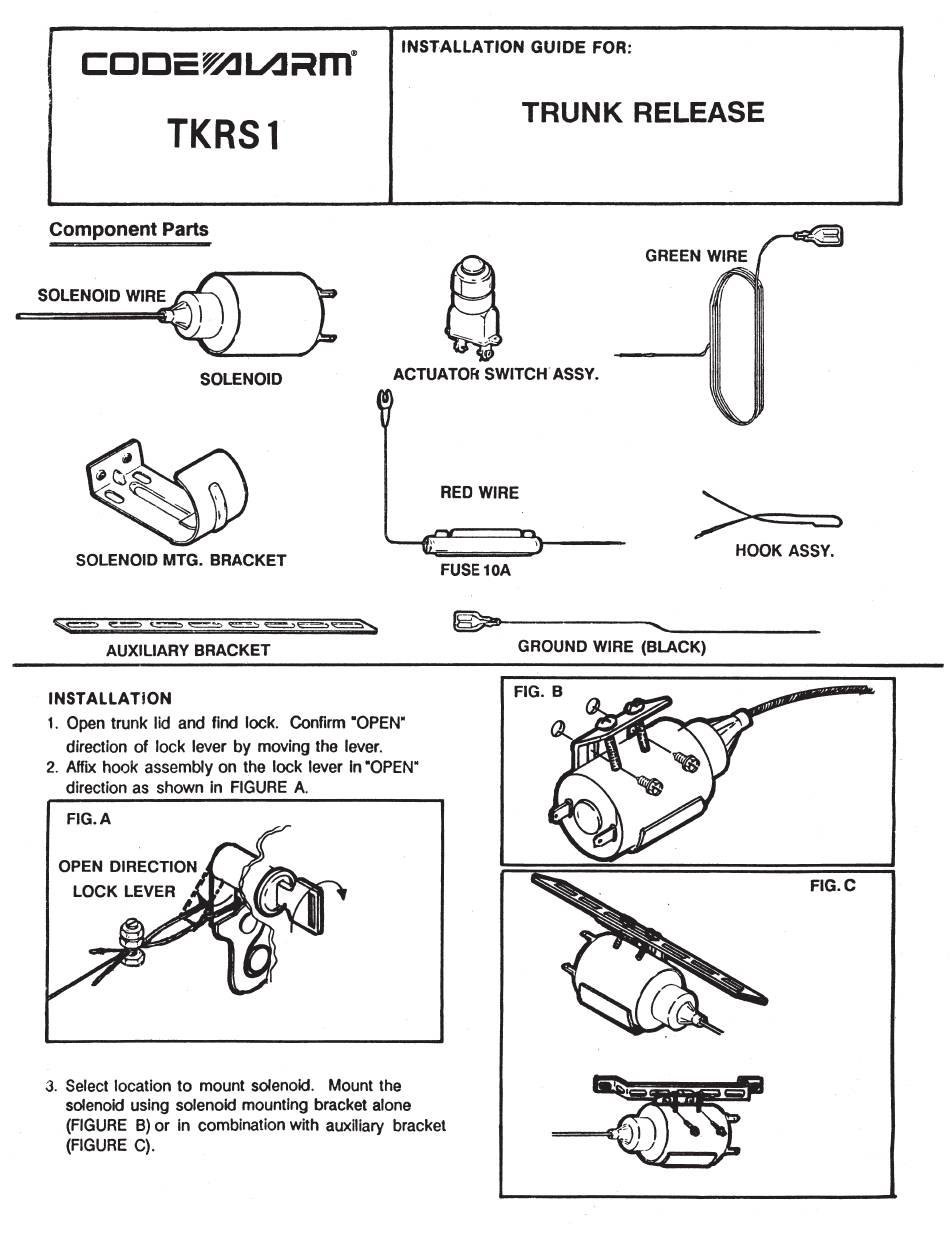

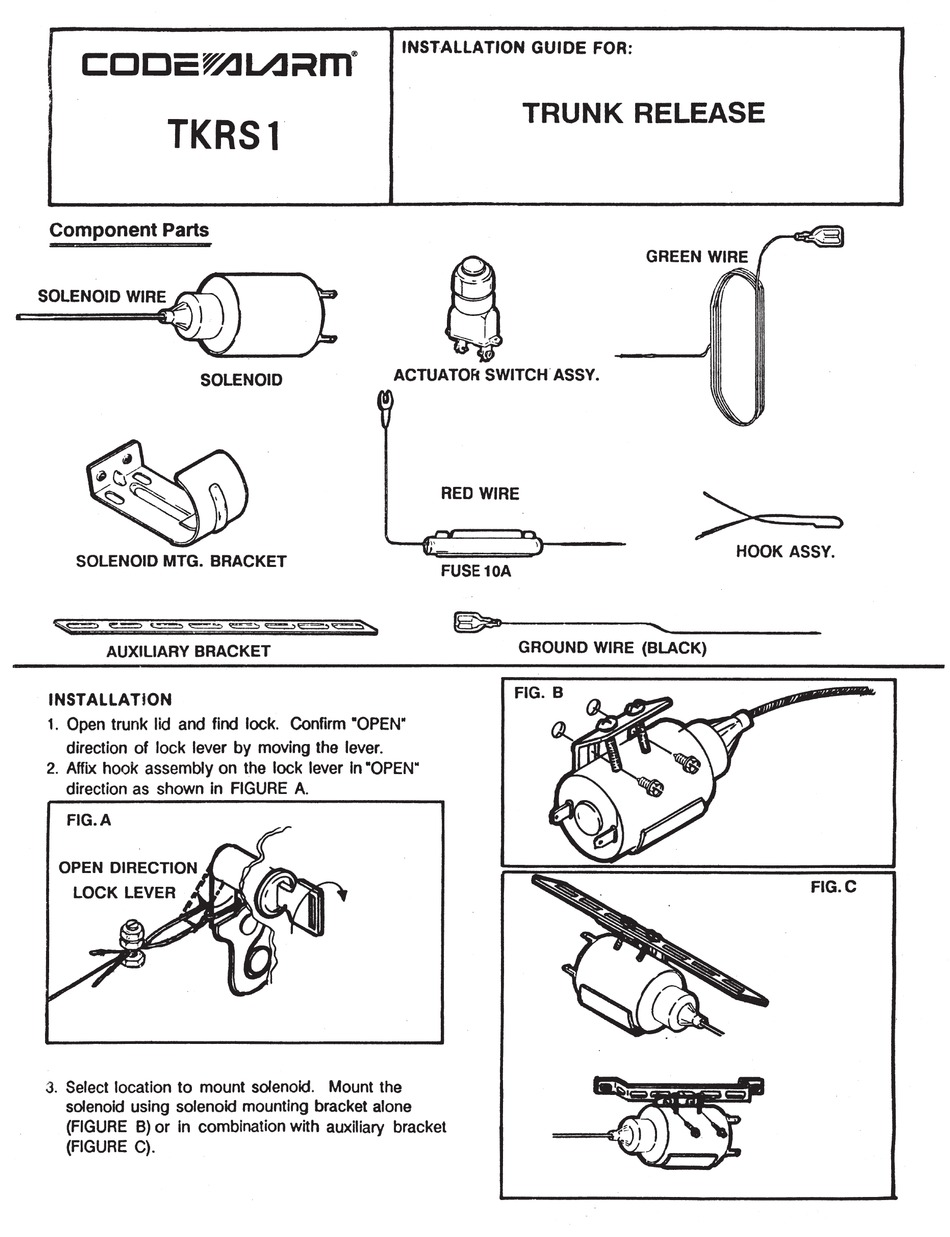

Code Alarm TKRS1 Installation Manual

INSTALLATION GUIDE FOR:
TKRSl
TRUNK RELEASE
Component Parts
SOLENOID
WIR~ . ~
SOLENOID ACTUATOfi SWITCH ASSV.
RED WIRE
>==
SOLENOID MTG. BRACKET
HOOK ASSV.
FUSE10A
~~----
~
........_..._
_____ _
AUXILIARY BRACKET
INSTALLATION
1. Open trunk lid and find lock. Confirm ·oPEN"
direction of lock lever by moving the lever.
2. AffiX hook assembly on the lock lever In ·oPEN"
direction as shown In FIGURE A.
FIG. A
OPEN DIRECTION
LOCK LEVER
3. Select location to mount solenoid. Mount the
solenoid using solenoid mounting bracket alone
(FIGURE B) or in combination with auxiliary bracket
(FIGURE C).
GROUND WIRE (BLACK)
FIG.C
