Summary of Contents for DS2 DS472LT6

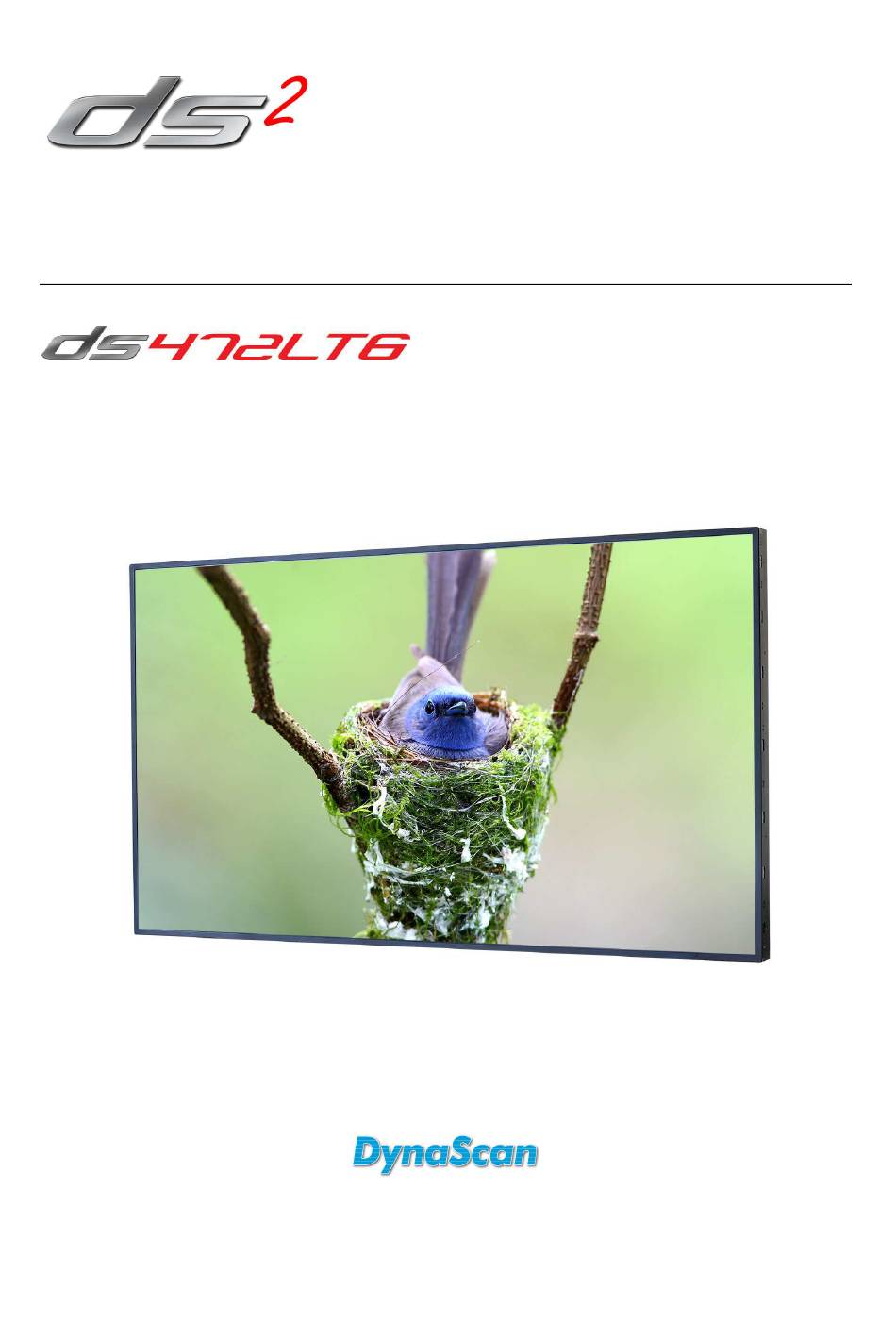

- Page 1 Professional LCDs User Manual Version 2.02 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
-
Page 2: Table Of Contents
Input Mode ............................27 Pin Assignments ........................... 28 Digital RGB Output (DVI-D): DVI ...................... 28 Digital RGB Input (DVI-D): DVI ......................28 RS-232 Output ..........................29 RS-232 Input ............................ 29 Troubleshooting ............................ 30 Network User Interface ......................... 31 DS472LT6 User Manual 1... -
Page 3: Limited Warranty
DYNASCAN PRODUCTS, AND ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. DYNASCAN SPECIFICALLY DOES NOT REPRESENT THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY OR MAKE A PRODUCT EXCHANGE WITHOUT RISK TO OR LOSS OF PROGRAMS OR DATA. DS472LT6 User Manual 2... -
Page 4: Material Contents Declaration
When replacing old appliances with new one, the retailer is legally obligated to take back your old appliances for disposal at least for free of charge. DS472LT6 User Manual 3... -
Page 5: Declaration Of Conformity
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Declaration of the Manufacturer We hereby certify that the Professional LCD DS472LT6 is in compliance with Low Voltage Directive 2006/95/EC... -
Page 6: Safety Precautions
This phenomenon is known as image burn-in and is not covered by the manufacturer's warranty. In order to avoid burn-in, avoid prolonged display of static or fixed images on the screen. DS472LT6 User Manual 5... -
Page 7: Important Safety Information
Do not use any of the following solutions to clean the casing as they may damage the paint and cause it to crack or peel: benzene solution, alkaline solution, alcohol-based cleaning solution, glass cleaner, wax, polisher, or detergent. DS472LT6 User Manual 6... -
Page 8: Getting Started
Do not touch the leaked substance from the batteries in case of a battery leakage. Doing so may hurt human skin. Note: If the remote control is not going to be used for a long time, we recommend removing the batteries from the remote control. DS472LT6 User Manual 7... -
Page 9: Installation
Do not install the wall mount while the power is turned on as it may cause serious injury due to electrical shock. Screw Model Number VESA (mm) Screw Length Number Specification Greater than 10mm Smaller than 12mm DS472LT6 (A * B) 400 * 400 (not including wall mount thickness) DS472LT6 User Manual 8... - Page 10 Leave clearance around the outer edge of the LCD (or video wall matrix) from other objects to ensure proper ventilation. • For installations with screens inset into the wall, refer to section: Enclosures for cooling and ventilation considerations. DS472LT6 User Manual 9...
- Page 11 Inspect the fasteners regularly for signs of loosening or deformation. Please perform appropriate corrective measures when a problem is identified. Neglecting the problem may worsen the situation. • Increase the inspection frequency on areas where previous maintenance had occurred to ensure the problems do not occur again. DS472LT6 User Manual 10...
-
Page 12: Wall Mounting
DVI-IN (or DP-IN) on the back of the display shown the in the diagram below. Connect the other end of the DVI cable (or DP cable) to the DVI output (or DP output) of the video source. Refer to your video device’s manual for additional information. DS472LT6 User Manual 11... -
Page 13: Connecting Multiple Displays For Video Wall Applications
Use the OSD Menu or Display Manager software to configure the size of the video wall and the position of each display. Note: The maximum number of DS472LT6’s in a Video Wall is 15x15. Note: The DynaScan “Display Manager” application is required to be installed on the PC in order to use the External Control feature. - Page 14 DP (OUT) RS-232 (OUT) DVI (OUT) or DP (IN) RS-232 (IN) DVI (IN) DISPLAY 1 RS-232 (OUT) DVI (OUT) RS-232 (IN) DVI (IN) DISPLAY 2 RS-232 (OUT) DVI (OUT) RS-232 (IN) DVI (IN) DISPLAY 3 DS472LT6 User Manual 13...
-
Page 15: Connector Positions
Connector Positions AC (OUT) AC (IN) Power Switch RJ-45(IN) RS-232 (IN) DVI (IN) DP (IN) DVI (OUT) RS-232 (OUT) DS472LT6 Unit: mm DS472LT6 User Manual 14... -
Page 16: Input / Output Terminals
Audio (OUT): Connect the audio signal output from Audio IN jack to an external AV device. 10. Power Switch: Press to switch the main power on/off. 11. AC (IN): Connect the supplied power cord to the wall outlet. 12. AC (OUT): AC outlet 110~220V up to 100 Watt. DS472LT6 User Manual 15... -
Page 17: Operating Instructions
When using the remote control, aim the remote at the IR receiver on the display. The IR receiver on the DS472LT6 model is at the rear of the display with a receiving angle of 100 degrees. The IR receiver configurations of the model are shown in the figure below. - Page 18 DS472LT6 Unit: mm DS472LT6 User Manual 17...
- Page 19 OSD On / Off Move the cursor up or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. DS472LT6 User Manual 18...
-
Page 20: Using The Rear Panel Controls
OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DS472LT6 User Manual 19... -
Page 21: Navigating The On Screen Display (Osd) Menu
Note: The feature is only supported on User Picture mode. Adjust the blue light level. Range 0 – 100. Note: The feature is only supported on User mode. Contrast Adjust the contrast level. Range 0 – 100. Gamma Native Adjusts the Gamma value. DS472LT6 User Manual 20... - Page 22 Horizontal position in a video wall. Choose to turn the frame compensation function on or off. When turned on, the Bezel display will adjust the image to compensate Compensation the width of display bezels in order to accurately display the image. DS472LT6 User Manual 21...
- Page 23 If enabled, the display will assign DHCP the IP address, Subnet mask and Default gateway automatically. If disabled, the Network following values will be entered manually. 192.168.0.100 Assign IP address. Mask 255.255.255.0 Assign Subnet mask. Gateway 192.168.0.1 Assign Default gateway. DS472LT6 User Manual 22...
- Page 24 "RGB Full" for video source uses all levels from 0 to 255 levels. Restore all settings to default. Reset to Default Note: It does not modify CURRENT TIME, Setting POWER ON TIME and POWER OFF TIME. DS472LT6 User Manual 23...
- Page 25 Information 2 Firmware The F/W version. Some functions may not be available for all models. *Adjusted value: Each R/G/B value for this product has been individually adjusted during production to a preset color temperature of 6500K. DS472LT6 User Manual 24...
-
Page 26: Converting From Dynamic To Static Ip
Type the IP address settings in the IP address, Subnet mask, and Default gateway boxes. Advance > Remote Control Turn the Network to RS232 (a→b), and then back again to Network (b→c). The static IP settings have been successfully changed. DS472LT6 User Manual 25... -
Page 27: Specifications
RS-232 IN *1 / OUT *1 RJ-45 IN *1 Audio IN *1 / OUT *1 Fuse Design and specifications are subject to change without notice. The resolution of DVI-D out is 1920 x 1080 (1080p) only. DS472LT6 User Manual 26... -
Page 28: Input Mode
60 Hz 40 MHz 1024 60 Hz 65 MHz 50 Hz 1280 74.25 MHz 16:9 60 Hz 1280 60 Hz 79.5 MHz 1360 60 Hz 85.5 MHz 16:9 50 Hz 1920 1080 148.5 MHz 16:9 60 Hz DS472LT6 User Manual 27... -
Page 29: Pin Assignments
PIN ASSIGNMENT OF DVI CONNECTOR RX2- RX1- RX0- RX2+ RX1+ RX0+ Shield (RX2 / RX4) Shield (RX1 / RX3) Shield (RX0 / RX5) DDC-Serial Clock +5V power Shield (RXC) DDC-Serial Data Ground RXC+ Hot plug detect RXC- DS472LT6 User Manual 28... -
Page 30: Rs-232 Output
NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS472LT6 User Manual 29... -
Page 31: Troubleshooting
Cannot control the display • Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS472LT6 User Manual 30... -
Page 32: Network User Interface
Network User Interface DS472LT6 User Manual 31... - Page 33 Change the Menu orientation. The Menu can be displayed in either Display Mode LANDSCAPE or PORTRAIT mode. Turn on / off image burn-in protection. Screen Save Interval Set image burn-in protection interval. Remote Control Choose to use the remote control function RS232 or Network. DS472LT6 User Manual 32...
- Page 34 Reset to Factory Note: It does not modify CURRENT TIME, POWER ON TIME and POWER Default OFF TIME. Apply Save the system for the changes to take effect. Cancel Exit the system without saving any changes. DS472LT6 User Manual 33...
- Page 35 www.dynascanusa.com Copyright © DynaScan Technology, Inc. All Rights Reserved.
