Summary of Contents for Rittal DK 7030.440

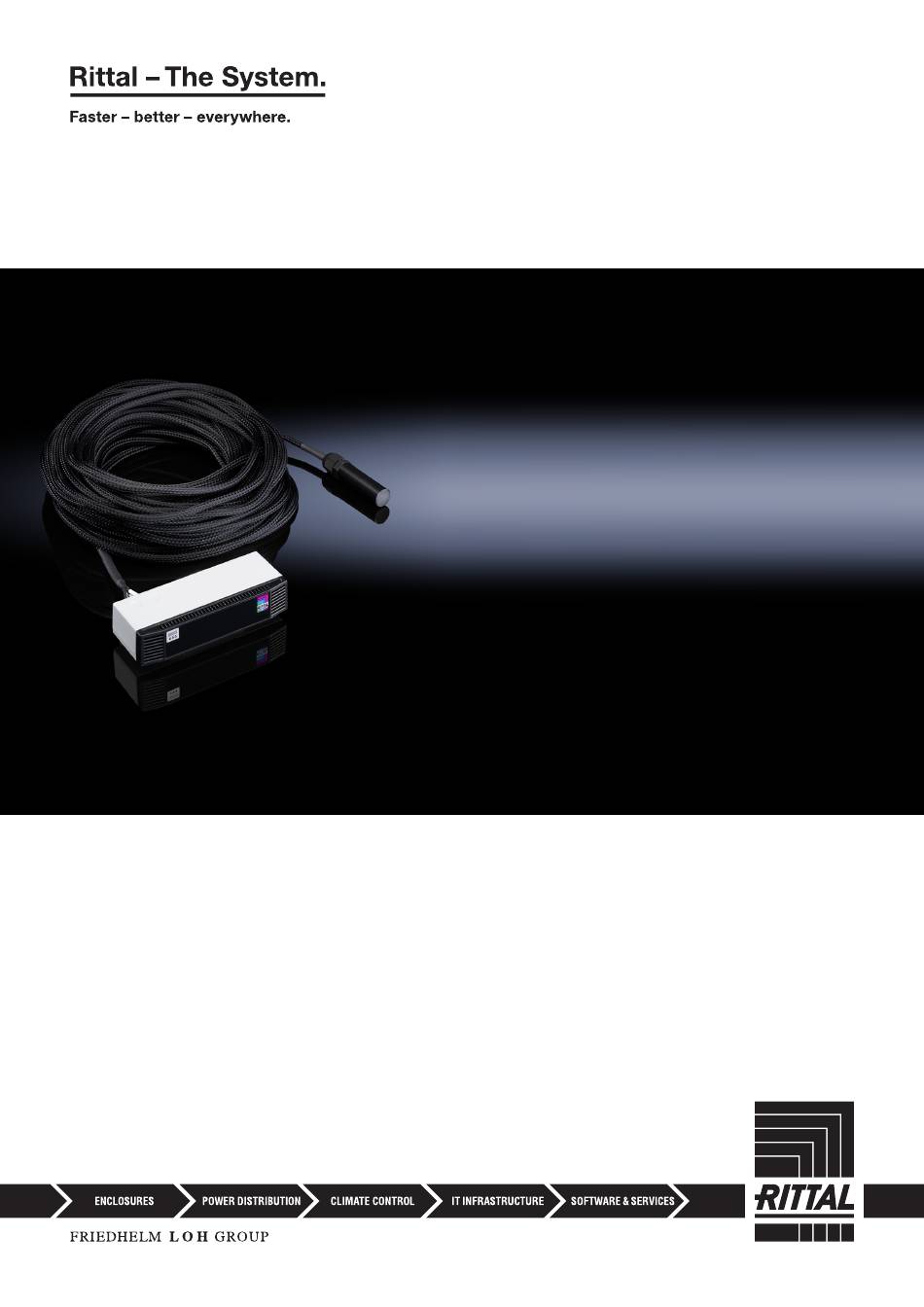

- Page 1 CMC III leak sensor, 15 m DK 7030.440 Assembly and operating instructions...
- Page 2 Preface Preface Dear Customer! Thank you for choosing a CMC III leak sensor, 15 m (hereafter referred to as "leak sensor") from Rittal! We wish you every success. Yours, Rittal GmbH & Co. KG Rittal GmbH & Co. KG Auf dem Stuetzelberg...
-
Page 3: Table Of Contents
Operating via the CMC III Processing Unit website ............11 6.4.1 Device ..............11 6.4.2 Leakage ............. 12 Storage and disposal ..... 13 Storage............13 Disposal............13 Technical specifications ....14 Customer service addresses ..15 Rittal CMC III leak sensor, 15 m... -
Page 4: Notes On Documentation
This documentation shows the English screenshots. The descriptions of individual parameters on the Rittal GmbH & Co. KG hereby confirms that the CMC III CMC III PU website likewise use English terminology. leak sensor, 15 m is compliant with the EU EMC Direc- Depending on the set language, the displays on the tive 2014/30/EU. -
Page 5: Safety Instructions
Please observe the following general safety instructions when installing and operating the system: – Use only original Rittal products or products recom- mended by Rittal in conjunction with the leak sensor. – Please do not make any changes to the leak sensor that are not described in this user manual or in the as- sociated assembly and operating instructions. -
Page 6: Product Description
Rittal GmbH & Co. KG is not liable for any damage which may result from failure to comply with the documenta- tion provided. The same applies to failure to comply with the valid documentation for any accessories used. -
Page 7: Transport And Handling
Check the unit for any damage that may have oc- curred during transport. Note: Damage and other faults, e.g. incomplete de- livery, should be reported immediately, in writing, to the shipping company and to Rittal GmbH & Co. KG. Remove the unit from the PE film. ... -
Page 8: Installation
Attaching the sensor to the bracket Move the sensor sideways slightly on the bracket so Connect the sensor cable connector to the universal that it latches into place. interface (fig. 2, item 4). Rittal CMC III leak sensor, 15 m... -
Page 9: Installing The Electronic Unit With The Provided Bracket On A System Chassis
The provided bracket is used for installation of the elec- tronic unit on a system chassis. Place the leak sensor on the bracket from above and latch it similar to the installation on the enclosure frame. Rittal CMC III leak sensor, 15 m... -
Page 10: Connecting The Electronic Unit
– Continuous red light: Invalid measured value. Note: No settings can be made as long as the up- date process is running. The sensor update is complete when the following con- ditions have been fulfilled: Rittal CMC III leak sensor, 15 m... -
Page 11: Operation
5 seconds. ware version, are also displayed. You should have such information available, in particular to permit fast trouble- Tab. 2: Multi-LED flashing codes shooting of queries with Rittal. Rittal CMC III leak sensor, 15 m... -
Page 12: Leakage
"Position" parameter. Depending on the liquid's conductivity (e.g. with water/glycol mixtures or heavily contaminated water), the lengths of the zones may vary. Rittal CMC III leak sensor, 15 m... -
Page 13: Storage And Disposal
7 Storage and disposal Storage and disposal Storage If the device is not used for a long period, Rittal recom- mends that it be disconnected from the mains power supply and protected from damp and dust. Disposal Since the leak sensor consists mainly of the "housing"... -
Page 14: Technical Specifications
5%...95% relative humidity, non-condensing Protection category of electronic unit IP 30 to IEC 60 529 CAN bus (RJ 45) Inputs and outputs Sensor cable interface Operation/signals LED display OK/Alarm/CAN bus status Tab. 7: Technical specifications Rittal CMC III leak sensor, 15 m... -
Page 15: Customer Service Addresses
9 Customer service addresses Customer service addresses For technical queries, please contact: Tel.: +49(0)2772 505-9052 E-mail: info@rittal.de Homepage: www.rittal.com For complaints or service requests, please contact: Tel.: +49(0)2772 505-1855 E-mail: service@rittal.de Rittal CMC III leak sensor, 15 m... - Page 16 ◾ Climate Control ◾ IT Infrastructure ◾ Software & Services You can find the contact details of all Rittal companies throughout the world here. www.rittal.com/contact RITTAL GmbH & Co. KG Auf dem Stuetzelberg · 35745 Herborn · Germany Phone +49 2772 505-0...
