Summary of Contents for GAS MAD PB2

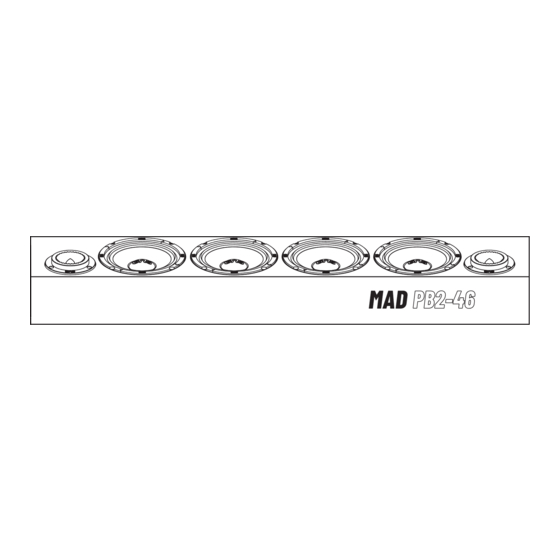

- Page 1 PB2-46 / PB2-48 MADE TO PLAY LOUD...
- Page 2 We are the NO BULLSH!T car audio brand! Every single product with the GAS logo on it is born out of passion, the same that has driven us for two generations and that will keep us rolling up to your...
-
Page 3: Table Of Contents
TABLE OF CONTENT SAFETY....................UNPACKING..................DIMENSIONS....................SPECIFICATIONS................. MAD PB2-46..................MAD PB2-48..................FEATURES..................... Amplify your sound................Sound that’s loud and clear? Heck yeah!........... Your music, supercharged..............More is louder................... Customize your madness..............HOW TO......................Install pre-loaded enclosure............. TROUBLESHOOTING..................No power/sound................Distortion.................. -
Page 4: Safety
There is a first time for everything, if you need help - ask a friend or contact your local GAS AUDIO POWER dealer/installer. We want you to experience your product’s MAD sound, but we don’t want you to injure yourself or others. -
Page 5: Unpacking
UNPACKING Unboxing your new MAD product is an experience, make sure that the enclosure and all the accessories are included in the packaging: Loaded enclosure Manual Vented covers Brackets Screws AST connectors (2 pcs) (4 pcs) (12 pcs) (2 pcs) DIMENSIONS PB2-46 PB2-48... -
Page 6: Specifications
Below you’ll find the specifications that has been checked and tested in our workshop. The specifications aren’t directly connected with the sound pressure in the vehicle, and shouldn’t be used as the sole indicator for comparison with other enclosures. The MAD PB2 SPL enclosures are loaded with MAD PM2 midrange speakers and PT2 tweeters. -
Page 7: Mad Pb2-48
SPECIFICATIONS MAD PB2-48 MAD PM2-84 Pre-loaded Component SPL midrange Component SPL enclosure Woofer size 8” (200mm) Size 4x8” (200mm) Nominal impedance 4 Ohm 2x1” (25mm) 125W Power RMS MDF board Enclosure material Power RMS 600W Power MAX 250W Power MAX 1200W Freq. -
Page 8: Features
With the MAD PB1 enclosures, we unleashed something wild – the AST, Active Smart Termi- nal. It was such an awesome feature that we added it to the MAD PB2 enclosures as well. By unplugging the AST connector in the speaker terminal, you can hook up separate amplifiers –... -
Page 9: How To
HOW TO INSTALL PRE-LOADED ENCLOSURE Before installing your brand new pre-loaded enclosure, make sure that you have everything you need. Have the right tools ready, and make sure that you have the necessary know- ledge/skill to perform the installation properly. Preparation and knowledge is crucial! Since the enclosure is pre-loaded with MAD midrange speakers and tweeters, the installa- tion is very simple. - Page 10 HOW TO INSTALL PRE-LOADED ENCLOSURE Use the appropriate settings on your amplifier/dsp when connected to your SPL enclosure. If you remove the AST connector, you have several setting options you can use. Some include active crossover settings and some are pure full range amplifier setups. See the recommend crossover settings below.
- Page 11 HOW TO INSTALL PRE-LOADED ENCLOSURE Make sure that the enclosure doesn’t move around while driving, use the included mounting brackets and screws to securely fasten it in position. Mount two brackets on each side of the enclosure.
-
Page 12: Troubleshooting
When all of the above has been tested/looked over, and all is as it should be but the pre- loaded enclosure still has no power/sound or other problems, consult your local GAS AUDIO POWER dealer/installer... -
Page 13: Warranty & Disposal
Alternative arrangements may apply in other jurisdictions. GAS Audio Power is a global partner of the European Mobile Media Association, an organization that focus on promoting the custom made mobile media installations to consumers. -
Page 14: The Gas World
THE GAS WORLD You’ve entered the world of GAS. We aim to please, and we’ve made sure to have products made for you. No matter what stage of the LOUD-addiction you might find yourself in, there is a GAS product to fill your need. - Page 15 THANKS FOR JOINING GAS AUDIO POWER! GAS AUDIO POWER and SHAKY are registered trademarks by Winn Scandinavia AB and is protected by relevant laws and jurisdictions such as Copyright and Trademark laws. Winn Scandinavia AB Elementvägen 15, 70227 Örebro, Sweden www.winnscandinavia.com Winn Scandinavia AB reserves for possible typos, factual or numeric errors that may have been printed on any products, package designs, user manuals and/or other included accessories.
