Summary of Contents for Dewenwils MLC18

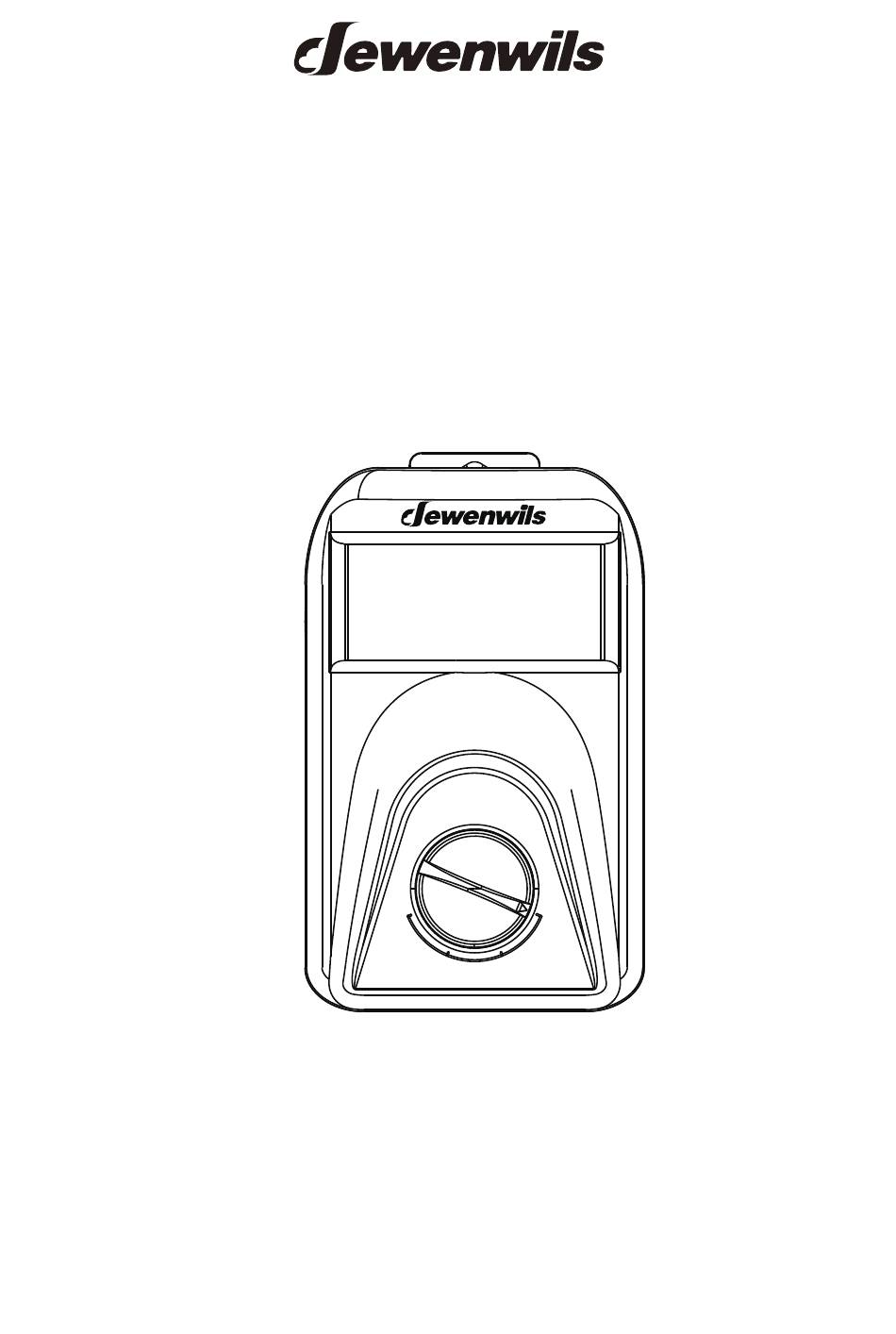

- Page 1 Remote Control Transmitter Model: MLC18 [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly...
- Page 2 DC 5V power supply port Please use a power adapter with 3.5 x 1.35mm DC head Time Delay Dial Key Pairing Button Battery Function case Knob Switch Function Introduction The motion/light sensor transmitter has the following 4 modes. Motion Detection Mode: The receiver will be on whenever the sensor detects motion, whether in day or night.
- Page 3 Note: To activate the desired function, please rotate the knob switch to the corresponding letter inscribed for that mode. Method of using time delay function When using the "PIR" or "NTM" mode, toggle the "Delayed" switch (on the back of the transmitter) to select the amount of time that the receiver can remain on after the last detected motion, 1 minute, 5 minutes, 15 minutes or 30 minutes are available.
- Page 4 Mounting the Transmitter Bracket 1.Install the transmitter mounting bracket in the desired location with the included screws. Note: The installation height of the transmitter from the ground should not be less than 3ft and not more than 7ft.
- Page 5 2.Select the desired mode. 3.Hang the transmitter on the fixed bracket. Replacing Battery If you find that the receiver does not work properly or the transmitter does not work, please replace the batteries. Recommended to use "NiMH batteries".
- Page 6 Note: 1.Do not mix old and new batteries. 2.Do not mix Alkaline Batteries, Super Heavy Duty Batteries (Zinc-Carbon) or Rechargeable Batteries (NiCd, NiMH, etc.) together. Specifications: - Transmission Frequency: 433.92MHz - Remote Control Distance: 100 ft (Free Area) - Detecting Angle:120° - Detection distance:20ft FCC STATEMENT This device complies with Part 15 of the FCC rules.
- Page 7 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. ISEDC Warning: This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
