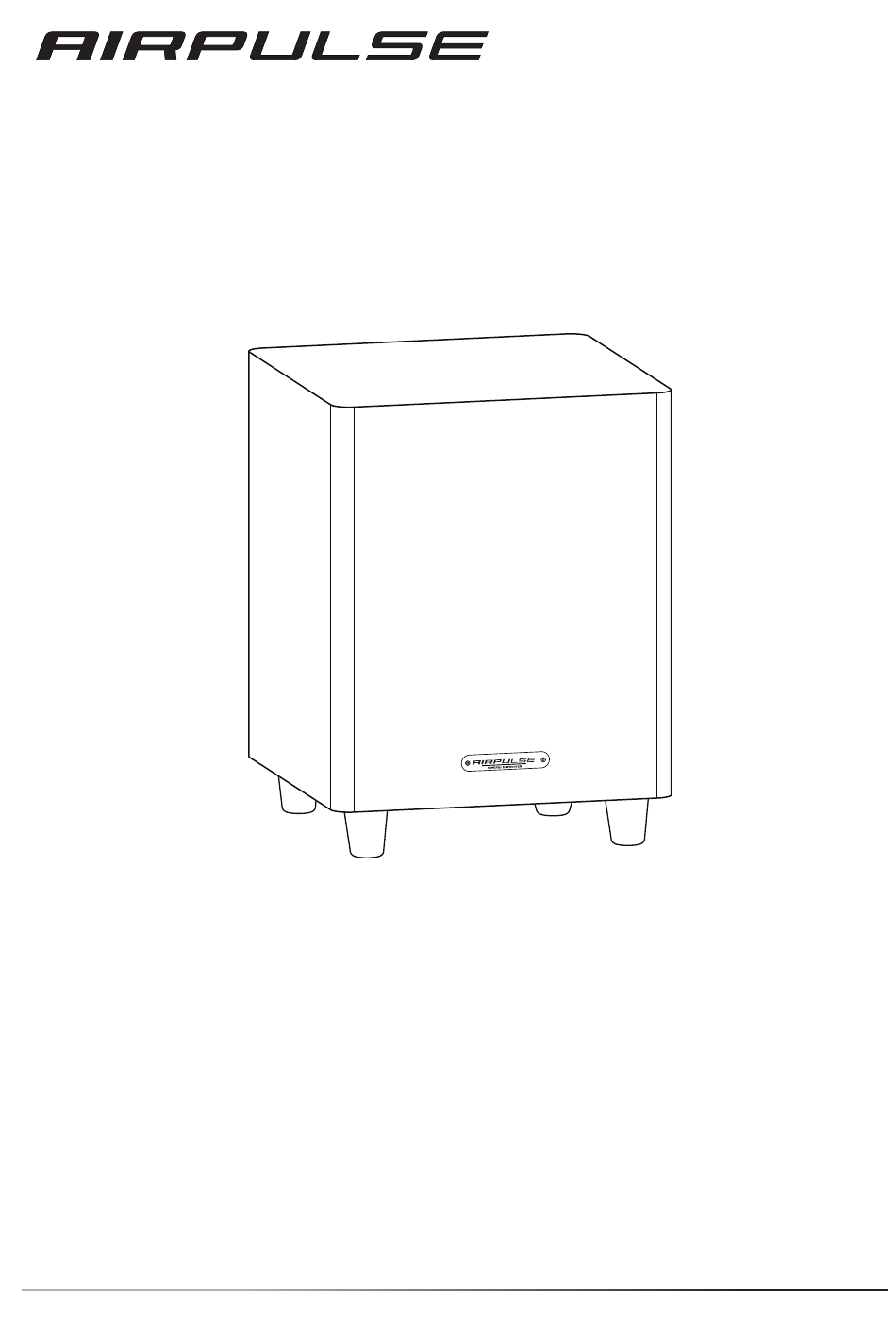

- Page 1 SW 8 POWERED SUBWOOFER User manual...
-
Page 2: Important Safety Instruction
Important safety instruction Please read the following contents carefully before turning on your equipment; and follow the instructions below. Keep this information around for future reference. 1. Please read the instructions carefully. Keep it in safe place for future reference. 2. - Page 3 Important safety instruction 22. When the following symptoms occur, please turn off power switch and disconnect from power source: ‒ Power cable or plug is worn or damaged. ‒ Abnormal odor or smoke is detected. ‒ Small objects falling inside the speaker. ‒...
-
Page 4: Box Contents
Box contents After opening the box, you will see the following product and accessories. Please contact customer service if there is any discrepancy. Subwoofer x1 RCA audio cable x1 Power cable x1 User manual x1 Note: Images are for illustrative purposes only and may differ from the actual product. -
Page 5: Speaker Placement
X=Y=Z Figure 1 1. AIRPULSE subwoofer is designed to deliver punchy bass and give you a stunning audio experience for all your movies and music. 2. For the optimum performance, place the subwoofer in a corner of the same wall as that of the front speaker to enhance bass output;... - Page 6 Connect the "SUBWOOFER PRE OUT", "SW OUT" or "SUB OUT" port on the preamplifier/ av receiver/active speaker to the "LINE IN" port on SW8 using the RCA audio cable. Before connection, please ensure that SW8 is connected to a power source and the "VOLUME"...
- Page 7 You can for 20 minutes. The indicator light turns red. try adjusting the crossover point until it works In standby mode, SW8 will auto-enter work well with other speakers. mode when a signal is input. The indicator 4.
- Page 8 Specifications/statement Amplifier System: Class-D Amplifier Power Output: 160W(RMS), 320W(Peak) Speaker Driver: Powerful Down-firing 8 inch, Overhung coil, High-Excursion Transducer Frequency Range: 25Hz~160Hz Crossover Control: Continuously Adjustable Crossover Point (30Hz~160Hz) Phase Control: 0°-180° Input Mode: RCA Line In Input (L/LFE,R) Voltage Input: AC 100-240V~ 50/60Hz Enclosure Type: Bass Reflex Product Dimension(W×H×D): 278 x 377 x 295 mm Net Weight: 9.8 kg...
-
Page 9: Troubleshooting
Troubleshooting When the speaker cannot work properly, please follow the instructions below to conduct an initial check. 1. Check that the power cable is properly connected and the power switch is turned on. 2. Check that the audio source and connecting cables are normal. 3. - Page 10 Dongguan Platinum Audio Systems Co., LTD. No. 2 East Industry Road, Songshan Lake National High-tech Industrial Development Zone, Dongguan 523808 China www.airpulseaudio.com Printed in China...
