Summary of Contents for Wasserstein Wireless Chime
- Page 1 Wireless Chime USER MANUAL...

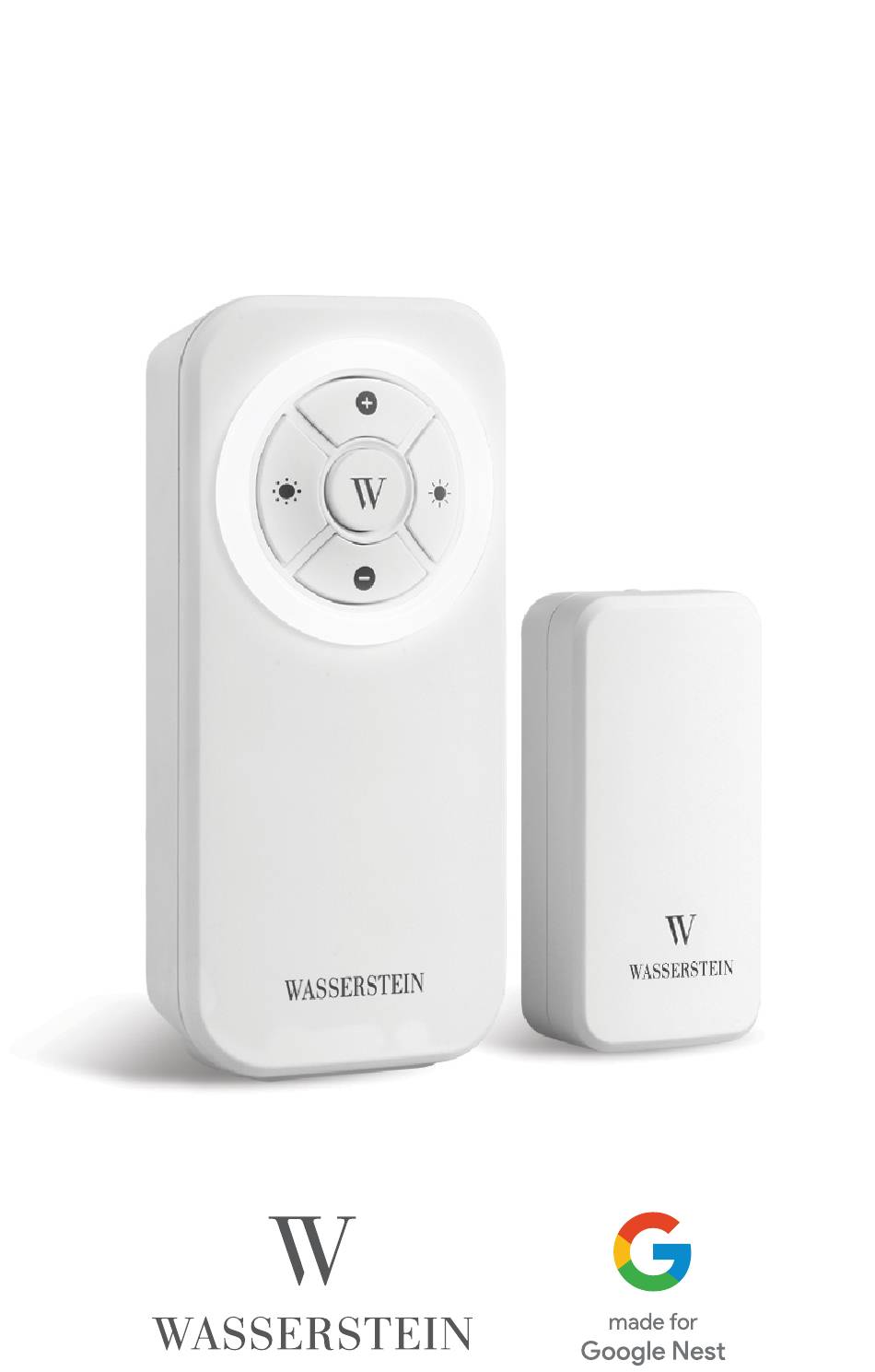

- Page 2 Overview The Wasserstein Wireless Chime gives you a custom wireless alert system for your Google Nest Doorbell (battery and Google Nest Doorbell (wired), and features seven pre-loaded tunes and four LED colors to choose from. In the Box 1 x USB power adapter...
-
Page 3: Safety Information
Before touching any wires, use a voltage sensor to check that the power is actually off – the sensor will alert you if the wires are still live. Understanding the Wireless Chime 1. Halo LED / notification 2. LED dimmer 3. -
Page 4: Installation
Understanding the Wired Transmitter 1. Wired transmitter 2. Spade connector wire 3. AC power adapter connector Installation Installing the Doorbell Transmitter Choose a location that's nowhere near a heat or water source, and that won't be hit when opening the door. 1. - Page 5 3. Screw the transmitter back cover onto the wall using 2 screws (3 x 20 mm) if necessary. AC OUT SWITCH Note: It is recommended that the transmitter be placed under a covered area or inside the house at the height between 4.5 ft to 6.0 ft.
- Page 6 4. Connect the spade connector to the back of the Nest Doorbell. AC OUT SWITCH 5. Connect the AC power terminals to the AC power adapter connector (there is no polarization). Note: Transmitter is powered by 16-24 VAC AC adapter, the AC adapter needs to meet the safety standard requirements of IEC 62368-1, and the output power needs to meet the PS2 level.
- Page 7 Google Nest Doorbell Setup 1. Make sure the Google Nest Doorbell is connected to Wi-Fi. 2. Go to "Settings" by clicking the gear symbol on the top right. 3. Go to "Doorbell". 4. Make sure Ring indoor chime is "ON". 5.
-
Page 8: Setup And Operation
Installing the Wireless Chime Rotate clockwise until you hear the click to lock the plug in place. Plug the chime into an AC outlet. Setup and Operation Transmitter and Receiver Pairing 1. Press and hold both of the brightness adjustment buttons for 3 sec until the LED is blinking. - Page 9 2. Press the doorbell button / smart doorbell. 3. Wireless Chime will be paired with the Wireless Transmitter. Changing the Tune Press the center button (Wasserstein logo) to change the doorbell tune. (7 tunes) Page 8...
- Page 10 Adjusting the Volume • Press the +/- button to adjust the volume level you want. (6 levels) • To mute the chime, press the - button until you cannot hear the ring. Changing the Halo LED Color Press and hold the both center & volume down buttons to change the halo LED color.
- Page 11 Additional Chime(s) • You can connect up to 5 wireless chimes with a single transmitter. Simply plug in the additional wireless chime to the wall outlet and follow the pairing instructions. • Each chime can be set with its own tune and LED color.
- Page 12 3. Place the tip of the wire 4. Squeeze the stripping in the appropriate notch. tool’s handles gently. 5. Spin the tool around the 6. Slide the stripper off wire to ensure you’ve cut the wire to pull off the the insulation.
- Page 13 3. Bend the wire at the scored line and break off the insulation. AC Adapter Connector CAUTION: Always wear protective gear and use proper tools and techniques to avoid injury. 1. Open up the notches 2. Insert the tinned cable on the connector into one side.
-
Page 14: Battery Warning
Battery warning CAUTION: Risk of fire or explosion if the battery is replaced by an incorrect type. WARNING: – replacement of a battery with an incorrect type may defeat a safeguard; – disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, may result in an explosion;... -
Page 15: Fcc Caution
FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference,and 2. This device must accept any interference received, including interference that may cause undesired operation. - Page 16 RF Warning for Mobile Device This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IC Caution RSS-Gen Issue 5 April 2018 & CNR-Gen 5e édition Avril 2018 English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic...
- Page 17 French: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1.L’appareil ne doit pas produire de brouillage; 2.L’appareil doit accepter tout brouillage radioélectrique subi,même si le brouillage est susceptible d’en compromettre le fonctionnement.
-
Page 18: Specifications
433 MHz Wireless range: 650 ft 32 °F to 104 °F Operating Temperature: 5 wireless chimes Pair max wireless chimes: Wireless Chime 5.08 x 2.36 x 1.39 in Product dimension: 5.0 oz Product weight: ABS plastic Material: USB power adapter... - Page 19 Get More Support Scan the QR code below or email us at contact@wasserstein-home.com. This product has been certified by Wasserstein to meet Google’s compatibility standards. Google is not responsible for the operation of this product or its compliance with any applicable safety or other requirements.
