Description
The 1100DI provides two-way, supervised communication using 900
MHz frequency hopping-spread-spectrum technology. The 1100DI
In-Line Wireless Receiver provides up to 32 wireless zones for
XT30/XT50 Series Version 102 or higher. The compact design allows
the receiver to be installed anywhere along the panel keypad bus,
such as next to a keypad. The wireless system is designed so only
one 1100 receiver is used per panel.
Compatibility
•
XT30 Series panels
•
XT50 Series panels using firmware Version 102 or higher
Included Components
•
One Model 1100DI Wireless Receiver with housing
•
One 4-wire harness
•
Hardware pack
Installing the Wireless Receiver
Selecting a Location
A location should be selected that will be centrally located between the 1100 Series transmitters used in the
installation. Install the receiver away from large metal objects. Mounting the receiver on or near metal surfaces
impairs performance. Do not use shielded wire between the panel and receiver. When selecting the proper mounting
location and operation, refer to the LED Survey Operation section.
Mounting the Receiver
1. Remove the transmitter cover by pushing the button on the end of the cover and gently pulling upwards.
2. Connect the receiver to the panel keypad bus using the supplied 4-wire harness. Route the wires through the
opening in the back of the housing. See Figure 2.
3. Place one screw into the mounting hole location as shown in Figure 2 or use the optional double-sided tape and
secure the housing to the surface.
Note: For UL listed installations, do not use the optional double-sided tape.
4. Snap the cover back in place.
Programming the Panel
Refer to the XT30/XT50 Series Programming Guide (LT-0981) as needed. In System Options, program the House Code
(1-50). In Zone Information, program the wireless zones.
1100DI In-Line Wireless Receiver

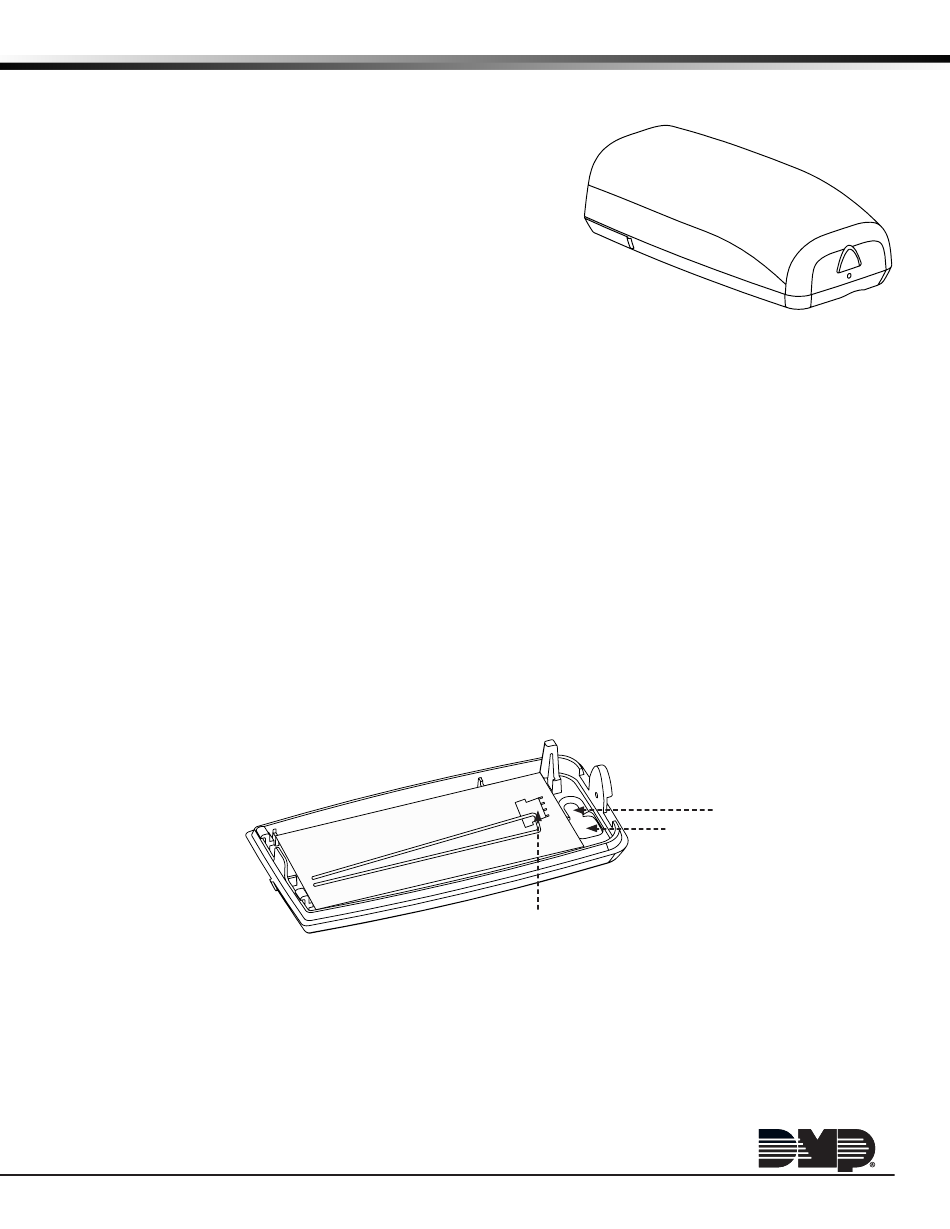

Figure 2: Mounting the Receiver
INSTALLATION GUIDE

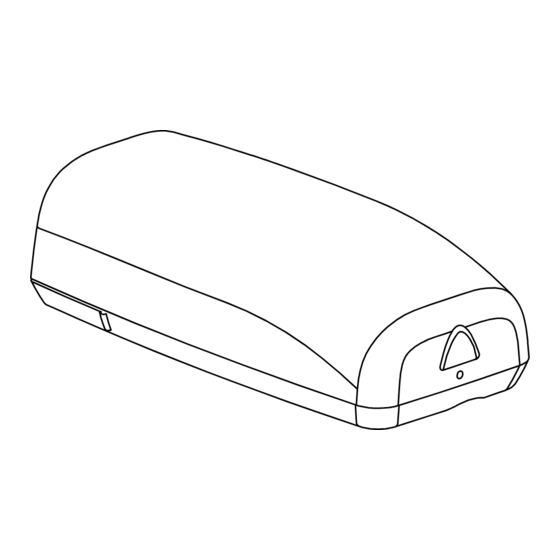

Figure 1: 1100DI Receiver Housing
Wire
Opening
Bus
Header
Mounting
Hole
Advertisement
Table of Contents
Troubleshooting
Summary of Contents for DMP 1100DI
- Page 1 INSTALLATION GUIDE 1100DI In-Line Wireless Receiver Description The 1100DI provides two-way, supervised communication using 900 MHz frequency hopping-spread-spectrum technology. The 1100DI In-Line Wireless Receiver provides up to 32 wireless zones for XT30/XT50 Series Version 102 or higher. The compact design allows the receiver to be installed anywhere along the panel keypad bus, such as next to a keypad.
- Page 2 Refer to the panel programming guide for complete wireless programming information. Note: When any wireless input zone for a particular address is programmed (Ex: 11-14 = Addr 1), the 1100DI responds to the panel for this address. Other devices, such as keypads or hardwired zone expanders, cannot use this address.
- Page 3 • The tamper switch is being pressed or released too quickly • The tamper switch or other part of the transmitter is broken LED stays on constantly and is dim • The transmitter battery is almost dead • The transmitter is broken Digital Monitoring Products 1100DI Wireless Receiver Installation Guide...
- Page 4 • Verify what zone numbers are assigned as wireless zones and check the address settings of other device(s) connected to the keypad bus to ensure no duplicate addresses have been used. • Verify the 1100DI LEDs are operating as listed in 1100DI LED Operation on the previous page. • Verify transmitters have batteries correctly inserted.
- Page 5 L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Digital Monitoring Products 1100DI Wireless Receiver Installation Guide...
- Page 6 FCC Part 15: CCKPC0111 U.S. Patent No. 7,239,236 Industry Canada: 5251A-PC0111 800-641-4282 IN TRUSIO N • FIRE • AC CE SS • N ETWO R KS www.dmp.com 2500 North Partnership Boulevard Designed, Engineered and Springfield, Missouri 65803-8877 Assembled in U.S.A.
