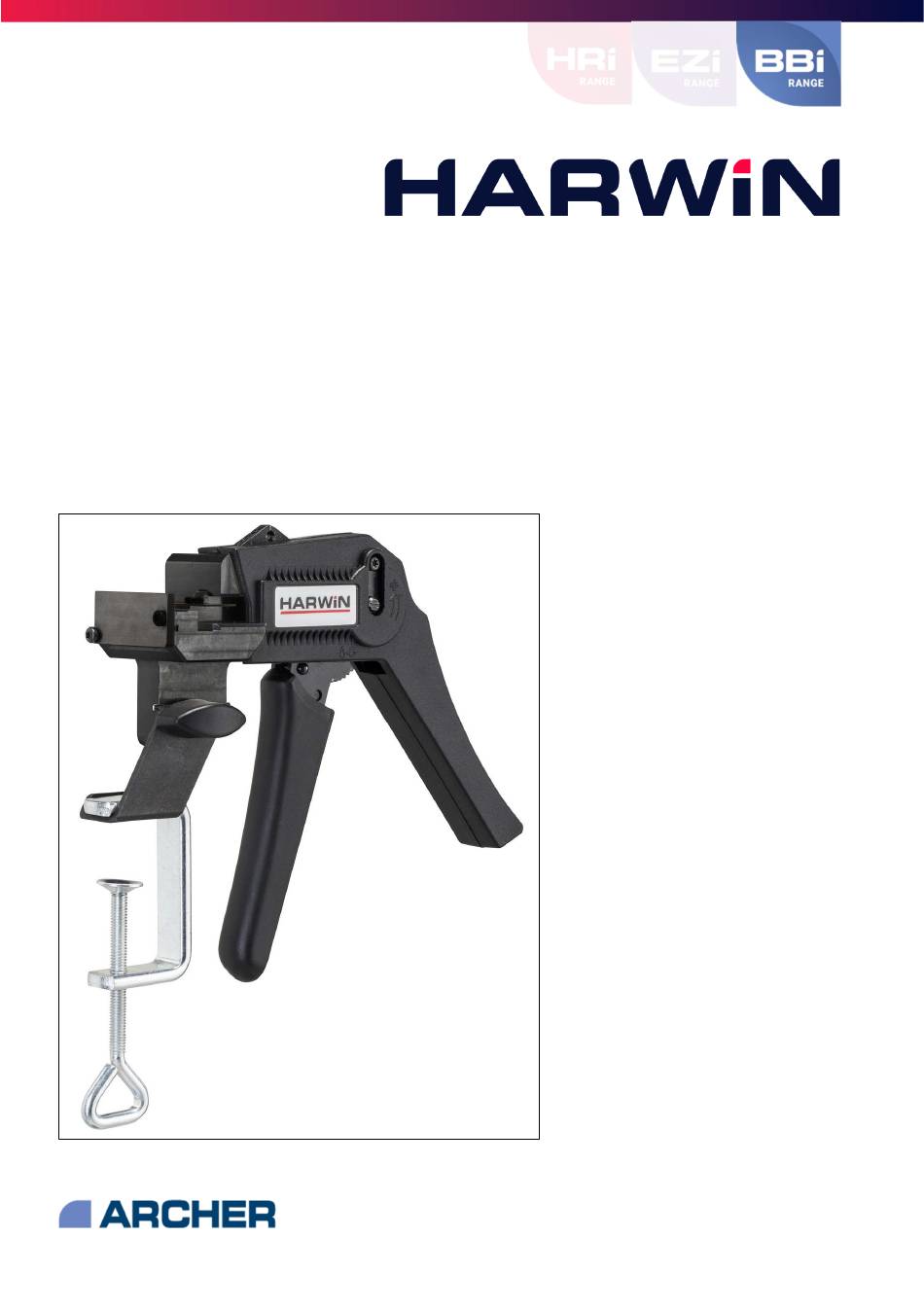

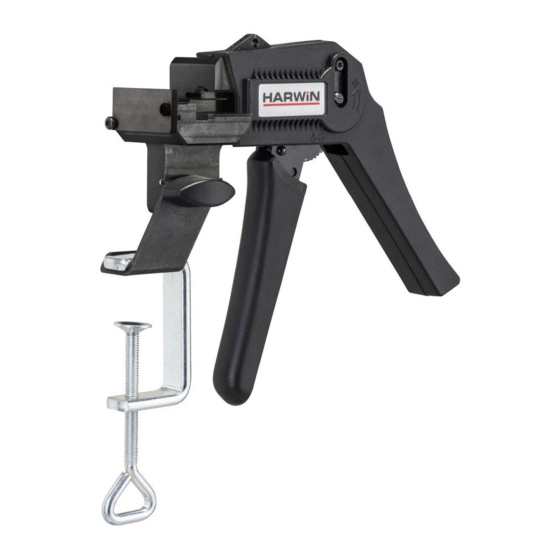

- Page 1 Instruction Sheet IS-43 Archer M50 IDC Termination Hand Tools // HARWIN.COM...
- Page 2 IS-43 Instruction Sheet for Archer M50 IDC Termination Hand Tools CRIMP CONTACT INFORMATION These IDC Termination Hand Tools are intended for use with the following Kontrol 1.27mm pitch cable connectors: Z50-020 ......M50-330XX42 (Archer M50 1.27mm Pitch IDC Connector, Female) ...
- Page 3 IS-43 Instruction Sheet for Archer M50 IDC Termination Hand Tools ASSEMBLY PROCEDURE Ensure that the crimp tool is on the correct tool setting, depending on which component you are crimping. Female is setting 27 & Male is setting 3 (Mark 5). The settings are counted from the number 1 mark going around the dial clockwise.
- Page 4 IS-43 Instruction Sheet for Archer M50 IDC Termination Hand Tools Select a suitable ribbon cable for the connector. Harwin recommends: Wire Type ....... UL2678 Wire Pitch ....... 0.635mm Wire Thickness ....30AWG Feed the cable into the back of the connector, ensuring it is the correct width and cut to the desired length.
- Page 5 At regular intervals, check the assembly tool jaws for wear or damage, and inspect sample connector assemblies for form and function. If you have any questions about this instruction sheet, or the Archer M50 IDC range of connectors, please contact technical@harwin.com.
